NZXT Kraken Z63 RGB - 280mm AIO Liquid Cooler
NZXT

NZXT Kraken Z63 RGB - 280mm AIO Liquid Cooler

NZXT Kraken Z63 RGB combines a 280 mm aluminium radiator with 2 140 mm fans and a copper cold plate. Its 2.36-inch, 320 × 320 colour LCD adds a visible focal point, while NZXT CAM provides pump and display configuration for a compatible desktop build.

SKU: RL-KRZ63-R1

Regular price 86.000 KWD

or 4 payments of 21.500 KWD with

Pay with card & save

KNET Mastercard Gateway
82.000 KWD Save 4.000 KWD

Overview

NZXT KRAKEN Z63 RGB

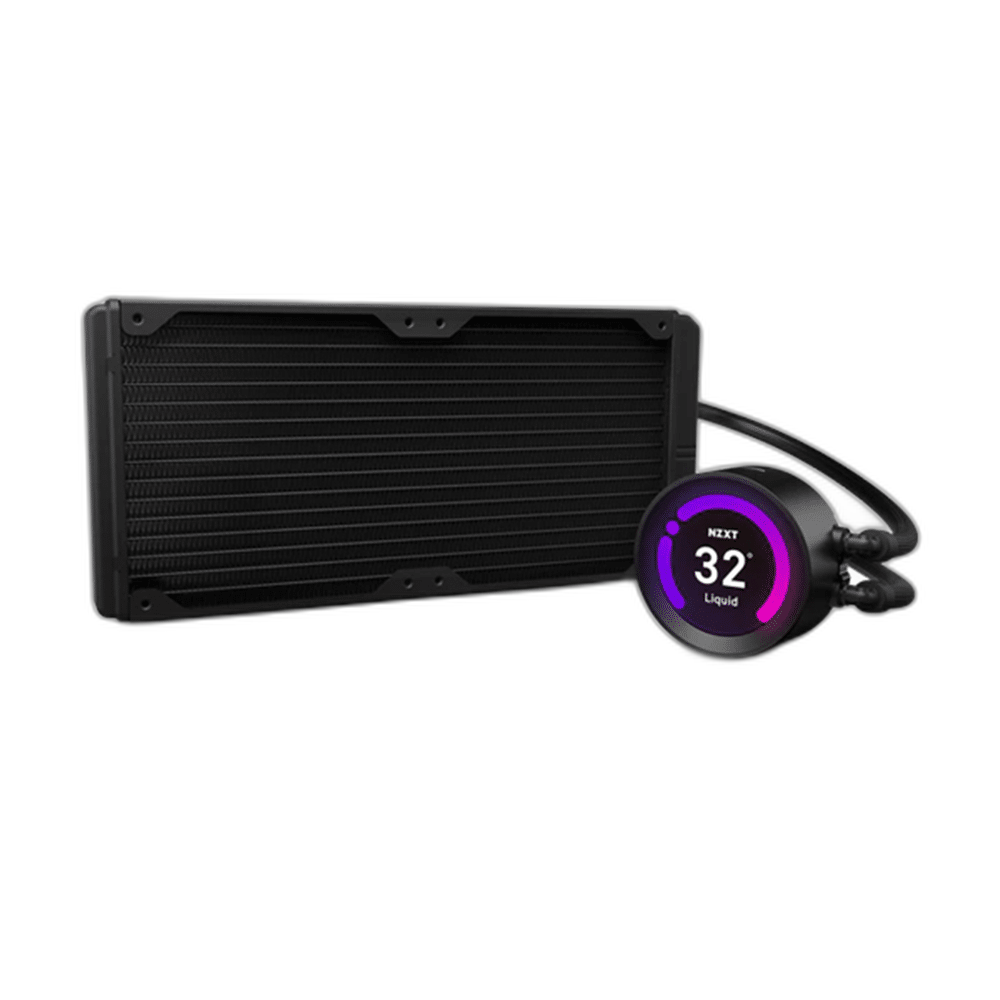

NZXT Kraken Z63 RGB — product view

280 mm Cooling with a Personalised LCD

NZXT Kraken Z63 RGB combines a 280 mm aluminium radiator with 2 140 mm fans and a copper cold plate. Its 2.36-inch, 320 × 320 colour LCD adds a visible focal point, while NZXT CAM provides pump and display configuration for a compatible desktop build.

280 mm

Radiator class

2 × 140 mm

Included fans

2.36 inch

Pump display

400 mm

Sleeved tubes

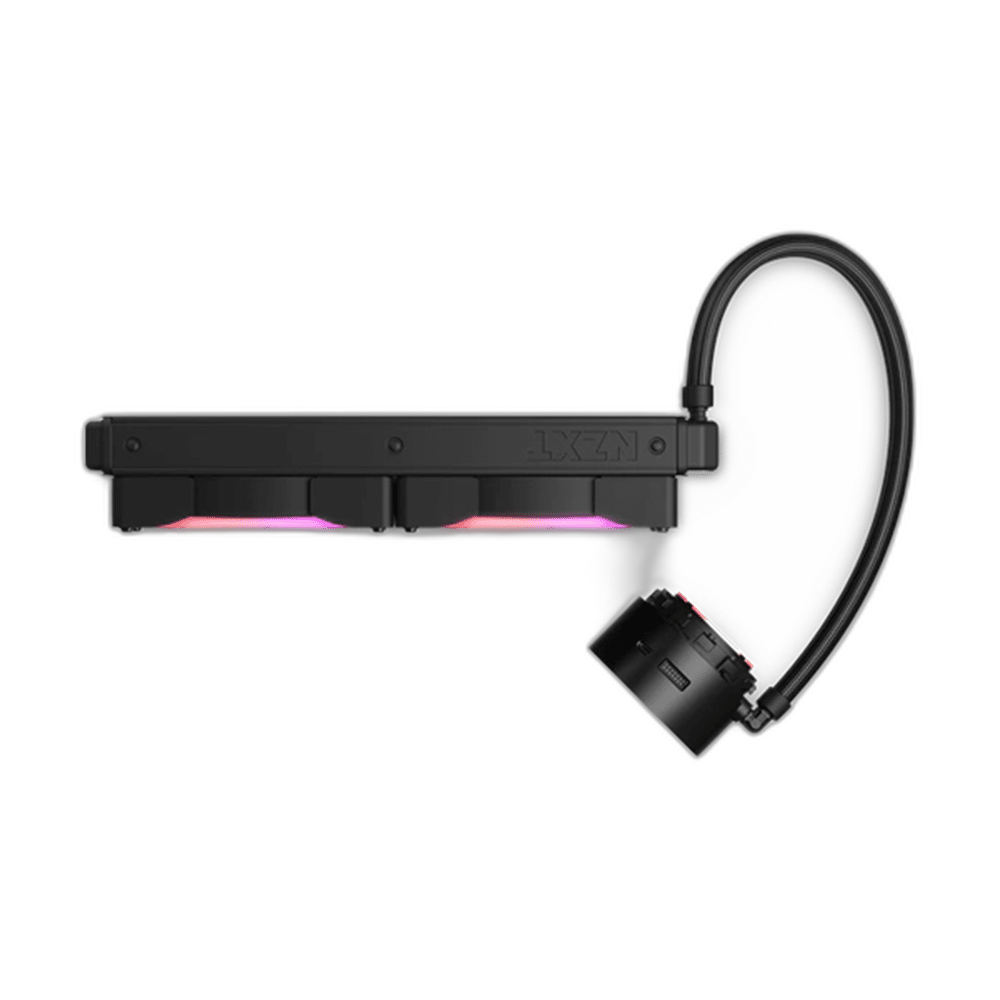

NZXT Kraken Z63 RGB — product view

280 mm Radiator Cooling

The 280 mm radiator uses 2 140 mm fans to move air through its aluminium fin assembly. The radiator measures 143 × 315 × 30 mm. Check the full radiator and fan clearance against the intended case mounting position, including the space around memory, motherboard heatsinks and the graphics card.

A Colour LCD on the Pump

The pump carries a 2.36-inch colour LCD with a 320 × 320 resolution. NZXT CAM supports display personalisation, making the cooler a useful focal point behind a case window. Choose a display arrangement suited to the system, with the internal USB connection available for software communication.

Aer RGB 2 Fan Lighting

The included 2 Aer RGB 2 140 mm fans combine PWM speed control with separate NZXT RGB connections for their illuminated rings. Each fan carries eight LEDs. Route the lighting chain and fan power leads carefully so lighting control and cooling operation are connected to their respective interfaces.

Pump, Power and Software Connections

The Asetek Gen7 pump operates at 800–2,800 RPM, with the manufacturer specifying a ± 300 RPM tolerance. SATA supplies power, and the internal USB 2.0 cable enables NZXT CAM communication. The Z-series breakout provides PWM fan connections for fan control.

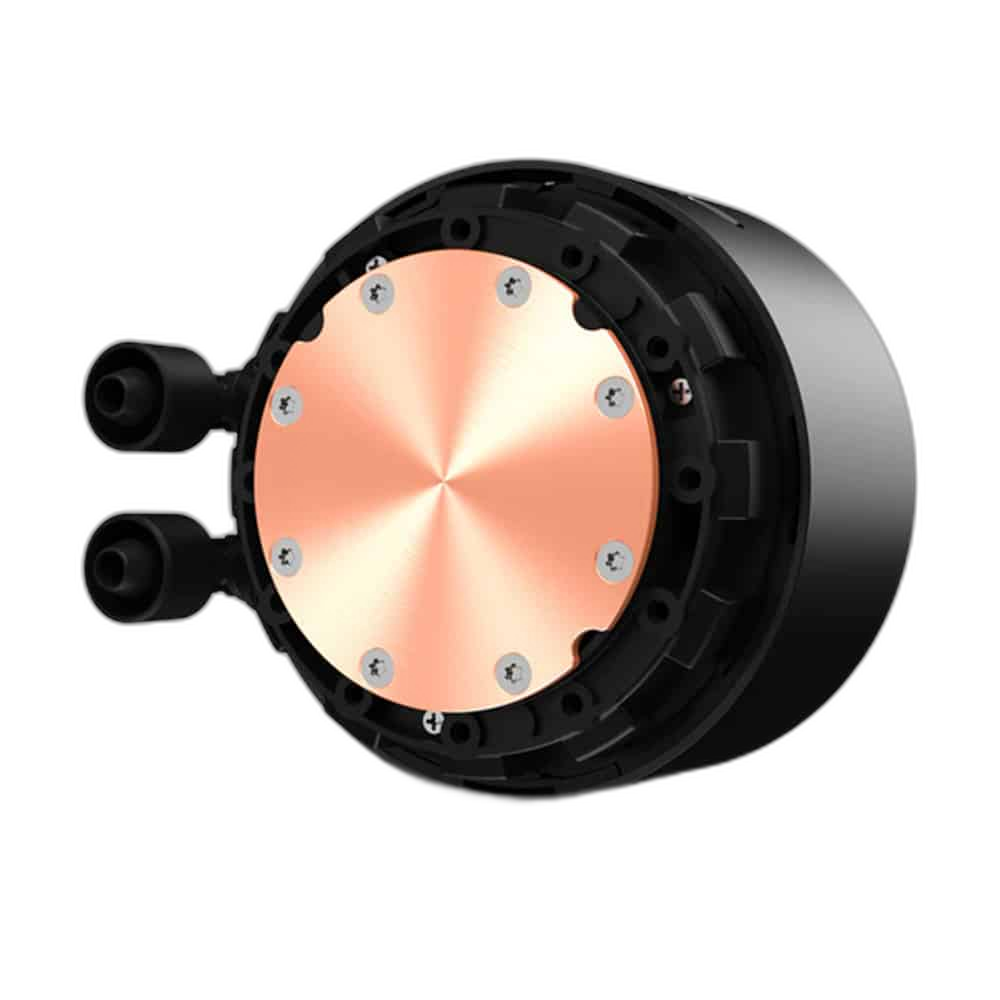

Sleeved Tubes and Copper Contact

A copper cold plate transfers processor heat into the liquid-cooling circuit. The 400 mm rubber tubes use a nylon sleeve, providing room to route the assembly between the CPU socket and radiator position. Arrange the tubes without sharp bends and maintain the required component clearance throughout the installed path.

NZXT Kraken Z63 RGB — product view

Radiator dimensions

143 × 315 × 30 mm

Included fans

2 × 140 mm; Aer RGB 2

Fan speed control

Built-in PWM fan connections

Check Socket and Case Fit

Supports compatible AMD AM4 and Intel LGA 115x/1200 systems. AM5, LGA 1700 and LGA 1851 require the appropriate additional mounting hardware; check the bracket set for the actual unit. Threadripper requires its separate compatible bracket. Confirm both the CPU mounting hardware and radiator clearance before installation. Follow the installation sequence for the actual cooler revision, and keep all pump, USB, fan and lighting cables clear of the fan blades.

Complete Your Workspace

Explore CPU Coolers to compare suitable options and complete your setup.

Frequently Asked Questions

Which radiator size does it use?

280 mm, with 2 140 mm fans.

What is on the pump?

2.36-inch, 320 × 320 colour LCD.

How are fan speeds controlled?

The Z-series breakout provides PWM fan connections for software fan control.

Can it be fitted to AM5 or LGA 1700/1851?

The appropriate additional mounting kit is required. Confirm the mounting hardware supplied with the actual unit before installation.

What connections should I reserve?

A SATA power connection, an internal USB 2.0 header and the appropriate pump tach and fan connections. RGB fan versions also use the NZXT RGB lighting connection.

Build Your Setup with AX Store Kuwait

Explore computers, displays and accessories for your workspace at AX Store Kuwait. For help choosing the right model or checking an accessory, contact AX Store.

THE DETAILS

Technical specifications

Cooling Hardware

Model

NZXT Kraken Z63 RGB

Cooling system

All-in-one liquid CPU cooler

Radiator class

280 mm

Radiator dimensions

143 × 315 × 30 mm

Radiator material

Aluminium

Cold plate

Copper

Included fans

2 × 140 mm; Aer RGB 2

Tube length

400 mm; nylon-sleeved rubber

Pump speed

800–2,800 ± 300 RPM

Power / software connections

SATA power; internal USB 2.0; pump tach

Fan speed control

Built-in PWM fan connections

LCD size

2.36 inches

LCD resolution

320 × 320 pixels

LCD colour

24-bit true colour

Fan speed

500–1500 ± 300 RPM

Compatibility and Installation

Socket compatibility

Supports compatible AMD AM4 and Intel LGA 115x/1200 systems. AM5, LGA 1700 and LGA 1851 require the appropriate additional mounting hardware; check the bracket set for the actual unit. Threadripper requires its separate compatible bracket.

Software

NZXT CAM

Lighting connection

Proprietary 4-pin NZXT RGB

Case requirement

Compatible 280 mm radiator mount and sufficient total clearance
