Wooting 80HE Rapid Trigger Gaming Keyboard, PCR Black

80% Hall-effect analog keyboard in PCR Black with Lekker L60 V2 switches, Rapid Trigger, adjustable actuation and true 8 kHz polling. Features a polycarbonate plate, silicone gasket mount, screw-in stabilizers, Wootility configuration and up to four onboard profiles.

SKU: WK5-US2-L60-BK1

Regular price 103.000 KWD

or 4 payments of 25.750 KWD with

Pay with card & save

97.900 KWD Save 5.100 KWD

Overview

WOOTING 80HE PCR BLACK

Wooting 80HE

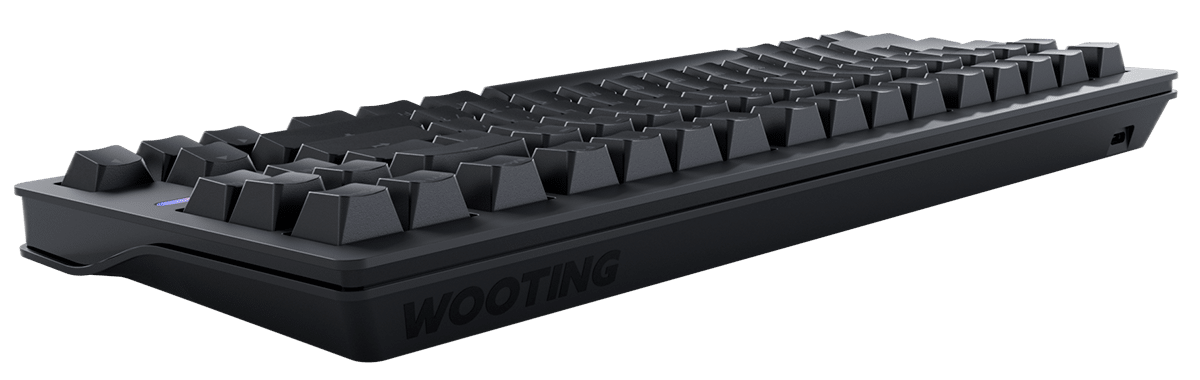

Wooting 80HE combines Hall-effect analog switches, Rapid Trigger and true 8 kHz polling in an 80% layout. This PCR Black configuration uses a recycled-plastic case, a polycarbonate switch plate and a silicone gasket mount. Wootility provides per-key configuration, lighting controls and onboard profiles, letting you arrange the keyboard’s behavior around your games and everyday applications. Explore this model at AX Store in Kuwait.

80% / TKL

Keyboard Size

Hall Effect

Switch Technology

8000 Hz

Maximum Polling

Wired USB

Connection

Analog Hall-Effect Input

Lekker L60 V2 switches use Hall-effect sensing to track how far a key is pressed. This provides the input foundation for adjustable actuation and other analog features. The switches use a linear design, with the manufacturer listing a 40–60 cN spring-weight range. Configure the key behavior in Wootility rather than relying on a single fixed actuation point.

Rapid Trigger and Per-Key Actuation

Rapid Trigger changes activation and reset behavior according to key movement. Adjustable actuation lets you choose the depth that registers an input, with the manufacturer listing settings from 0.1 mm through 4 mm. Tune individual keys for different tasks, then test the selected values in the games and applications you regularly use before saving the configuration.

True 8 kHz Polling

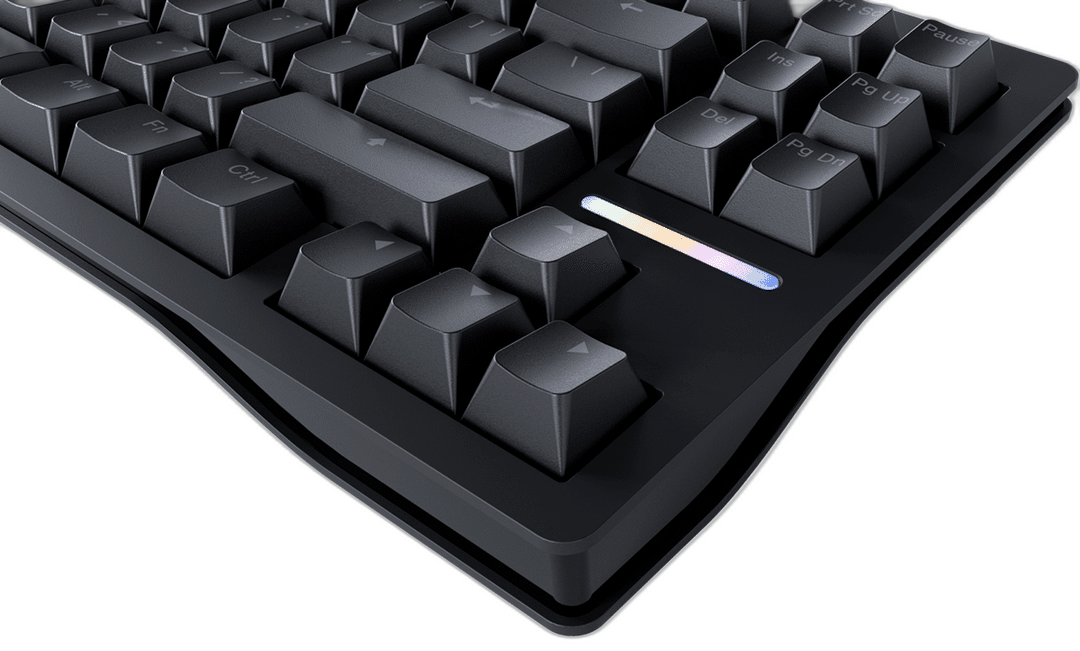

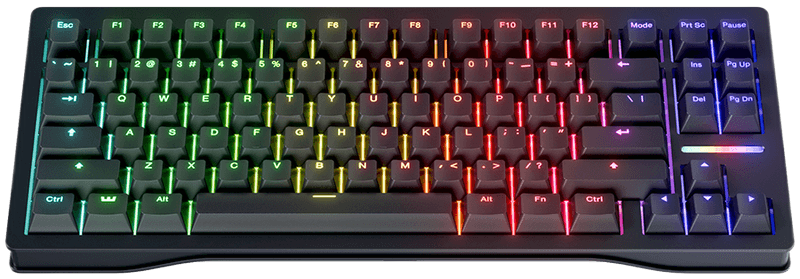

The 80HE supports true 8 kHz polling with synchronized key scanning at the same rate. Wooting identifies Tachyon mode in Wootility as the setting for this performance configuration. An LED bar with ten segments provides a configurable visual element for profiles and supported feature states, alongside the keyboard’s individual key lighting options.

Gasket-Mounted Sound and Feel

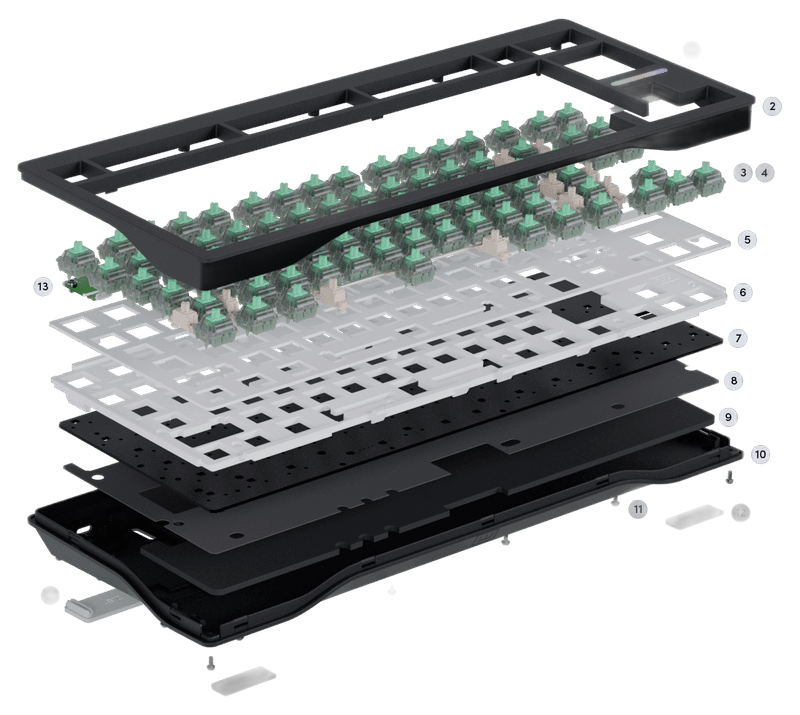

The PCR ABS case is paired with a polycarbonate switch plate, silicone gasket mount and screw-in stabilizers. These construction choices distinguish the standard 80HE from the FR4-plate TenZ edition. The PCR configuration has a published weight of 790 g, giving you a practical reference when comparing it with the heavier zinc-alloy version of the same keyboard family.

Wootility and Onboard Profiles

Wootility is available as an application or through a supported browser. It provides remapping, function-layer configuration, lighting controls and analog features such as Dynamic Keystroke and Mod Tap. Up to four onboard profiles can remain saved on the keyboard, so you can keep separate configurations for the different tasks and games that share your desk.

Wired Setup in an 80% Footprint

The keyboard measures 346 × 142 mm and connects through a detachable 2 m USB-C to USB-C cable, with a USB-C-to-A adapter included. The 80% layout retains dedicated navigation and function areas while reducing width compared with a full-size board. Arrange the cable and mousepad around that footprint, then choose the profile you want for the session.

Wooting 80HE Rapid Trigger Gaming Keyboard, PCR Black — product image

Choose Your Keyboard and Mouse Arrangement

Choose the layout, switch type, key language and connection that suit your work and games. Measure the space left for mouse movement; a different keyboard format changes the desk arrangement as well as the keys available. Compare related options such as Logitech G PRO Tenkeyless Mechanical Keyboard, Black or ASUS ROG Azoth 75% Wireless DIY Mechanical Gaming Keyboard, Black, keeping the exact model and configuration in the decision. For the wider setup, explore Logitech G PRO X2 SUPERSTRIKE Wireless Gaming Mouse and check the connection, size or mounting requirements before pairing accessories. Browse the Wooting range at AX for more choices.

Wooting 80HE Setup Choices

Choose the layout, switch type, key language and connection that suit your work and games. Measure the space left for mouse movement; a different keyboard format changes the desk arrangement as well as the keys available. Explore ARTISAN NINJA FX ZERO Gaming Mousepad – SOFT/XSOFT, XL/XXL, ARTISAN NINJA FX TYPE-99 SOFT XL Mousepad – Matcha, Pulsar Superglide V3 Glass Mousepad - Type S.

Frequently Asked Questions

Which switches and case does this configuration use?

Lekker L60 V2 switches. PCR ABS — Black.

What key-input features are supported?

Hall-effect analog input; Rapid Trigger; adjustable actuation.

How does it connect?

Wired USB. 2 meter USB-C to C nylon braided cable.

How are its settings configured?

Wootility — application or supported browser.

What is included with this keyboard?

1 x Wooting 80HE; 1 x Wooting Switch and Keycap puller; 3x Spare Lekker L60 V2 Switches + 1x Spare Lekker L45 V2 Switch; 1 x USB-C to USB-C 2.0 cable 2 meter; 1 x Dongle USB-C (♀) to USB-A (♂); 2 x 6 degree feet; 2 x 10 degree feet; 4 x Spare PCBA screws (M2 x 5mm); 7x Additional keycaps: Home, End, Scrl Lk, A1, A2, A3, Wooting logo key; 1 x Postcard.

Build Your Setup with AX Store

Explore computers, displays and accessories for your workspace at AX Store. For help choosing the right model or checking an accessory, contact AX Store.

Compare Keyboard Layouts Before You Order

If a compact keyboard suits your desk, compare the Wooting 60HE v2 and its 60% layout with the larger 80HE layout. If you want to keep a TKL format, explore the SteelSeries Apex Pro TKL Gen 3 Wired. Check the physical layout, switch system and configuration software on the selected model before choosing.
