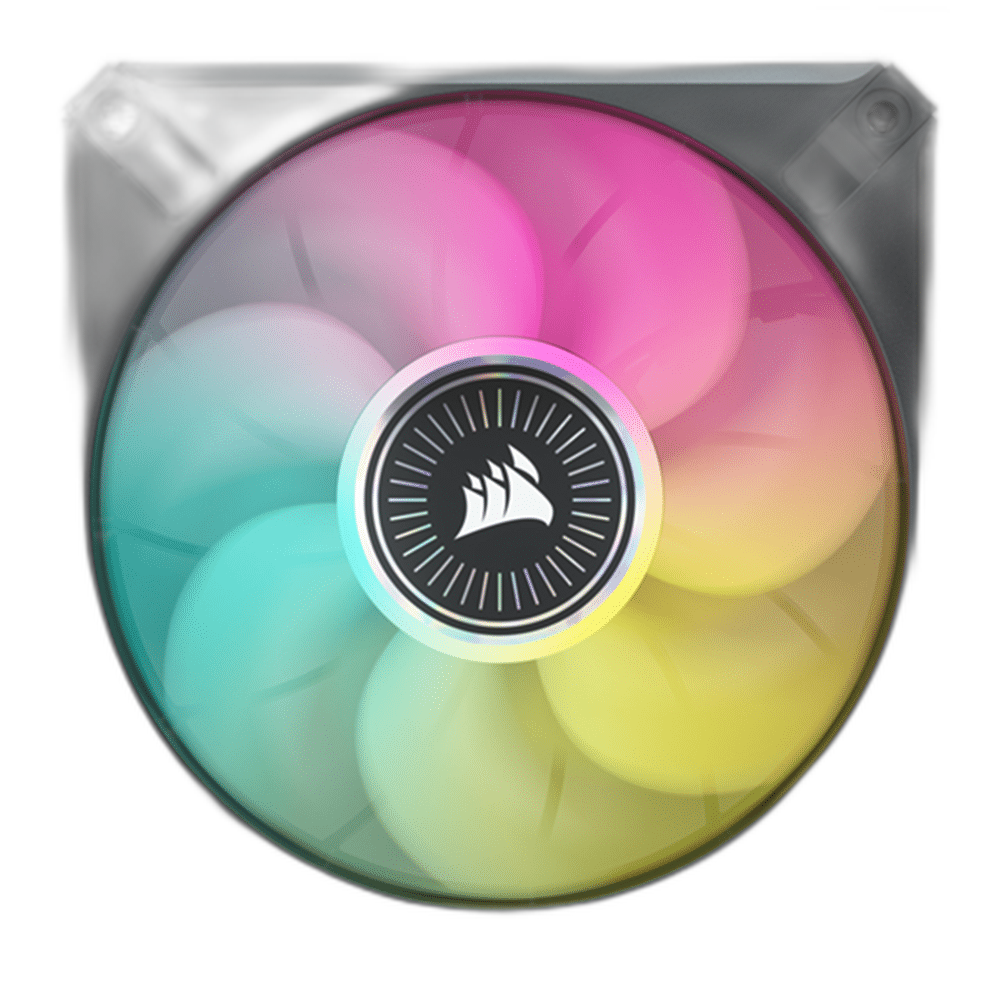

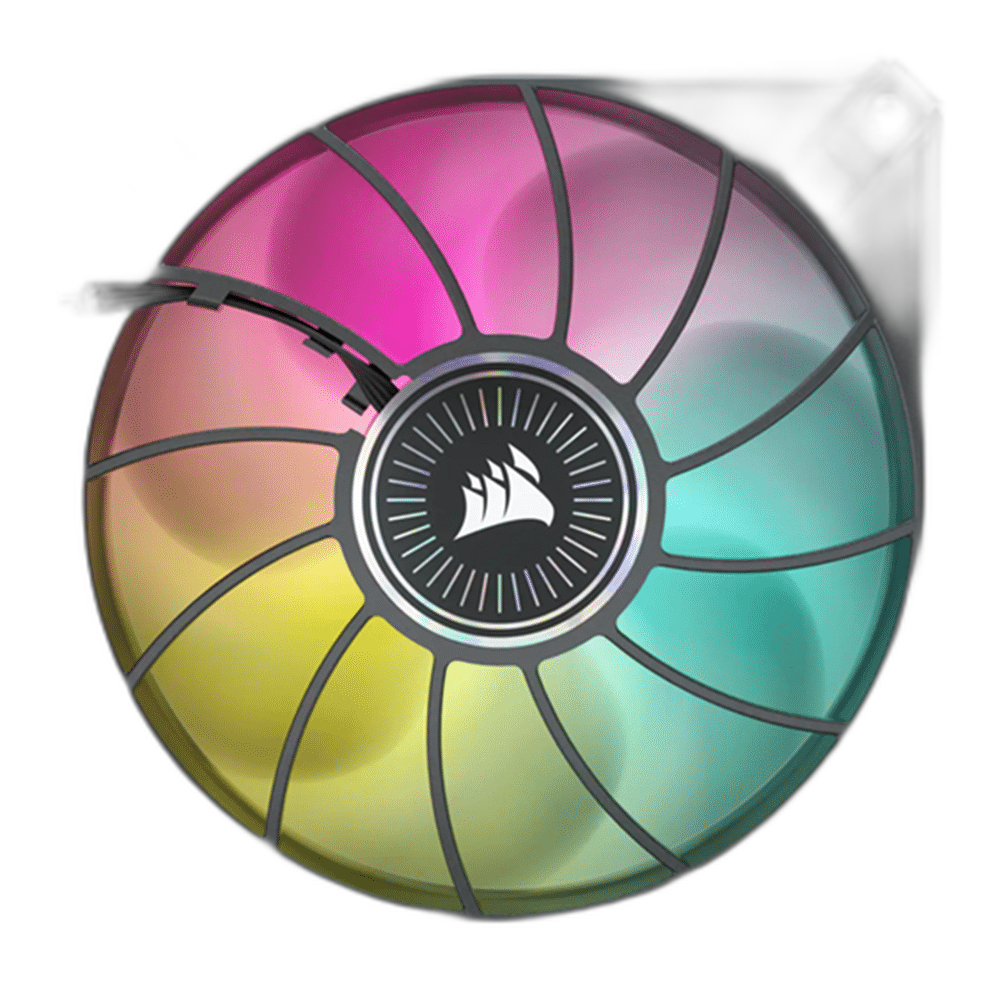

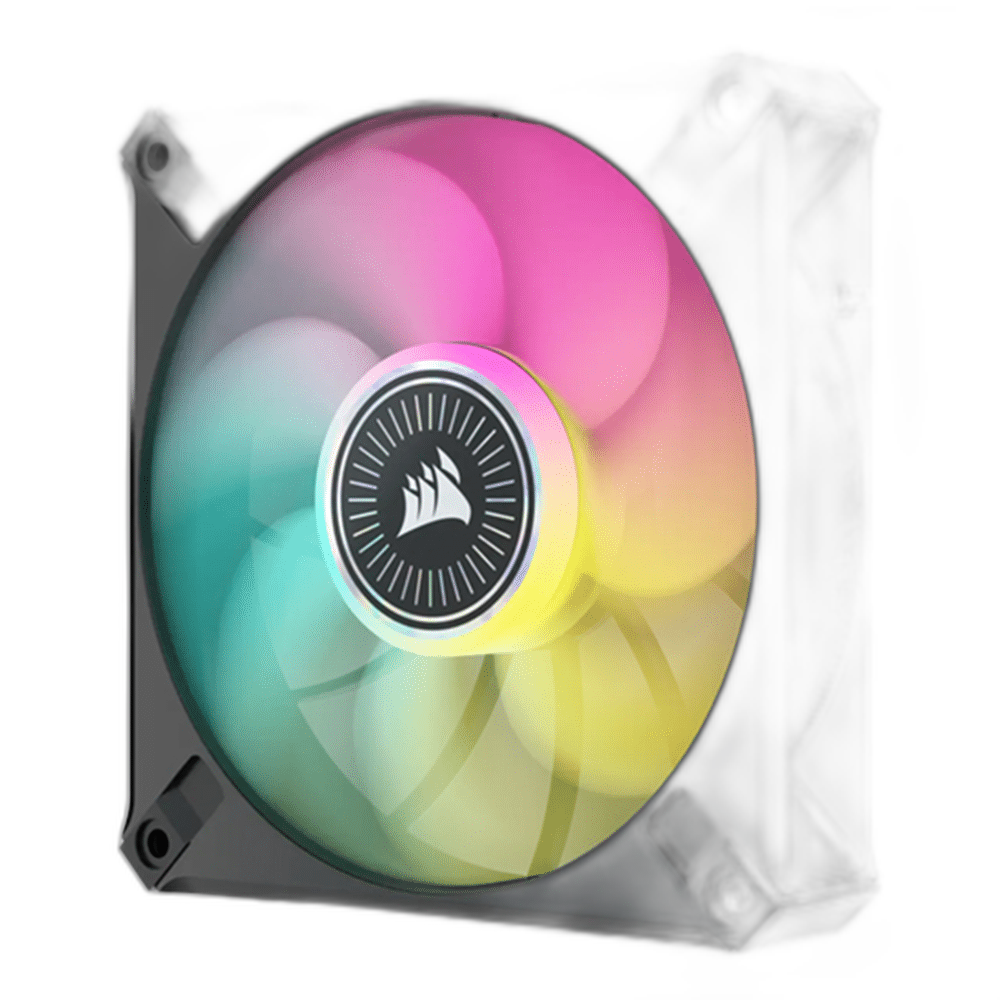

Corsair iCUE ML120 RGB ELITE 120mm Fan, 3-Pack - Black

Fan size

Fans in pack

LEDs per fan

Speed control

120 mm Cooling for the Case

The 120 mm format fits compatible case and cooling mounts, with each fan measuring 120 × 120 × 25 mm. Check the available mounting holes and clearance before fitting the fan. A balanced intake and exhaust arrangement helps the rest of the cooling system use the available airflow effectively.

8 LEDs per Fan

8 individually addressable LEDs provide the lighting for each fan. The illuminated fan design gives a case window a visible focal point and can be coordinated with other compatible lighting products. Choose colours and effects through the appropriate lighting software and controller.

PWM Speed Adjustment

Four-pin PWM fan power allows speed adjustment through a compatible motherboard header or suitable fan controller. 450–2,000 RPM ± 10% is the specified operating range. Build the fan curve around the cooling needs of the system and its noise preference, with each fan lead connected to an appropriate speed-control channel.

Magnetic Levitation and AirGuide

Magnetic levitation bearings reduce friction around the fan’s rotating assembly. CORSAIR AirGuide vanes help direct the airflow through the fan frame, whether it is used for case ventilation or a compatible radiator position. Mount each fan securely and arrange the airflow direction to suit the complete cooling layout.

Lighting Control Included

This three-fan kit includes an iCUE Lighting Node CORE for RGB control through CORSAIR iCUE. It uses internal USB 2.0 communication and SATA power. Fan speed remains a separate PWM connection; Lighting Node CORE controls lighting rather than replacing the motherboard fan-speed headers.

Fans in pack

3

Fan dimensions

120 × 120 × 25 mm

Lighting connector

CORSAIR RGB

How many fans are in the pack?

3 120 mm fans.

How is speed controlled?

Through the separate four-pin PWM fan connection, using an appropriate motherboard header or fan controller.

Is an RGB controller included?

An iCUE Lighting Node CORE lighting controller is included.

Are speed and lighting on the same connection?

No. Fan speed and RGB lighting use separate connections. Connect each to the appropriate header or controller.

Which size and clearance should I check?

120 × 120 × 25 mm per fan, plus clearance for cables and the intended case mounting position.
