Elgato

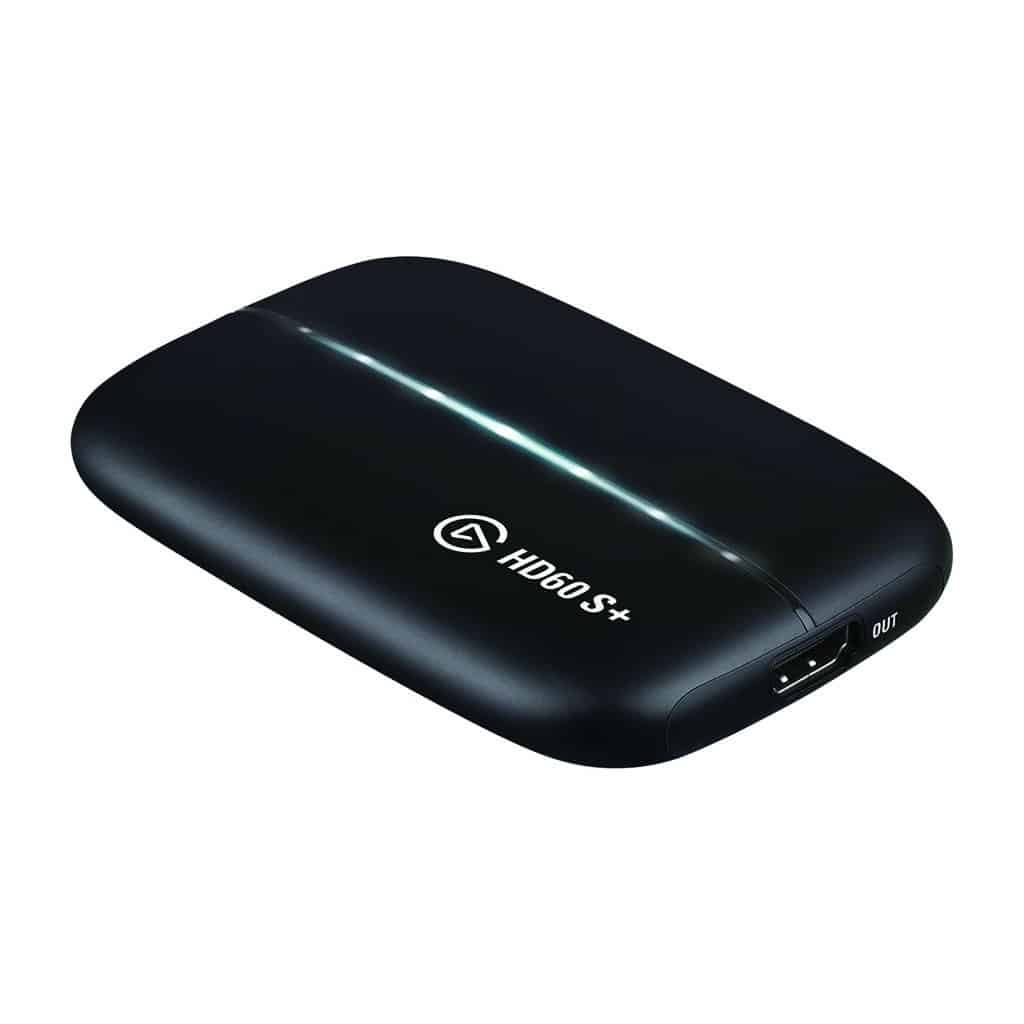

Elgato HD60 S+ Game Capture with 4K60 HDR10

Elgato HD60 S+. HD60 S+ connects an unencrypted HDMI source to your computer over USB 3.0. Pass a 4K60 HDR10 signal through to your display while capturing gameplay at supported recording resolutions.

SKU: 10GAR9901

Regular price 72.500 KWD

or 4 payments of 18.125 KWD with

Pay with card & save

69.000 KWD Save 3.500 KWD

Overview

ELGATO HD60 S+

Keep playing while your computer captures

HD60 S+ connects an unencrypted HDMI source to your computer over USB 3.0. Pass a 4K60 HDR10 signal through to your display while capturing gameplay at supported recording resolutions.

4K60 HDR10

Maximum passthrough

4K30

Maximum capture mode

1080p60

Full HD capture mode

USB 3.0

Host interface

Separate playback from recording

HDMI passthrough supports up to 2160p60 HDR10. Recording supports 1080p60 or 2160p30, so a 4K60 display signal does not mean 4K60 capture. Check the actual computer, software and selected input before the session, then make a short test recording with the intended source.

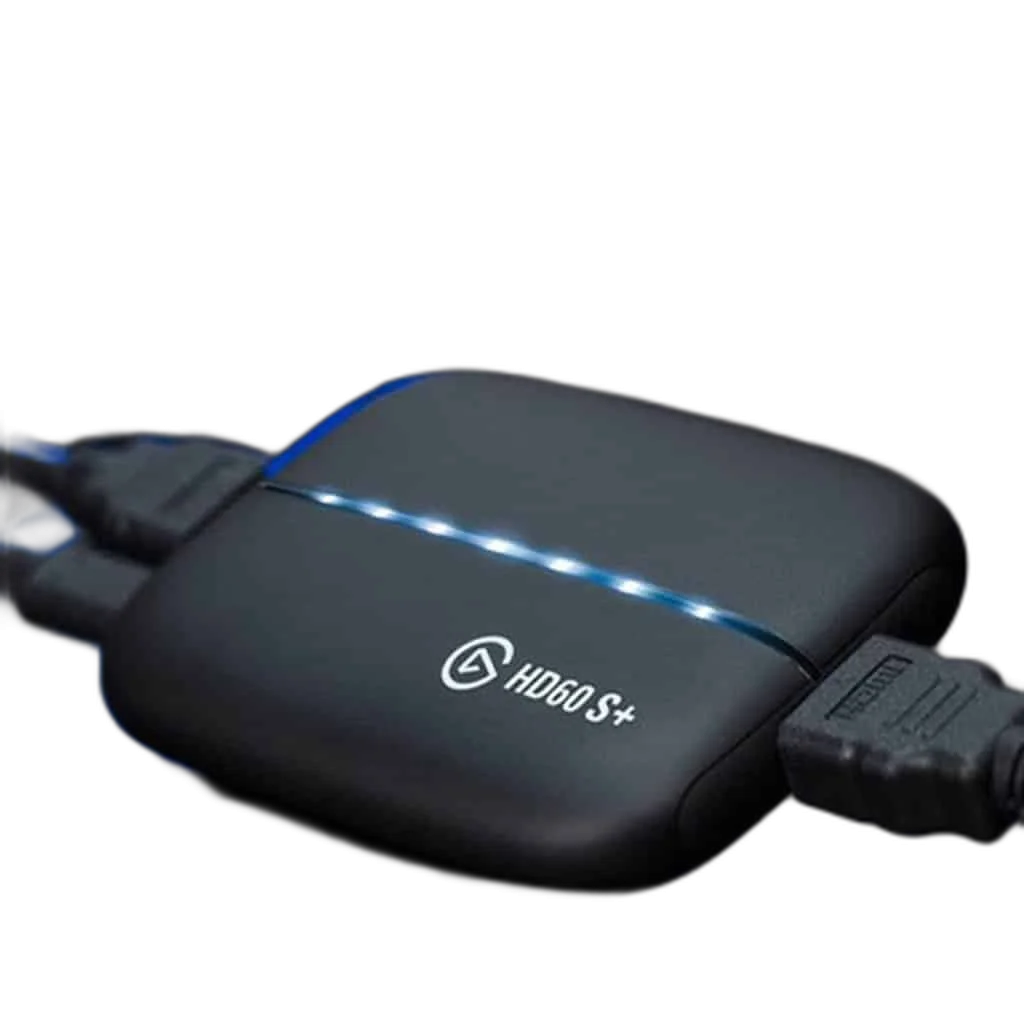

Connect game audio and video

HDMI input and output sit alongside USB-C and a stereo 3.5 mm line input. Use compatible capture software on a suitably equipped Windows PC or Mac.

Choose the Host Connection Before the Source

Connect to a suitable USB 3.0 port on the supported computer. Use the correct data connection rather than a charge-only cable, then select the capture device in compatible recording software. The computer and application must support the format actually supplied by the HDMI source.

Keep Capture and Display Routing Distinct

HDMI passthrough sends a compatible source to the gaming display while the computer captures video. The passthrough limit and capture format are separate specifications. Choose a supported combination for the source, display, cable and software instead of treating a high-resolution display signal as proof of the recording format.

Plan the Commentary Audio Separately

A compatible USB microphone provides a direct commentary input to the recording computer. HDMI source audio and microphone commentary remain separate sources to balance in the application. Use suitable monitoring headphones and a short test recording to confirm which signals the audience actually hears.

Build the Scene Around the Actual Inputs

Frame the camera or gameplay source, choose the recording format and check the complete signal path before starting the session. A Stream Deck can add supported software actions, while mounting hardware and microphones serve separate production tasks. None of those accessories replaces the capture device’s required host connection.

Complete Your Workspace

Choose a microphone for the recording path and suitable monitoring headphones. Stream Decks and mounting accessories add optional control and positioning. The recommendations are alternative setup choices; check the exact generation, connection and supporting mount.

Frequently Asked Questions

Is this an internal or external capture device?

It is an external USB capture device for a compatible Windows PC or Mac with the required USB connection.

What is the highest listed capture mode?

HD60 S+ supports 2160p30 or 1080p60 capture; its 4K60 HDR10 passthrough is a separate capability.

Can it capture protected streaming-service video?

The specified input is unencrypted HDMI. HDCP-protected content is not a supported capture source.

Are cameras, microphones and HDMI accessories included?

Use the exact package list for this product. Cameras, microphones and other scene equipment are separate purchases unless expressly included; Cam Link camera connections need the matching HDMI cable and separate camera power.

Does a microphone connect to an HDMI input?

A microphone needs its own appropriate recording connection. A suitable USB microphone can provide computer commentary alongside video capture; an HDMI input is not an XLR microphone preamp.

What should I check before going live?

Confirm the source format, device selection, recording computer requirements and commentary routing. Make a short test and review both picture and sound before the full production.

Build Your Setup with AX Store Kuwait

Explore computers, displays and accessories for your workspace at AX Store Kuwait. For help choosing the right model or checking an accessory, contact AX Store.
