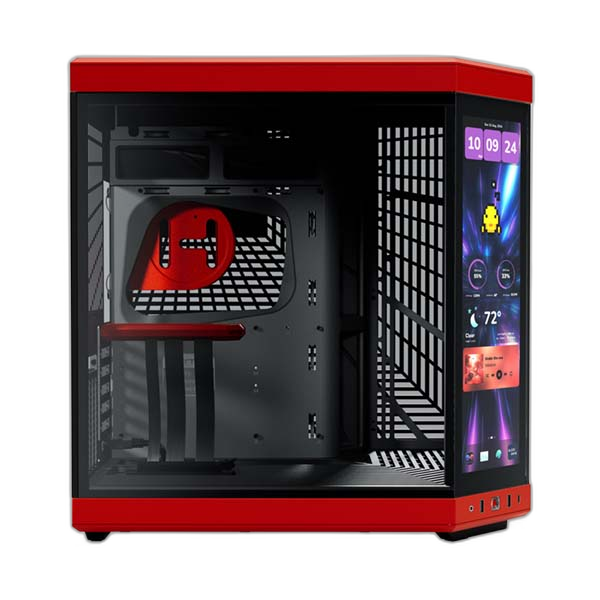

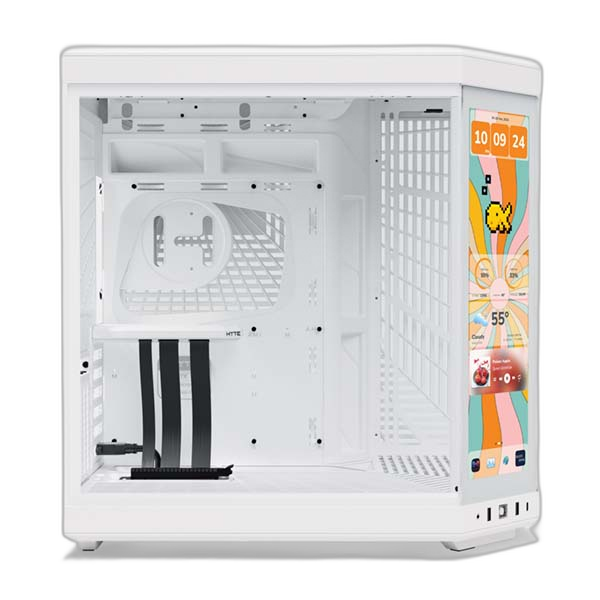

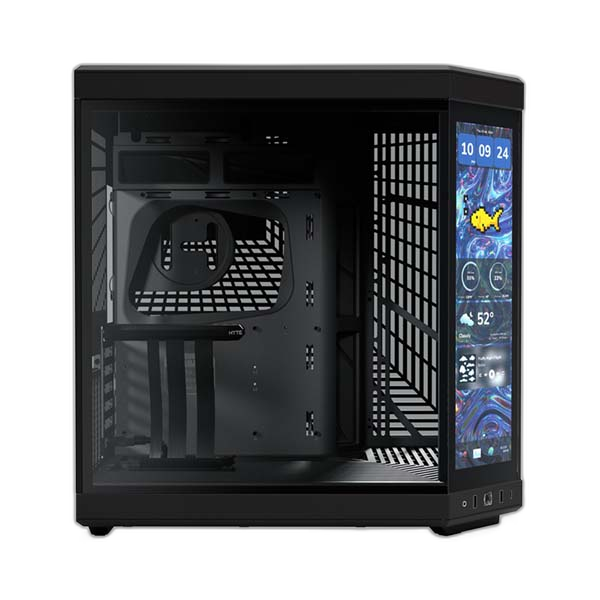

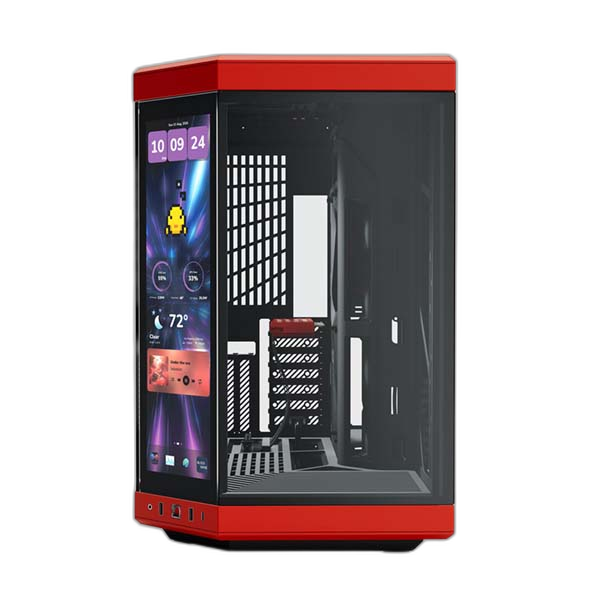

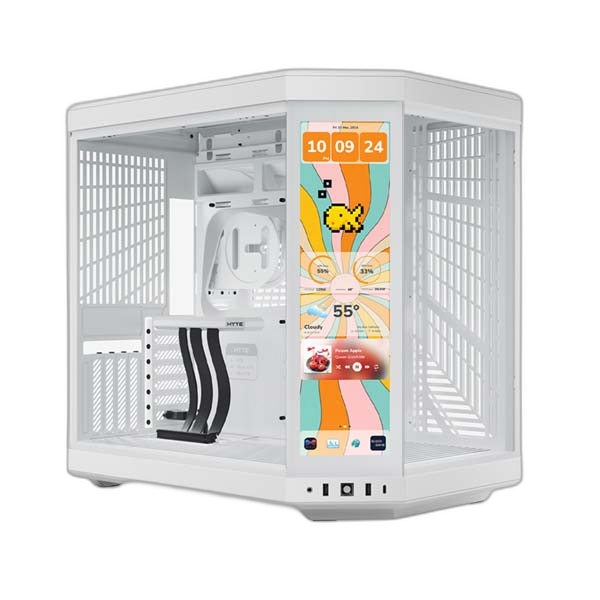

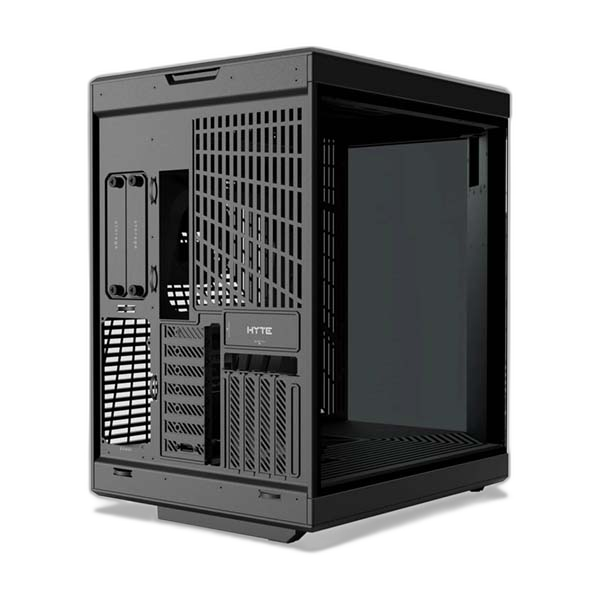

HYTE Y70 TOUCH INFINITE 14.5 Inch IPS Touchscreen Case
The HYTE Y70 Touch Infinite 14.5-inch combines a capacitive IPS touchscreen with the Y70 dual-chamber case layout. This screen version provides 688 × 2560 resolution at 60 Hz with five-point touch, alongside a supplied PCIe 4.0 x16 riser for the vertical graphics card.
Color
Regular price
147.000 KWD
or 4 payments of 36.750 KWD with
Pay with card & save
139.900 KWD
Save 7.100 KWD
Overview
HYTE Y70 TOUCH INFINITE 14.5-INCH
HYTE Y70 Touch Infinite 14.5-Inch
The HYTE Y70 Touch Infinite 14.5-inch combines a capacitive IPS touchscreen with the Y70 dual-chamber case layout. This screen version provides 688 × 2560 resolution at 60 Hz with five-point touch, alongside a supplied PCIe 4.0 x16 riser for the vertical graphics card. Explore this model at AX Store in Kuwait.
14.5-inch
IPS touchscreen
688 × 2560
Display resolution
60 Hz
Display refresh rate
5-point
Capacitive touch
The Case Design
A 14.5-inch IPS capacitive touchscreen occupies the corner display area beside the panoramic glass. This version uses 688 × 2560 resolution, a 60 Hz refresh rate and five-point touch. It provides a tall secondary display for compatible dashboards and personal content, configured through the supported HYTE Nexus software arrangement.
Supplied Cooling and Lighting
The screen is rated for 350-nit brightness, a 1,500:1 contrast ratio and 20 ms pixel response time. Connect the required display, USB and power leads according to the guide, then configure the supported screen layout. The touch display serves the visible interface while cooling fans are chosen around the case’s mounting positions.
Radiator and Fan Mounting
Top and side mounting positions support radiators up to 360 mm, with the documented 68 mm top and 125 mm side clearance allowances checked against the full assembly. Lower fan positions support three 120 mm or two 140 mm fans up to 32 mm thick, with a further rear fan position available.
Component Clearance
The Touch Infinite case provides 390 mm GPU length clearance, 105 mm maximum graphics thickness and 180 mm CPU-cooler height clearance. The supplied PCIe 4.0 x16 riser connects the four-slot vertical graphics position. Supported motherboard formats include E-ATX, ATX, Micro-ATX and Mini-ITX.
Access, Storage and Routing
The 470 × 320 × 470 mm dual-chamber body separates the PSU, storage and cable routes from the main hardware display. PSU length clearance is 235 mm, with storage configured as two 3.5-inch drives or four 2.5-inch SSDs. Organise the screen leads alongside the system wiring, leaving the intake and fan paths clear.
Screen version
14.5-inch Touch Infinite; second-generation panel
LCD technology
IPS capacitive touch
Screen resolution
688 × 2560 pixels
Connections and Control
Front connections provide two USB-A ports, USB-C and combined audio, with removable panels and filtering supporting installation and cleaning. Use compatible motherboard headers for the case and touch-display leads. Configure Nexus and the chosen secondary-display arrangement before placing the completed tower where its screen and glass are most visible.
Plan the Component Clearances
Check motherboard format, graphics-card length, cooler height and radiator positions together. Allow space for the power supply and cable routing before selecting the rest of the build. Compare related options such as LIAN LI O11 Dynamic EVO XL Full Tower Case or XIGMATEK Aquarius S Mid Tower Case, keeping the exact model and configuration in the decision. For the wider setup, explore LIAN LI UNI FAN TL LCD RGB 120MM 3-Pack and check the connection, size or mounting requirements before pairing accessories. Browse the Hyte range at AX for more choices.
HYTE Y70 Touch Infinite 14.5-Inch Setup Choices
Check motherboard format, graphics-card length, cooler height and radiator positions together. Allow space for the power supply and cable routing before selecting the rest of the build. Explore Corsair RMe Series RM750e Fully Modular Low-Noise Power Supply.
Frequently Asked Questions
Which screen version is this?
The 14.5-inch second-generation Touch Infinite panel.
What resolution and refresh rate does it use?
688 × 2560 pixels at 60 Hz.
How many touch points are supported?
Five-point capacitive touch.
What is the screen brightness?
350 nits.
Is a graphics riser included?
Yes, a PCIe 4.0 x16 riser.
What GPU length is supported?
390 mm, with the complete card and cable clearance checked during installation.
Build Your Setup with AX Store
Explore computers, displays and accessories for your workspace at AX Store. For help choosing the right model or checking an accessory, contact AX Store.
THE DETAILS
Technical specifications
Case Hardware
HYTE Y70 Touch Infinite 14.5-Inch
Mid Tower
E-ATX / ATX / Micro-ATX / Mini-ITX
14.5-inch Touch Infinite; second-generation panel
IPS capacitive touch
688 × 2560 pixels
60 Hz
5-point
350 nits
1,500:1
20 ms
183 PPI
470 × 320 × 470 mm
PCIe 4.0 x16
390 mm
105 mm
180 mm
235 mm
Top / side: up to 360 mm, with full assembly-clearance checks
2 × 3.5-inch HDD or 4 × 2.5-inch SSD
2 × USB-A; USB-C; combined audio
