LIAN LI O11 Vision-M Micro-ATX Dual-Chamber Gaming Case
LIAN LI O11 Vision-M combines panoramic Micro-ATX Glass with a Hidden-Chamber PWM Fan. The Vision-M presents the motherboard chamber through its glass display while placing the power and cable area in a separate chamber.
Color
Regular price
31.500 KWD
or 4 payments of 7.875 KWD with
Pay with card & save
30.000 KWD
Save 1.500 KWD
Overview
LIAN LI O11 VISION-M
LIAN LI O11 Vision-M
LIAN LI O11 Vision-M combines panoramic Micro-ATX Glass with a Hidden-Chamber PWM Fan. The Vision-M presents the motherboard chamber through its glass display while placing the power and cable area in a separate chamber. Available from AX Store in Kuwait.
410 mm
GPU length clearance
360 mm
Top radiator option
162 mm
CPU-cooler clearance
1 × 140 mm
Included hidden-chamber fan
The Chassis Design
The Vision-M presents the motherboard chamber through its glass display while placing the power and cable area in a separate chamber. This regular O11VMX/O11VMW version measures 419.6 D × 275.1 W × 395.2 H mm and does not include the Digital version’s LCD. Consider its complete exterior dimensions alongside the available desk or floor space, leaving access for the rear cables and the panels used during assembly.

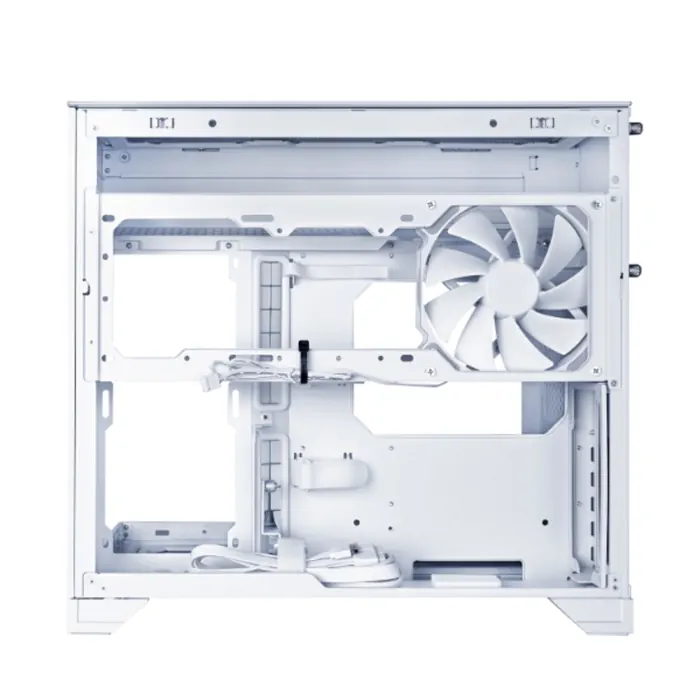

Included Cooling and Lighting
One 140 mm four-pin PWM fan is preinstalled in the second chamber. Additional display-chamber fans and the optional 9.2-inch LCD accessory are separate choices; the supplied rear-chamber fan is not a full set of RGB presentation fans. Connect fan power and any separate lighting leads to their specified interfaces. Choose additional cooling around the installed components and the positions that remain available.
Radiator and Fan Positions
The regular Vision-M specification lists 240 or 360 mm top radiators. Fan positions include three top 120 mm, two side 120 mm, three bottom 120 mm and two rear 120 mm units, plus the documented second-chamber positions. Plan one compatible assembly for each mounting position, accounting for the full fan-and-radiator thickness around memory, motherboard connections and adjacent cooling hardware.
Motherboard and Component Fit
Micro-ATX and Mini-ITX motherboards fit the five-slot layout, while rear-connector motherboard layouts are not supported. GPU length clearance is 410 mm and CPU-cooler clearance is 162 mm. A conventional ATX PSU must be shorter than 182 mm. Compare complete component dimensions, including protruding plugs and graphics power cables, before securing the final mounting positions. The listed clearances describe individual limits rather than every possible combined installation.
Storage, Access and Routing
The storage arrangement supports one 3.5-inch HDD with two 2.5-inch SSDs, or three 2.5-inch SSDs instead. A removable lower dust tray provides access around the bottom intake, with drive and cable routing organised in the separate chamber. Position the selected drives together with the power and data leads, keeping the cooling paths clear. Leave enough slack at the connectors to remove the relevant panels for maintenance.
Model
LIAN LI O11 Vision-M
Case size
Mini Tower
Motherboard support
Micro-ATX / Mini-ITX
Everyday Connections
The front connections comprise two USB-A 3.0 ports, one USB-C 3.2 port and an audio connection. The optional screen uses its own supported installation and software arrangement; the regular case remains a non-Digital configuration until separately equipped. Route the internal front-panel leads to the corresponding motherboard headers during assembly. USB performance and available lighting-control features depend on the connected host hardware and supported control arrangement.
Plan the Component Clearances
Check motherboard format, graphics-card length, cooler height and radiator positions together. Allow space for the power supply and cable routing before selecting the rest of the build. Compare related options such as ASUS Hyperion GR701 Full Tower E-ATX Gaming Case or LIAN LI O11 Dynamic EVO XL Full Tower Case, keeping the exact model and configuration in the decision. For the wider setup, explore MSI MAG MAX F20A-1 200mm ARGB Case Fan and check the connection, size or mounting requirements before pairing accessories. Browse the Lian LI range at AX for more choices.
LIAN LI O11 Vision-M Setup Choices
Check motherboard format, graphics-card length, cooler height and radiator positions together. Allow space for the power supply and cable routing before selecting the rest of the build. Explore LIAN LI O11 Vision-M 9.2" LCD Screen Kit - Black, Corsair RMe Series RM750e Fully Modular Low-Noise Power Supply.
Frequently Asked Questions
Which motherboard formats fit LIAN LI O11 Vision-M?
Micro-ATX / Mini-ITX.
Which fans are included?
1 × 140 mm four-pin PWM; second chamber.
What graphics-card length fits?
410 mm.
What CPU-cooler height fits?
162 mm.
Which radiator positions are available?
Top: 240 / 360 mm.
Which front connections are available?
2 × USB-A 3.0; USB-C 3.2; audio.
Build Your Setup with AX Store
Explore computers, displays and accessories for your workspace at AX Store. For help choosing the right model or checking an accessory, contact AX Store.
THE DETAILS
Technical specifications
Case Hardware
LIAN LI O11 Vision-M
Mini Tower
Micro-ATX / Mini-ITX
O11VMX / O11VMW; non-Digital
419.6 D × 275.1 W × 395.2 H mm
No
5
1 × 140 mm four-pin PWM; second chamber
No; optional compatible kit selected separately
410 mm
162 mm
ATX; under 182 mm
Top: 240 / 360 mm
Top 3 × 120; side 2 × 120; bottom 3 × 120; rear 2 × 120; second chamber 1 × 140 plus 2 × 120 mm
1 × HDD + 2 × SSD, or 3 × SSD
Removable bottom dust tray
2 × USB-A 3.0; USB-C 3.2; audio
