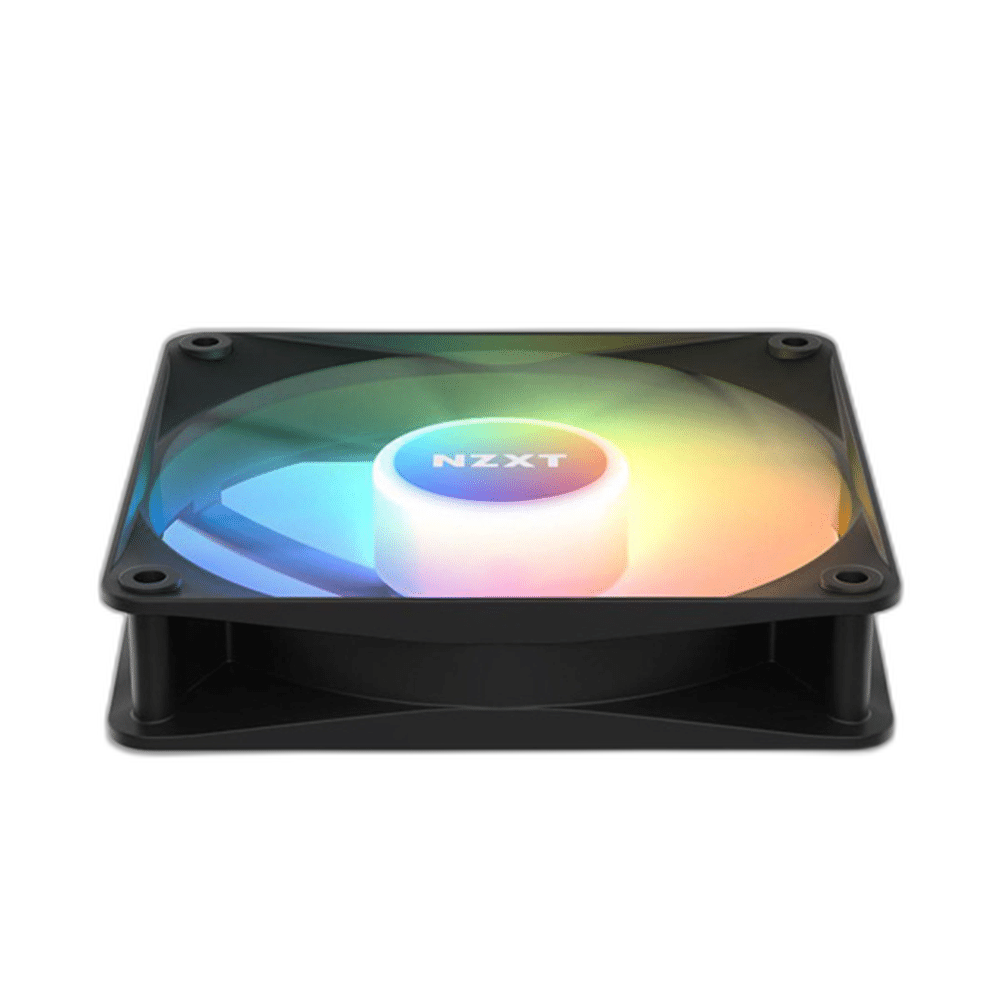

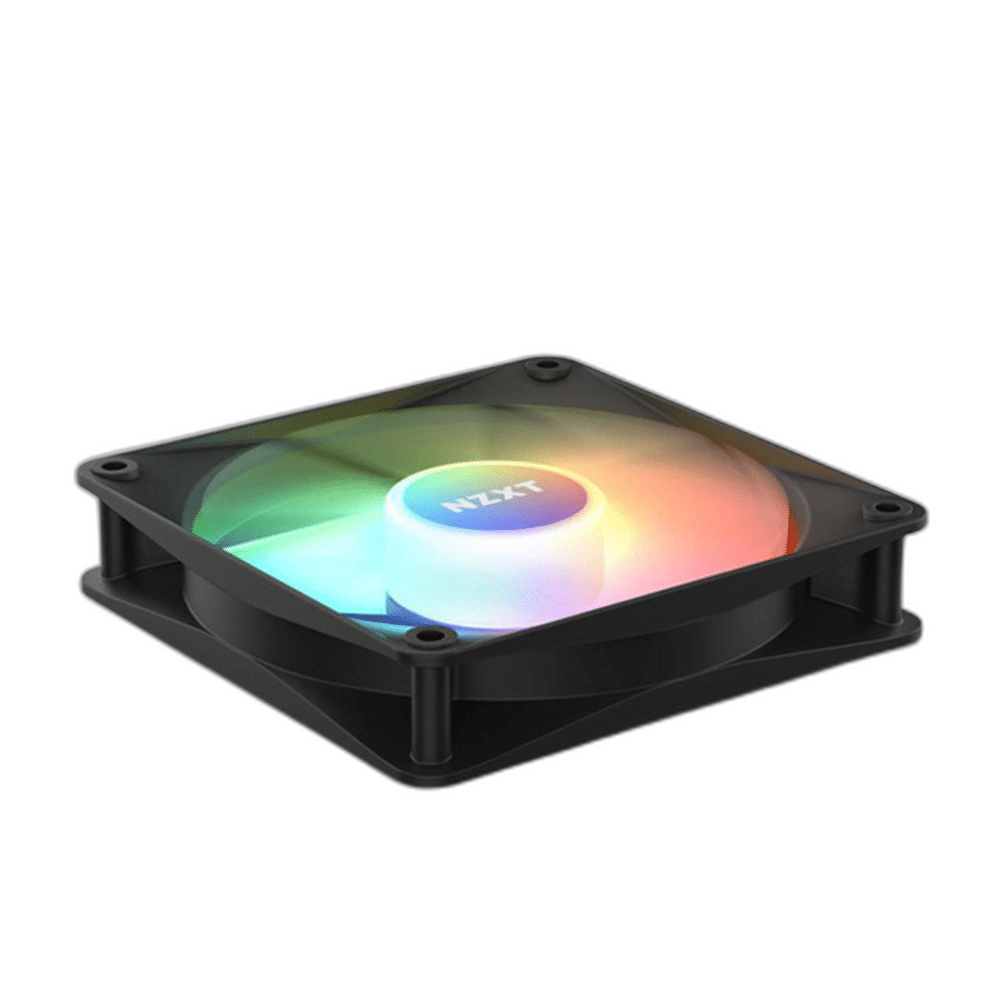

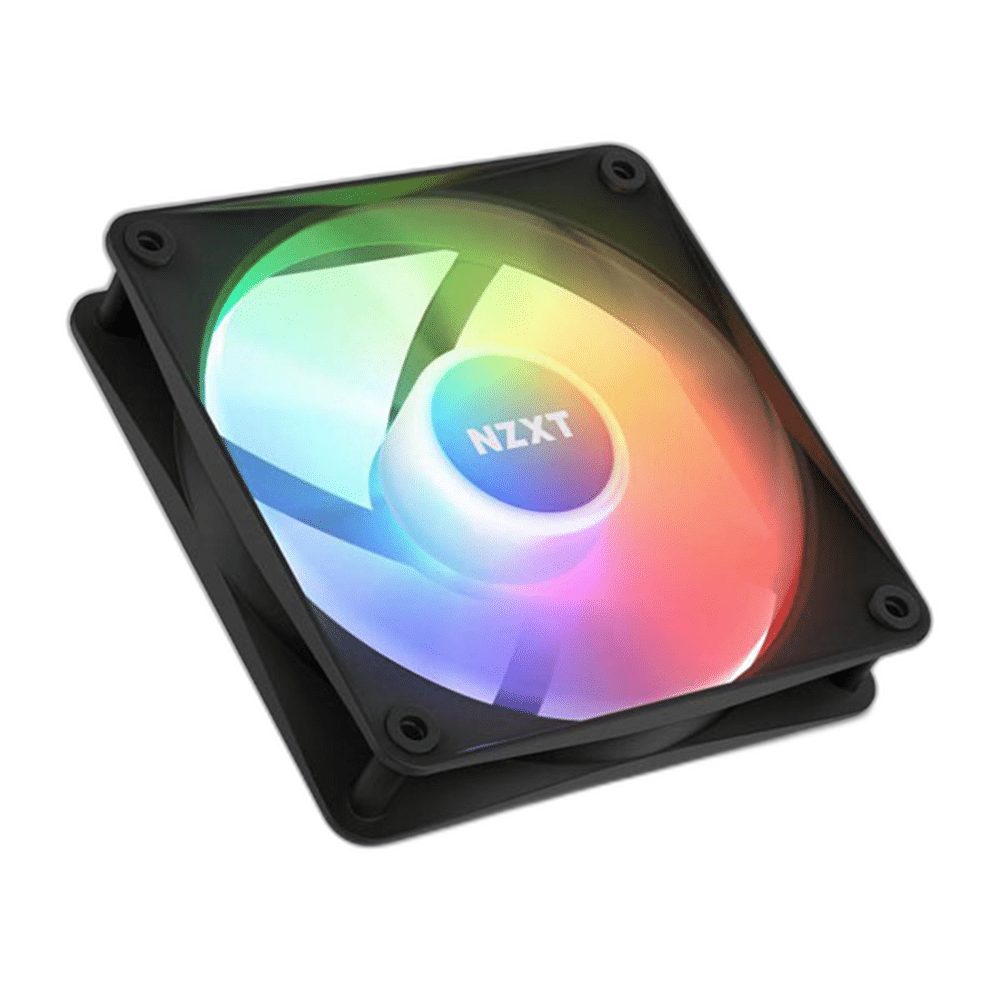

NZXT F120 RGB Core 120mm Case Fan, Black with RGB Lighting
NZXT F120 RGB Core provides 1 120 mm PWM fan with 8 individually addressable LEDs per fan. Hub-mounted LEDs illuminate the translucent fan blades. Separate speed and lighting connections let the build use the appropriate fan-control and RGB interfaces.
Color
Regular price
6.500 KWD
or 4 payments of 1.625 KWD with
Pay with card & save
6.000 KWD
Save 0.500 KWD
Overview
NZXT F120 RGB CORE
NZXT F120 RGB Core
NZXT F120 RGB Core provides 1 120 mm PWM fan with 8 individually addressable LEDs per fan. Hub-mounted LEDs illuminate the translucent fan blades. Separate speed and lighting connections let the build use the appropriate fan-control and RGB interfaces. Explore this model at AX Store in Kuwait.
120 mm
Fan size
1
Fans in pack
8
LEDs per fan
PWM
Speed control
120 mm Cooling for the Case
The 120 mm format fits compatible case and cooling mounts, with each fan measuring 120 × 120 × 26 mm. Check the available mounting holes and clearance before fitting the fan. A balanced intake and exhaust arrangement helps the rest of the cooling system use the available airflow effectively.
8 LEDs per Fan
8 individually addressable LEDs provide the lighting for each fan. The illuminated fan design gives a case window a visible focal point and can be coordinated with other compatible lighting products. Choose colours and effects through the appropriate lighting software and controller.
PWM Speed Adjustment
Four-pin PWM fan power allows speed adjustment through a compatible motherboard header or suitable fan controller. 500–1,800 ± 180 RPM is the specified operating range. Build the fan curve around the cooling needs of the system and its noise preference, with each fan lead connected to an appropriate speed-control channel.
Fluid-Bearing Cooling
A fluid dynamic bearing supports smooth rotation over the intended operating range. Mount the fans securely with the appropriate screws, leave the airflow path clear, and keep loose cables away from the blades. The frame and mounting arrangement should suit the position selected for each fan.
Connect to Compatible RGB Control
This single-fan pack requires a compatible NZXT RGB lighting channel or controller, sold separately, to configure lighting through CAM. Connect the fan-speed lead separately to a suitable PWM header. The NZXT RGB plug is proprietary, so choose the connection according to the exact RGB interface.
Fans in pack
1
Fan dimensions
120 × 120 × 26 mm
Lighting connector
4-pin NZXT RGB
Plan the Full Fan Arrangement
This pack contains 1 fan. Add it to the position that needs the extra cooling or lighting. Check fan size, mounting clearance, available PWM headers and lighting-controller capacity together before installation.
Check Fan Size and the Control Connection
Match the fan size, mounting position and power or lighting connector to the system. Check the controller or hub requirements before mixing fans from different ranges. Compare related options such as LIAN LI UNI FAN TL LCD FLEX Reverse Blade Wireless 120mm ARGB Fan - 1 Pack or LIAN LI UNI FAN TL LCD FLEX Wireless 120mm ARGB Fans - 3 Pack, keeping the exact model and configuration in the decision. For the wider setup, explore NZXT KRAKEN ELITE 360 V2 AIO Liquid Cooler, 2.72 Inch IPS LCD and check the connection, size or mounting requirements before pairing accessories. Browse the NZXT range at AX for more choices.
NZXT F120 RGB Core Setup Choices
Match the fan size, mounting position and power or lighting connector to the system. Check the controller or hub requirements before mixing fans from different ranges.
Frequently Asked Questions
How many fans are in the pack?
1 120 mm fan.
How is speed controlled?
Through the separate four-pin PWM fan connection, using an appropriate motherboard header or fan controller.
Is an RGB controller included?
No. This single-fan version needs a compatible NZXT RGB controller or lighting header, sold separately.
Are speed and lighting on the same connection?
No. Fan speed and RGB lighting use separate connections. Connect each to the appropriate header or controller.
Which size and clearance should I check?
120 × 120 × 26 mm per fan, plus clearance for cables and the intended case mounting position.
Build Your Setup with AX Store
Explore computers, displays and accessories for your workspace at AX Store. For help choosing the right model or checking an accessory, contact AX Store.
THE DETAILS
Technical specifications
Fan Hardware
NZXT F120 RGB Core
120 mm
1
120 × 120 × 26 mm
500–1,800 ± 180 RPM
8
4-pin PWM
4-pin NZXT RGB
Fluid dynamic bearing
78.86 CFM
2.57 mm H₂O
33.88 dBA
12 V DC; 0.2 A; 2.4 W
600 mm PWM; 600 mm NZXT RGB
