NZXT

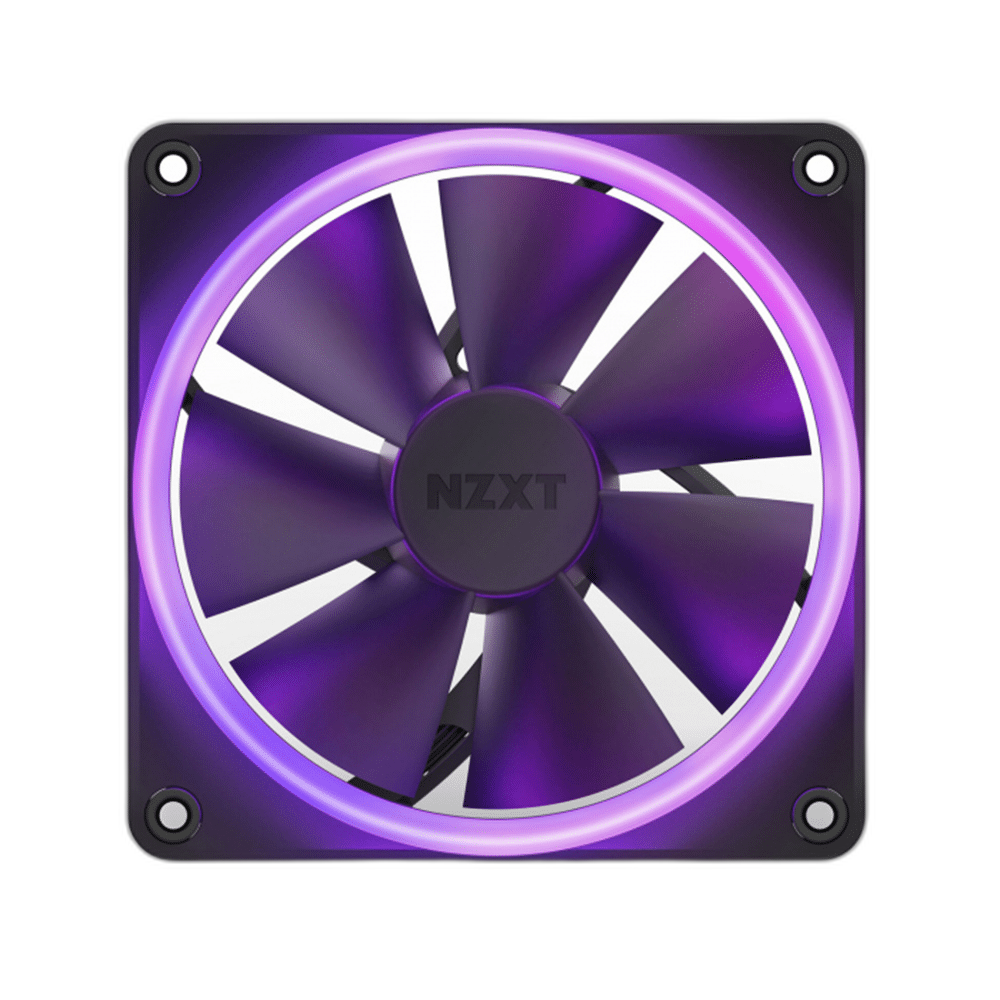

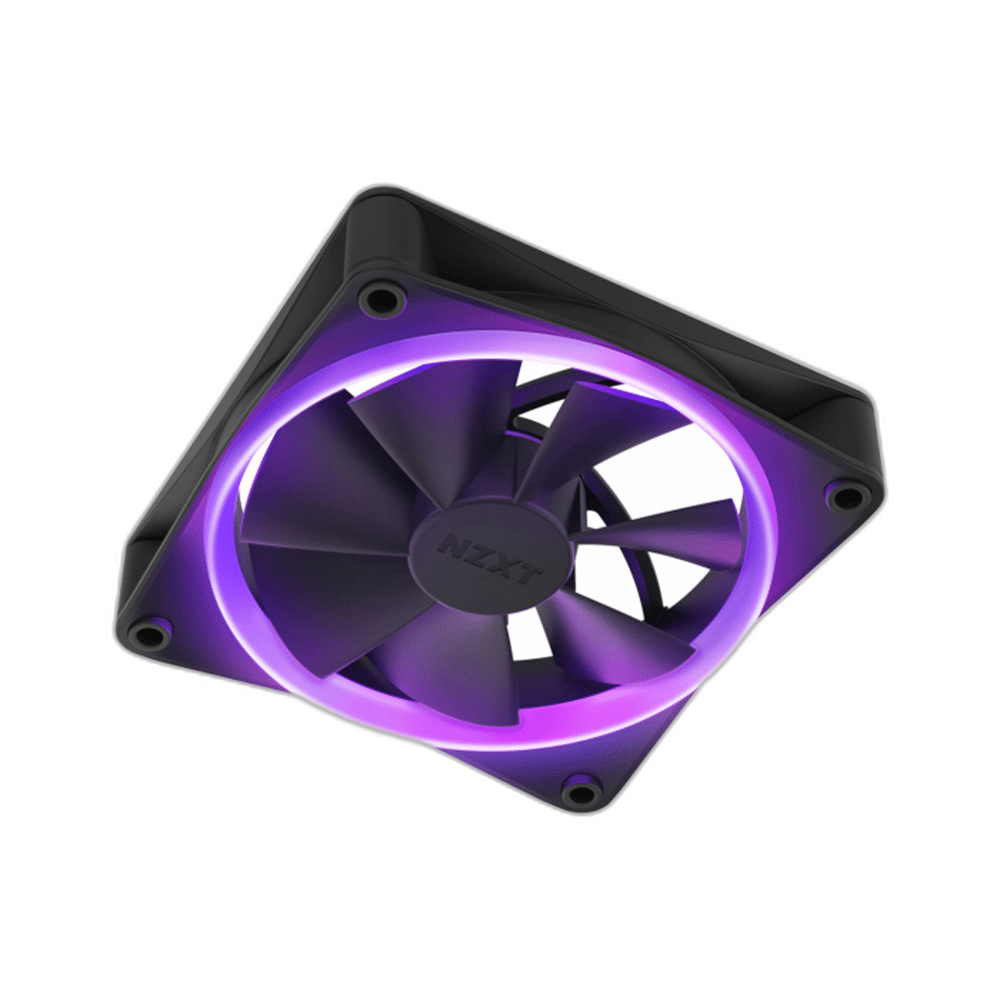

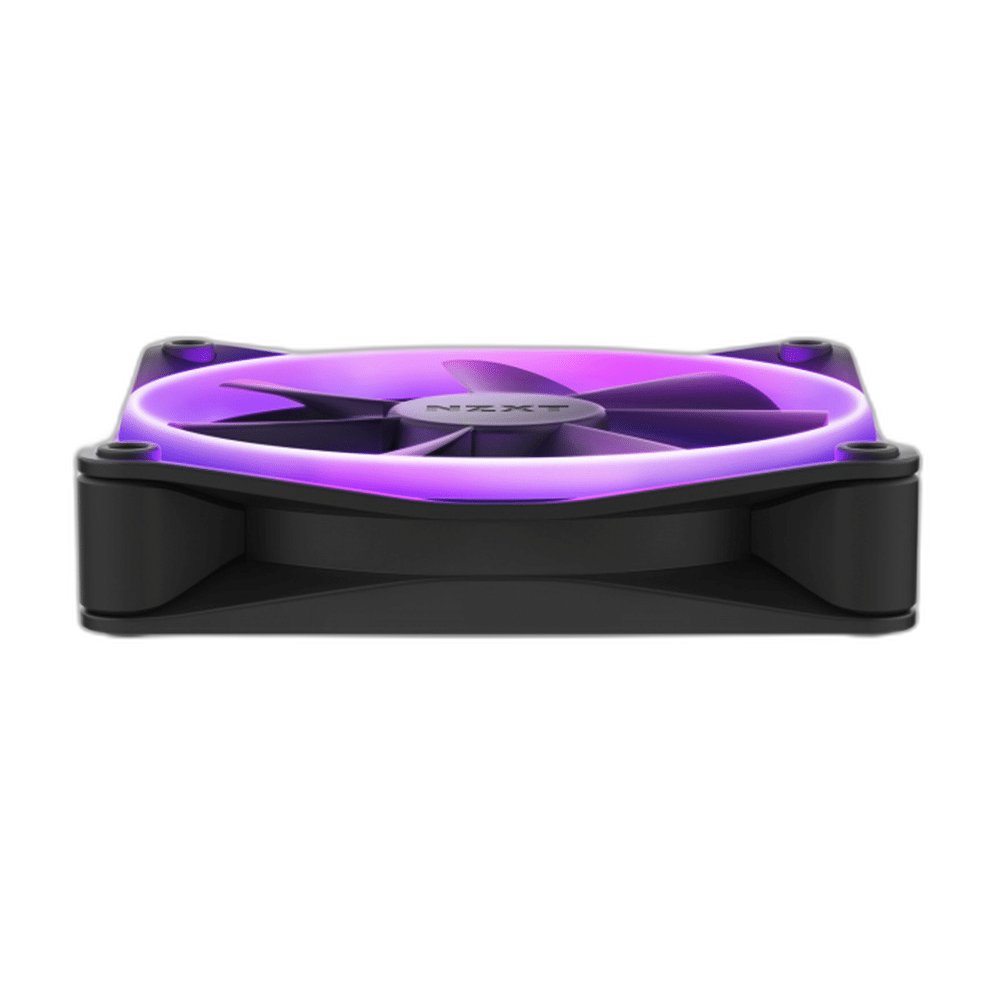

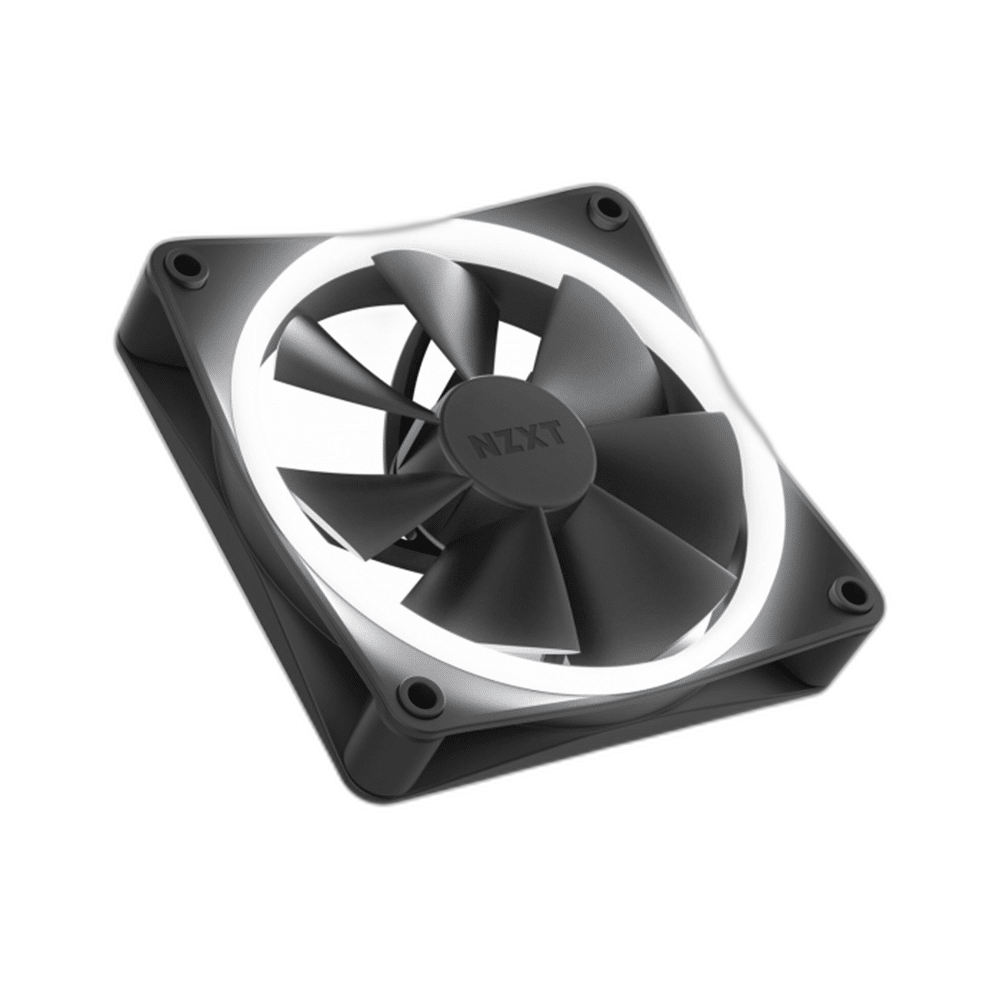

NZXT F120 RGB 120mm Case Fan, Black with RGB Lighting
NZXT F120 RGB provides 1 120 mm PWM fan with 18 individually addressable LEDs per fan. The original F120 RGB design uses an illuminated outer ring. Separate speed and lighting connections let the build use the appropriate fan-control and RGB interfaces.
Regular price
9.000 KWD
or 4 payments of 2.250 KWD with
Pay with card & save
8.750 KWD
Save 0.250 KWD
Overview
NZXT F120 RGB
PWM Cooling with Customisable RGB
NZXT F120 RGB provides 1 120 mm PWM fan with 18 individually addressable LEDs per fan. The original F120 RGB design uses an illuminated outer ring. Separate speed and lighting connections let the build use the appropriate fan-control and RGB interfaces.
120 mm
Fan size
1
Fans in pack
18
LEDs per fan
PWM
Speed control
120 mm Cooling for the Case
The 120 mm format fits compatible case and cooling mounts, with each fan measuring 120 × 120 × 26 mm. Check the available mounting holes and clearance before fitting the fan. A balanced intake and exhaust arrangement helps the rest of the cooling system use the available airflow effectively.
18 LEDs per Fan
18 individually addressable LEDs provide the lighting for each fan. The illuminated fan design gives a case window a visible focal point and can be coordinated with other compatible lighting products. Choose colours and effects through the appropriate lighting software and controller.
PWM Speed Adjustment
Four-pin PWM fan power allows speed adjustment through a compatible motherboard header or suitable fan controller. 500–1,800 ± 300 RPM is the specified operating range. Build the fan curve around the cooling needs of the system and its noise preference, with each fan lead connected to an appropriate speed-control channel.
Fluid-Bearing Cooling
A fluid dynamic bearing supports smooth rotation over the intended operating range. Mount the fans securely with the appropriate screws, leave the airflow path clear, and keep loose cables away from the blades. The frame and mounting arrangement should suit the position selected for each fan.
Connect to Compatible RGB Control
This single-fan pack requires a compatible NZXT RGB lighting channel or controller, sold separately, to configure lighting through CAM. Connect the fan-speed lead separately to a suitable PWM header. The NZXT RGB plug is proprietary, so choose the connection according to the exact RGB interface.
Fans in pack
1
Fan dimensions
120 × 120 × 26 mm
Lighting connector
4-pin NZXT RGB
Plan the Full Fan Arrangement
This pack contains 1 fan. Add it to the position that needs the extra cooling or lighting. Check fan size, mounting clearance, available PWM headers and lighting-controller capacity together before installation.
Complete Your Workspace
Explore Case Fans to compare suitable options and complete your setup.
Frequently Asked Questions
How many fans are in the pack?
1 120 mm fan.
How is speed controlled?
Through the separate four-pin PWM fan connection, using an appropriate motherboard header or fan controller.
Is an RGB controller included?
No. This single-fan version needs a compatible NZXT RGB controller or lighting header, sold separately.
Are speed and lighting on the same connection?
No. Fan speed and RGB lighting use separate connections. Connect each to the appropriate header or controller.
Which size and clearance should I check?
120 × 120 × 26 mm per fan, plus clearance for cables and the intended case mounting position.
Build Your Setup with AX Store Kuwait
Explore computers, displays and accessories for your workspace at AX Store Kuwait. For help choosing the right model or checking an accessory, contact AX Store.
THE DETAILS
Technical specifications
Fan Hardware
NZXT F120 RGB
120 mm
1
120 × 120 × 26 mm
500–1,800 ± 300 RPM
18
4-pin PWM
4-pin NZXT RGB
Fluid dynamic bearing
RF-R12SF-B1
13.94–50.18 CFM
0.75–2.7 mm H₂O
17.2–27.5 dBA
12 V DC; 0.18 A; 2.16 W
