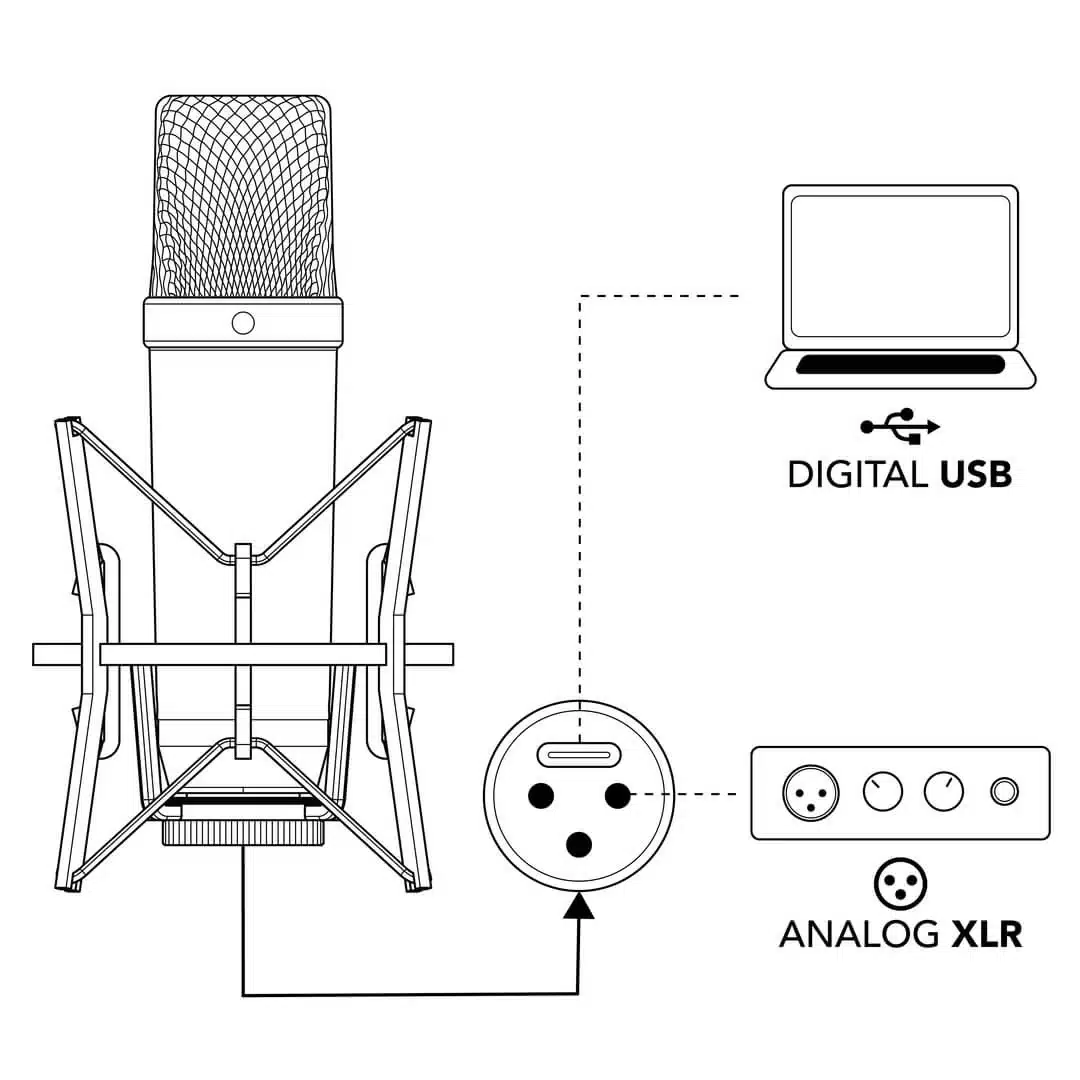

Dual Connect: XLR and USB-C

RØDE Dual Connect technology integrates an analog 3-pin XLR output and digital USB-C connection into the base of the microphone.

Use XLR with a compatible audio interface, mixer, preamp, or console for a traditional analog studio workflow, or connect directly to a computer through USB-C for digital recording using the NT1's internal audio interface.

32-Bit Float Recording via USB

When connected digitally through USB-C, the NT1 5th Generation supports 32-bit float recording for compatible computer and DAW workflows.

The 32-bit float output is part of the microphone's digital USB signal path and is designed to capture a very wide dynamic range. This feature is not available through the analog XLR output.

32-Bit Float

Available through the digital USB-C output for compatible recording applications and DAWs.

Up to 192kHz

High-resolution digital conversion supports 48kHz, 96kHz, and 192kHz sampling rates.

4dBA Self-Noise

Exceptionally low microphone self-noise helps capture quiet sources with minimal microphone-generated noise.

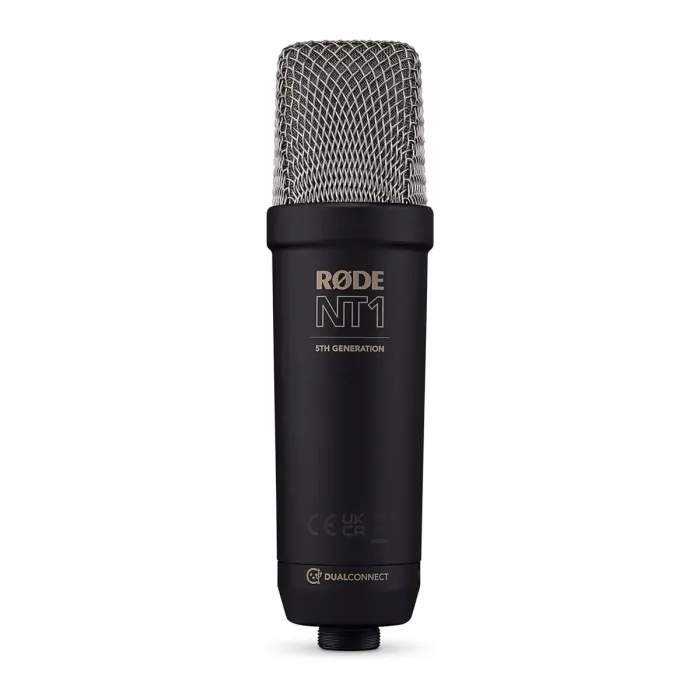

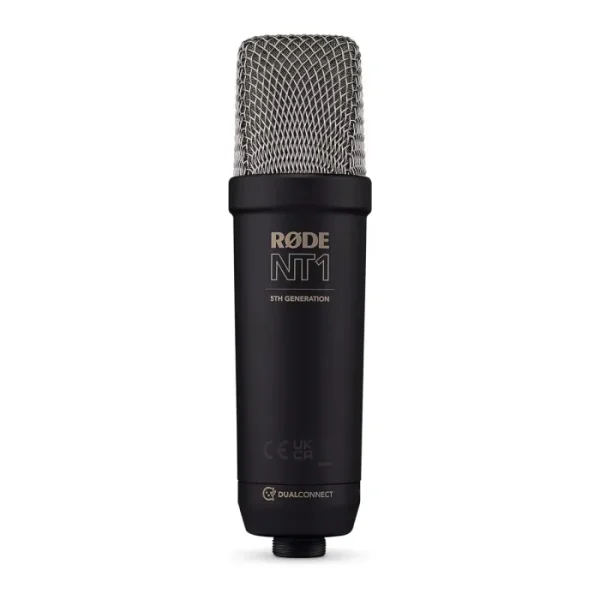

1-Inch HF6 Condenser Capsule

At the heart of the NT1 5th Generation is RØDE's 1-inch HF6 true condenser capsule with a gold-sputtered diaphragm and cardioid polar pattern.

The capsule is internally shock-mounted to help reduce external vibration, while its side-address design is intended for recording from the side marked by the microphone's gold indicator.

20Hz-20kHz

The NT1 5th Generation covers the standard full-range audio spectrum from 20Hz to 20kHz.

142dB SPL

High maximum SPL handling supports recording both quieter sources and louder instruments.

Cardioid Pattern

The cardioid pickup pattern focuses primarily on sound arriving from the front of the microphone.

Built-In Revolution Preamp

USB operation uses the NT1 5th Generation's integrated professional-grade audio interface and RØDE Revolution Preamp.

The internal preamp and analog-to-digital converter allow the microphone to operate as a direct computer recording solution without requiring a separate audio interface when using its USB output.

Built for Studio and Creator Workflows

The NT1 5th Generation is suited to vocals and speech as well as acoustic guitar, piano, drums, percussion, podcasting, streaming, and broader studio recording applications.

Its combination of XLR and USB connectivity allows it to move between traditional studio systems and direct-to-computer creator setups without changing microphones.

Traditional Analog XLR Recording

Through its 3-pin XLR connection, the NT1 5th Generation operates as a traditional studio condenser microphone and requires P48 phantom power from a compatible audio interface, mixer, or microphone preamp.

The XLR output uses the microphone's pure analog signal path. Digital features such as 32-bit float recording and onboard USB DSP apply to the USB-C signal path instead.

Rugged Aluminium Construction

The NT1 5th Generation body is machined from rugged aluminium and finished for regular studio use.

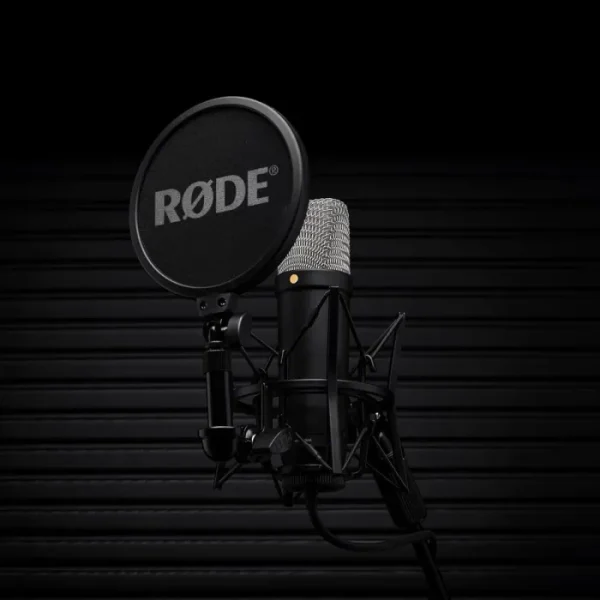

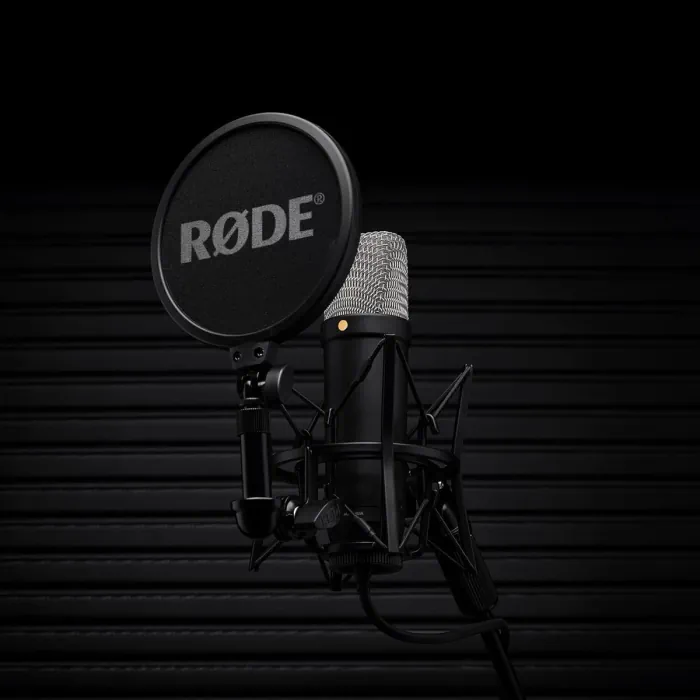

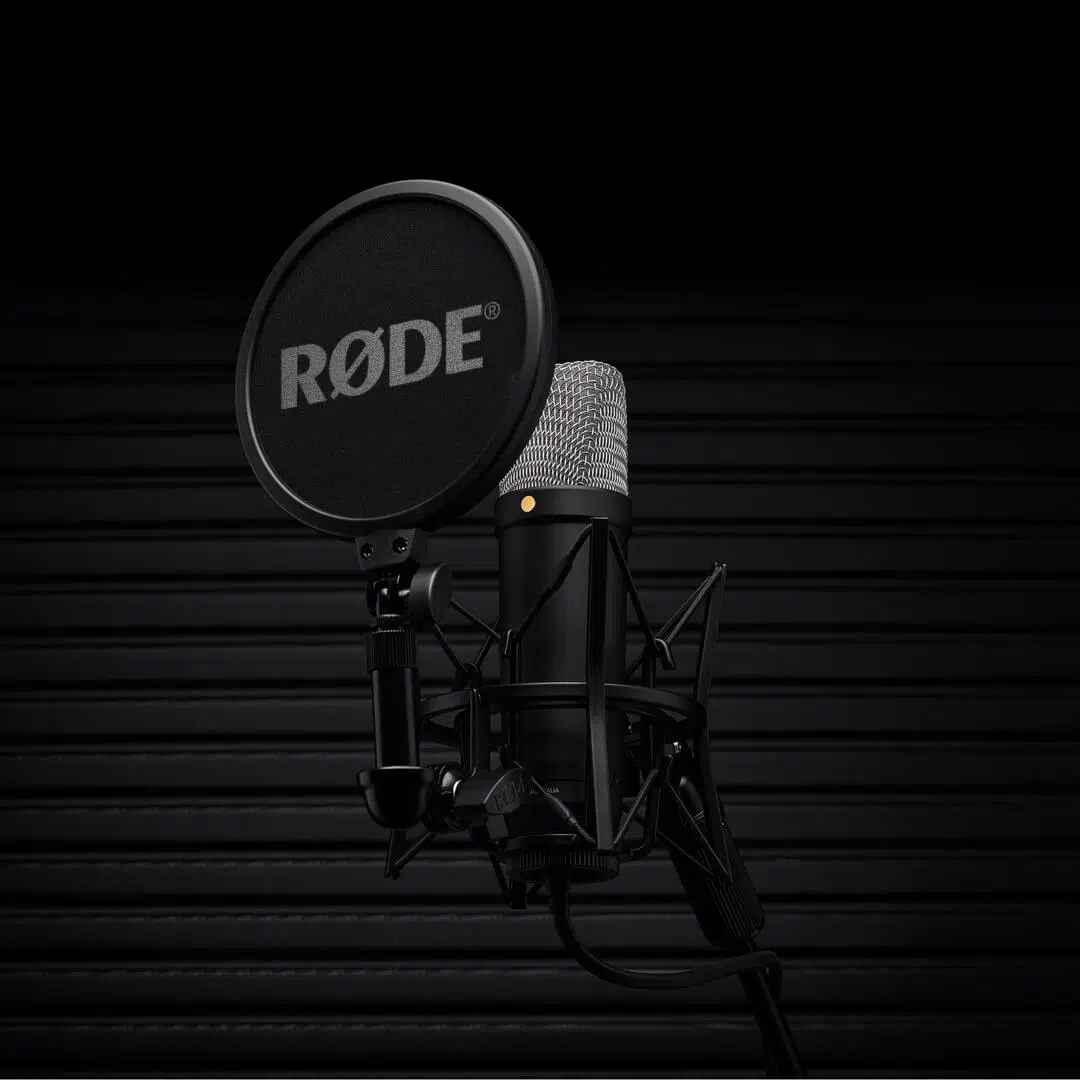

This supplied version is the Black model, built and manufactured in RØDE's precision manufacturing facilities in Sydney, Australia.

What connection options does the RØDE NT1 5th Generation support?

The RØDE NT1 5th Generation features Dual Connect output with a 3-pin XLR analog connection and a USB-C digital connection.

Does the RØDE NT1 5th Generation support 32-bit float recording?

Yes. The NT1 5th Generation supports 32-bit float digital recording through its USB-C output when used with compatible software. The analog XLR output does not provide 32-bit float recording.

Does the RØDE NT1 5th Generation require phantom power?

When connected through XLR, the NT1 5th Generation requires P48 phantom power. When connected digitally through USB, it is powered via USB at 5V.

What capsule and polar pattern does the RØDE NT1 5th Generation use?

The NT1 5th Generation uses a 1-inch HF6 true condenser capsule with a cardioid polar pattern and side-address design.

What are the self-noise and maximum SPL ratings of the RØDE NT1 5th Generation?

The RØDE NT1 5th Generation has an equivalent self-noise rating of 4dBA and can handle a maximum SPL of 142dB SPL.

What digital sample rates does the RØDE NT1 5th Generation support?

The NT1 5th Generation supports 48kHz, 96kHz, and 192kHz digital sample rates through USB.

What is included with the RØDE NT1 5th Generation?

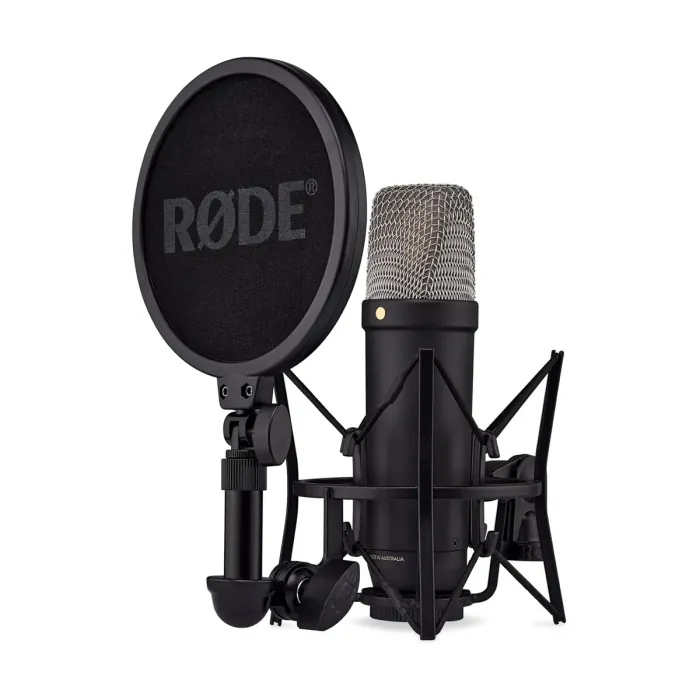

The Black NT1 5th Generation includes an SM6 shock mount and pop filter, SC29 3m USB-C cable, 6m XLR cable, and dust cover.

What color and part number is this RØDE NT1 5th Generation?

This supplied RØDE NT1 5th Generation is Black and is listed with SKU / Part No. 698813009770.
