Universal Audio Volt 1 USB Audio Interface
Universal Audio Volt 1 is a 1-in/2-out USB audio interface with 1 mic preamp, Vintage mode and 24-bit/192kHz conversion. Direct monitoring, MIDI I/O and switchable 48V phantom power support a compact recording setup.
or 4 payments of 10.500 KWD with
Pay with card & save
Overview
UNIVERSAL AUDIO VOLT 1 USB AUDIO INTERFACE

A compact start to your recording setup
Universal Audio Volt 1 is a 1-in/2-out USB audio interface with 1 mic preamp, Vintage mode and 24-bit/192kHz conversion. Direct monitoring, MIDI I/O and switchable 48V phantom power support a compact recording setup.
Analogue Recording Channels
Microphone Preamps
Maximum Recording Format
Interface USB Connector

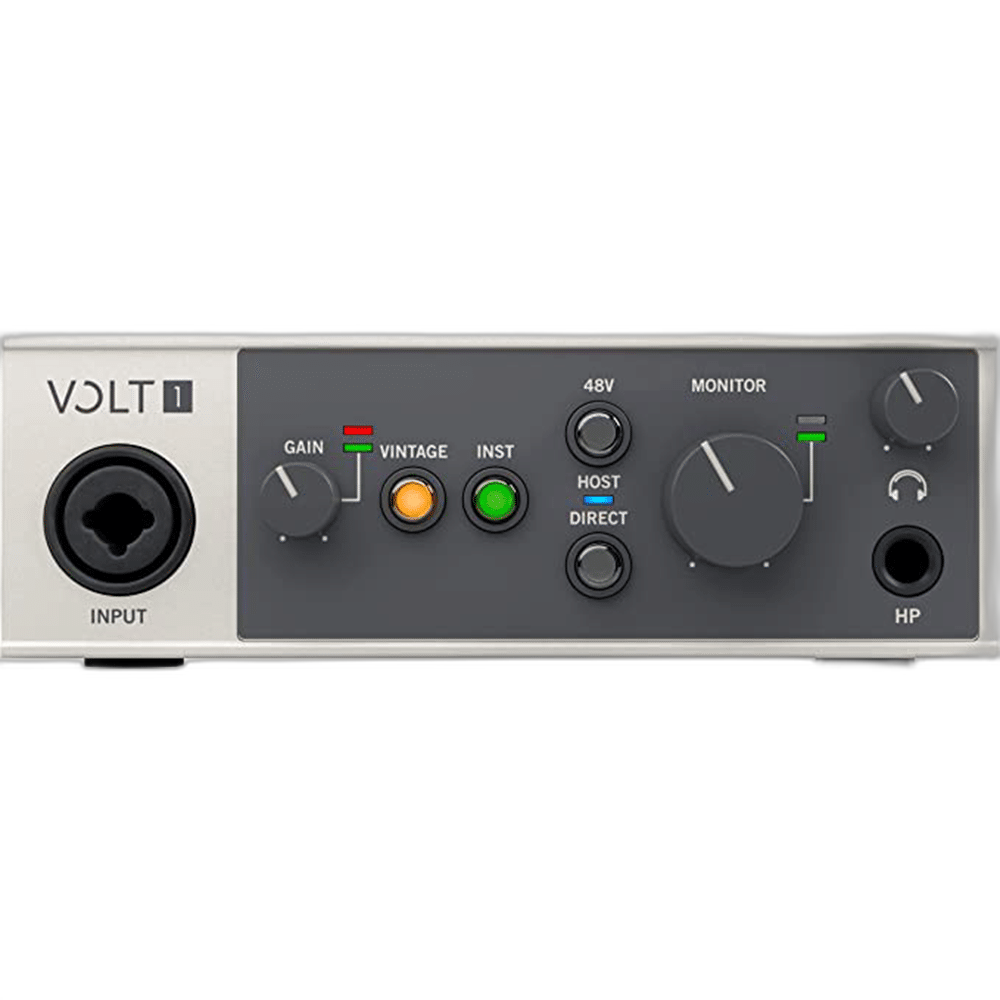

Choose the inputs your recording needs
Connect one microphone, guitar, bass or line-level source through the combo input. Volt's single recording channel suits solo voice work and recording instruments one track at a time.
Add analogue character
Vintage mode uses an analog circuit inspired by UA's 610 preamp to add tonal colour to microphone, line or instrument signals. Switch Vintage mode off when you prefer the standard preamp response.
Monitor while you record
Direct monitoring routes the input to your headphones and monitors without the delay introduced by software buffers. Separate headphone and monitor level controls let you set listening levels, while MIDI input and output connect compatible controllers and instruments.

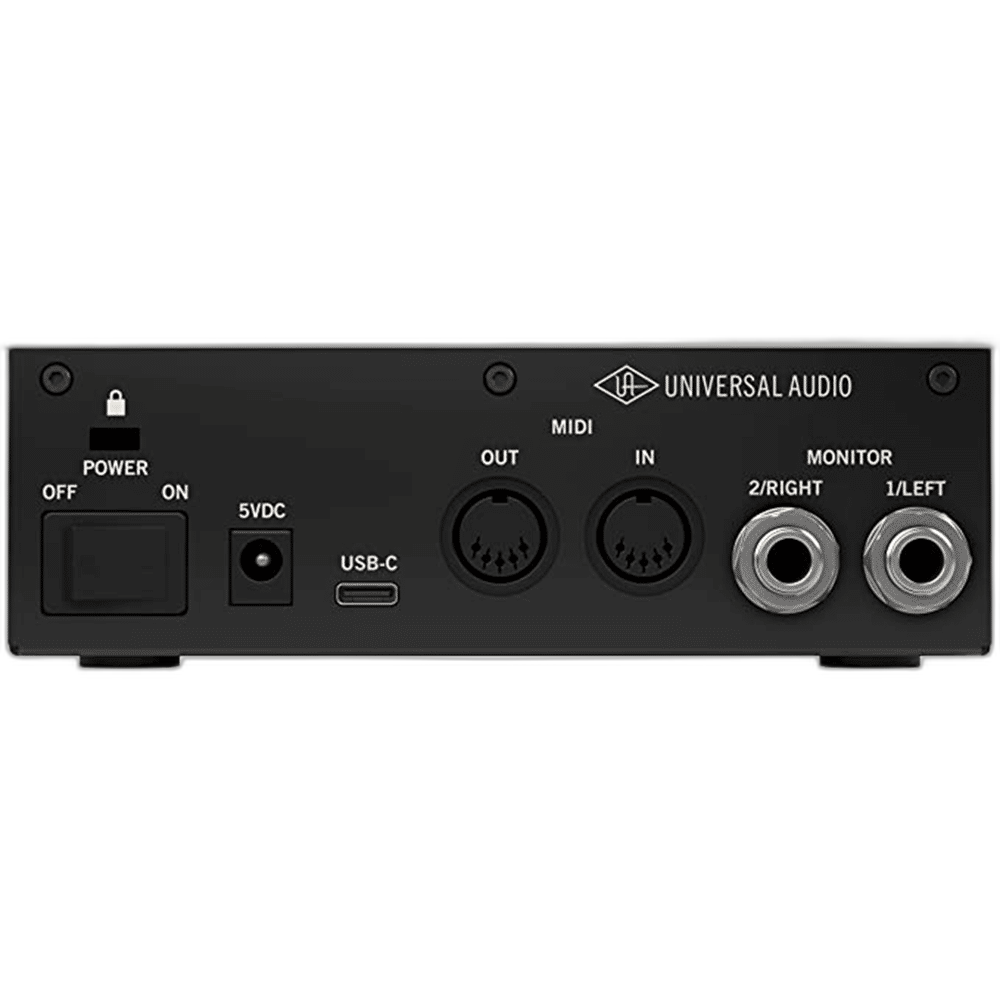

Connect to your recording system
The USB-C connector carries USB 2.0 audio. Use a compatible Mac, Windows computer, iPad or iPhone; mobile adapters and external power may be required. Recording software and bundled software can have separate operating-system and account requirements.
Plan the Session Around the Actual Inputs
The single combo input accepts one microphone, line source or instrument at a time. The different connector functions do not provide additional simultaneous recording channels. Assign the live sources before recording and choose the appropriate microphone, instrument or line setting for the connection you use.
Supply the Host Power the Interface Needs
The power arrangement is USB bus power; external +5V DC input when required. Use the specified cable and adequate host or external power. Check a mobile setup separately, as a matching USB connector does not guarantee the connected device supplies the required current.
Complete Your Workspace
Explore Audio-Technica AT2020 XLR microphone, ATH-M40x closed-back headphones, Compare audio interfaces and mixers, Browse microphones, Explore studio headphones for your setup. Suggested products are sold separately. Check the number of analogue recording channels, microphone preamps, digital expansion, MIDI, mobile support and supplied accessories when comparing interfaces. An Audio-Technica AT2020 XLR microphone requires 48 V phantom power; a Shure SM58 is a separate dynamic microphone choice. Use the correct XLR cable and microphone input. Beyerdynamic and Audio-Technica headphones provide listening alternatives, and Elgato controls complement a supported computer workflow. iD14 MKII desktop and ADAT functions do not include iD4 MKII’s supported iOS use. Mobile setups may require an adapter and external power. Choose the actual cables and recording software for the selected host.
Frequently Asked Questions
How many physical recording channels does it provide?
The single combo input accepts one microphone, line source or instrument at a time. The different connector functions do not provide additional simultaneous recording channels.
Which USB format and power should I plan for?
USB-C is the stated connection family. USB bus power; external +5V DC input when required. Check the required cable, host power and current driver support.
Which microphone connection should I use?
Connect an analogue XLR microphone to the supported microphone input. Use switchable 48 V phantom power only for a microphone or active accessory that requires it. USB microphones connect to their supported host separately.
Which recording format is supported?
Up to 24-bit / 192 kHz. Select a compatible sample rate and bit depth in the application; the stated maximum does not replace input-gain setup or guarantee an unclippable recording.
Can I use a supported iPad or iPhone?
Supported mobile operation needs the correct USB connection and adequate power. An appropriate adapter or powered hub may be required; desktop control software and bundled applications have separate system requirements.
Does this Volt model include the 76 Compressor?
No. This original-generation Volt model provides Vintage mode without the 76 Compressor found on the 176 and 276.
Build Your Setup with AX Store Kuwait
Explore computers, displays and accessories for your workspace at AX Store Kuwait. For help choosing the right model or checking an accessory, contact AX Store.
Compare Universal Audio Volt 4 USB Audio Interface. Match the exact model, connection and configuration to your setup.
THE DETAILS
Technical specifications
Interface and connections
Volt 1 (original generation)
1 inputs / 2 outputs
1 × XLR / 6.35 mm combo
2 × 6.35 mm TRS (stereo pair)
1 × 6.35 mm stereo
USB 2.0 via USB-C connector
5-pin DIN input and output
24-bit
44.1 / 48 / 88.2 / 96 / 176.4 / 192 kHz
Analog preamp emulation inspired by UA 610
No
Yes
Microphone input performance
55 dB
Switchable +48 V
20 Hz–20 kHz, ±0.1 dB
112 dB
-103 dB (0.0007%)
-127 dBu
9 dBu
3 kΩ
Instrument and line inputs
1 MΩ
12.5 dBu
111 dB
15 kΩ
22 dBu
111 dB
20 Hz–20 kHz, ±0.05 dB
Monitor and headphone outputs
110 dB
15 dBu
100 Ω
20 Hz–20 kHz, ±0.1 dB
84 mW per channel
22 mW per channel
12 mW per channel
-100 dB (0.001%)
Power and physical details
USB bus power; external +5V DC input when required
Centre positive
1.9 W typical / 2.8 W maximum
14.5 × 13.0 × 5.0 cm
0.55 kg
0–40°C
USB-A to USB-C; USB-A to DC barrel
