Zoom
Zoom H8 8-Input 12-Track Portable Recorder
Zoom H8 combines six external microphone inputs with an interchangeable X/Y capsule and a colour touchscreen. Dedicated Field, Music and Podcast modes adapt the workflow, with up to 12 recorded tracks depending on mode and USB audio-interface operation.
Regular price
104.000 KWD
or 4 payments of 26.000 KWD with
Pay with card & save
99.000 KWD
Save 5.000 KWD
Overview
ZOOM H8 8-INPUT 12-TRACK PORTABLE RECORDER
One recorder, three recording workflows

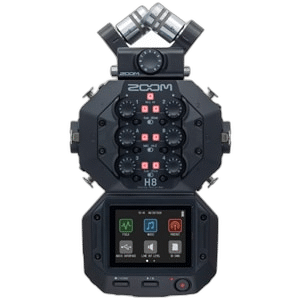

Zoom H8 combines six external microphone inputs with an interchangeable X/Y capsule and a colour touchscreen. Dedicated Field, Music and Podcast modes adapt the workflow, with up to 12 recorded tracks depending on mode and USB audio-interface operation.
6 External
Microphone Input Sockets
Stereo XYH-6
Included Capsule
8 Physical
Standard Input Channels
Up to 12 Tracks
Field Mode Including Extra Files
Choose a workspace for the session

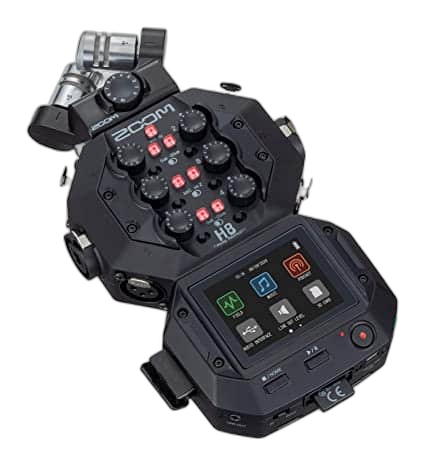

The colour touchscreen opens dedicated Field, Music and Podcast applications. Field mode prioritises multichannel capture, Music mode supports recording and overdubbing, and Podcast mode adds sound-pad playback for conversations and shows.
Connect microphones and instruments

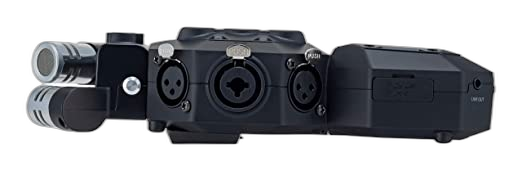

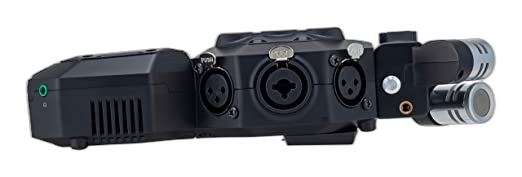

Four XLR inputs have independent gain controls and pad switches. Two additional XLR/TRS combo inputs include Hi-Z switching for direct guitar or bass recording. The included XYH-6 capsule adds stereo ambience or an interview recording without external microphones.
Understand the twelve-track count
The standard hardware captures eight input channels: six external inputs plus the stereo capsule. Field mode can record up to twelve tracks by also saving the stereo backup and L/R mix. Music mode supports up to eight tracks, while Podcast WAV recording supports up to ten tracks. These are not twelve built-in XLR sockets.
Take the session to your computer
Use USB multitrack mode for up to 12 inputs and two outputs, or a stereo mode for a simpler connection. The recorder supports up to 24-bit/96 kHz in Field mode; Music and Podcast modes record WAV at up to 48 kHz. Four AA batteries, USB bus power or an optional adapter keep it running.
Expand the workflow when needed
Compatible optional capsules change the microphone arrangement or add inputs. The optional BTA-1 adapter enables supported remote-control functions. Headphones, microphones, cables and expansion accessories shown in setup photos are sold separately.
Keep the Exact Model and Signal Path Clear
The standard H8 has six external inputs plus a stereo XY capsule for eight physical channels. The Field-mode twelve-track count includes stereo backup and L/R mix files, not twelve built-in XLR inputs.
Complete Your Workspace
Explore Audio-Technica ATH-M40x closed-back headphones, microphones, Compare portable audio recorders, Browse monitoring headphones for your setup. Suggested products are sold separately. Match the actual input, output, cable wiring and power requirements across the recording or listening chain. Use the microphone and interface power settings appropriate to the actual source. USB microphone audio and XLR microphone inputs are separate routes. Headphones connect to a suitable monitoring output; optional computer controls do not act as a recorder’s dedicated remote. Compare each alternative’s format, ports, gain, included accessories and physical arrangement before choosing.
Frequently Asked Questions
Which signal path and version should I plan for?
The standard H8 has six external inputs plus a stereo XY capsule for eight physical channels. The Field-mode twelve-track count includes stereo backup and L/R mix files, not twelve built-in XLR inputs.
Does the headline track count mean that many microphone sockets?
The standard H8 has six external inputs plus a stereo XY capsule for eight physical channels. The Field-mode twelve-track count includes stereo backup and L/R mix files, not twelve built-in XLR inputs.
What should I check for portable power?
4 × AA alkaline, NiMH or lithium. USB bus power or optional AD-17, 5 V / 1 A. Check the recording format, phantom power, monitoring and conditions when planning runtime.
Can 32-bit float prevent every overload?
This model’s stated recording formats apply to its exact generation. Set the analogue input level and gain according to the recorder instructions rather than assuming features from a newer essential model.
Build Your Setup with AX Store Kuwait
Explore computers, displays and accessories for your workspace at AX Store Kuwait. For help choosing the right model or checking an accessory, contact AX Store.
THE DETAILS
Technical specifications
Recording modes
H8
8 (six external plus stereo XY capsule)
Up to 12 tracks including backup and L/R mix; 44.1 / 48 / 96 kHz; 16 / 24-bit
Up to 8 tracks; 44.1 / 48 kHz; 16 / 24-bit
Up to 10 tracks; 44.1 / 48 kHz; 16 / 24-bit
Stereo; 128 / 192 / 320 kbps
BWF supported
SD / SDHC / SDXC
2.4-inch colour touchscreen; 320 × 240
XYH-6 stereo capsule
Directional X/Y stereo
136 dB SPL
-41 dB at 1 kHz / 1 Pa
-∞ to 46.5 dB
3.5 mm stereo; 2 kΩ; 2.5 V plug-in power
78.9 × 60.2 × 45.2 mm
130 g
Inputs 1–4
4 × XLR
-30 to +55.5 dB; 20 dB pad
At least 2 kΩ
+24 dBu with pad
+24 / +48 V; independent switching
-123.5 dBu or less, A-weighted
Inputs A and B
2 × XLR / TRS combo
-30 to +55.5 dB
At least 7 kΩ; Hi-Z TS at least 300 kΩ
+4 dBu
Hi-Z switch for each input
+24 / +48 V; independent switching
Outputs and USB
3.5 mm stereo; nominal -10 dBu into at least 10 kΩ
3.5 mm stereo; 20 mW + 20 mW into 32 Ω
400 mW / 8 Ω mono
Micro-B
12 in / 2 out; 44.1 / 48 / 96 kHz; 16 / 24-bit
2 in / 2 out; 44.1 / 48 kHz; 24-bit
Optional ZOOM BTA-1
Power and dimensions
4 × AA alkaline, NiMH or lithium
USB bus power or optional AD-17, 5 V / 1 A
Approximately 10 hours: XY stereo at 44.1 kHz / 24-bit; conditions affect runtime
116.4 × 163.3 × 48.6 mm
354 g
XYH-6
