Zoom R12 MultiTrak Recorder with 8-Track, USB-C Interface
Zoom R12 MultiTrak is a portable eight-track recorder with two XLR/TRS inputs, physical faders and a colour touchscreen. Record two tracks at a time, layer parts, edit and mix onboard, or use USB-C for audio-interface and DAW-control functions.
Regular price
114.500 KWD
or 4 payments of 28.625 KWD with
Pay with card & save
109.000 KWD
Save 5.500 KWD
Overview
ZOOM R12 MULTITRAK RECORDER WITH 8-TRACK, USB-C INTERFACE
Build a song without opening a laptop
Zoom R12 MultiTrak is a portable eight-track recorder with two XLR/TRS inputs, physical faders and a colour touchscreen. Record two tracks at a time, layer parts, edit and mix onboard, or use USB-C for audio-interface and DAW-control functions.
2 Tracks
Simultaneous Recording
8 Tracks
Simultaneous Playback
44.1 kHz
Recorder Sample Rate
4 × AA
Battery Power Option
Layer a song one performance at a time
The R12 records two input tracks simultaneously and plays back up to eight tracks. Capture a vocal and instrument, then overdub the next part while listening to earlier takes. Input 1 includes Hi-Z for direct guitar or bass recording, and both inputs can supply 48V phantom power.
Edit and mix on the recorder
Use the 2.4-inch touchscreen to work with audio regions and the physical faders to balance tracks. Each track has pan and three-band EQ, while input dynamics and insert or send effects help shape the recording. A dedicated effects-return fader controls the send-effect level.
Develop the arrangement
Start with one of 150 rhythm loops, add the metronome, or use the onboard FM synth sounds. A compatible USB MIDI keyboard can play the synth, while touchscreen programming supports ideas without a keyboard. Import audio from a memory card or USB storage to build on existing material.

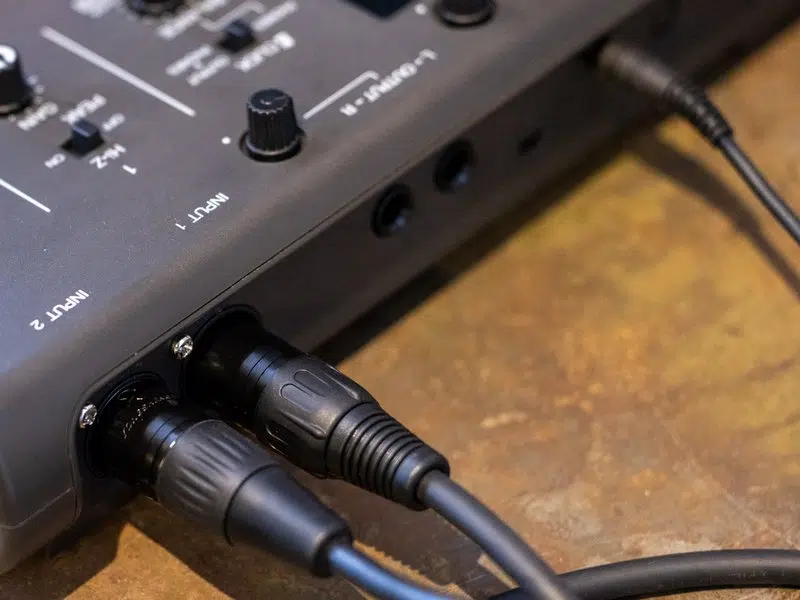

Connect to the rest of your studio
Balanced monitor outputs and a 3.5 mm headphone socket provide listening options. USB-C enables audio-interface use, file transfer and DAW control-surface operation. Recording runs at 44.1 kHz with 16-bit or 24-bit WAV files; this is an eight-playback-track recorder, not an eight-microphone-input mixer.
Record wherever ideas happen
Use four AA batteries, a suitable USB power source or the included AD-17 adapter. The R12 supports microSDXC cards up to 1TB. Instruments, microphones, headphones and memory cards shown in setup photos are sold separately.
Build Tracks with the Actual Input Count
Record up to two inputs at once and build an arrangement with up to eight playback tracks. Eight playback tracks do not mean eight simultaneous microphone inputs. Record successive performances to create the arrangement, using the touchscreen and track controls to edit and mix rather than planning eight live microphone connections at the same time.
Complete Your Workspace
Explore Audio-Technica ATH-M40x closed-back headphones, XLR microphones, Compare portable audio recorders, Browse monitoring headphones for your setup. Suggested products are sold separately. Check the number of analogue recording channels, microphone preamps, digital expansion, MIDI, mobile support and supplied accessories when comparing interfaces. An Audio-Technica AT2020 XLR microphone requires 48 V phantom power; a Shure SM58 is a separate dynamic microphone choice. Use the correct XLR cable and microphone input. Beyerdynamic and Audio-Technica headphones provide listening alternatives, and Elgato controls complement a supported computer workflow. iD14 MKII desktop and ADAT functions do not include iD4 MKII’s supported iOS use. Mobile setups may require an adapter and external power. Choose the actual cables and recording software for the selected host.
Frequently Asked Questions
Can it record eight microphones at once?
Record up to two inputs at once and build an arrangement with up to eight playback tracks. Eight playback tracks do not mean eight simultaneous microphone inputs.
Which recording format is used?
44.1 kHz; 16 / 24-bit; mono / stereo WAV. Select the appropriate project and recording setting.
Which storage cards are supported?
microSDHC 4–32 GB; microSDXC 64 GB–1 TB. Check and prepare a compatible card before recording.
What power options are available?
4 × AA alkaline, NiMH or lithium; AD-17; 5 V / 1 A; USB power is also supported. Runtime varies with phantom power, headphones and use.
How does USB audio work?
2 in / 2 out or 2 in / 4 out; 44.1 kHz; 16 / 24-bit. These modes are separate from the standalone eight-track playback arrangement.
Build Your Setup with AX Store Kuwait
Explore computers, displays and accessories for your workspace at AX Store Kuwait. For help choosing the right model or checking an accessory, contact AX Store.
THE DETAILS
Technical specifications
Recording and storage
R12 MultiTrak
2
8
44.1 kHz; 16 / 24-bit; mono / stereo WAV
microSDHC 4–32 GB; microSDXC 64 GB–1 TB
2.4-inch colour touchscreen; 320 × 240
Inputs and outputs
2 × XLR / TRS combo
+6 to +50 dB
3.9 kΩ; input 1 Hi-Z: 1 MΩ
+48 V; independent switching
-121 dBu or less, IHF-A, +50 dB / 150 Ω input
20 Hz–20 kHz, -1.0 / +0.5 dB
2 × balanced 6.35 mm TRS
+14 dBu
200 Ω
3.5 mm stereo
45 mW + 45 mW into 32 Ω
10 Ω
Mixer and creative tools
High 10 kHz; mid 2.5 kHz; low 100 Hz; each ±12 dB
Compressor / limiter / gate
Up to 3 types simultaneously; 50 patch memories
10 spatial-effect types
150
FM; 8-voice polyphony; 18 sound types plus PCM drum kit
40–250 BPM; 3/4, 4/4 or 6/8
Chromatic, guitar, bass and alternate guitar tunings
USB and power
USB-C
2 in / 2 out or 2 in / 4 out; 44.1 kHz; 16 / 24-bit
File storage; Guitar Lab; DAW control surface; USB MIDI keyboard
4 × AA alkaline, NiMH or lithium
AD-17; 5 V / 1 A
Supported
5 W
About 5 hours playback, phantom off, 32 Ω headphones; conditions affect runtime
256 × 158 × 61 mm
827 g
