AKG P420 Multi-Pattern Condenser Microphone, XLR
AKG P420 Multi-Pattern Condenser Microphone, XLR. The AKG P420 is a dual-diaphragm condenser microphone with cardioid, omnidirectional and figure-of-eight pickup patterns. Switch between focused solo recording, room capture and two-sided pickup as your session changes.
Regular price
89.500 KWD
or 4 payments of 22.375 KWD with
Pay with card & save
85.000 KWD
Save 4.500 KWD
Overview
AKG P420 MULTI-PATTERN CONDENSER MICROPHONE, XLR
AKG P420
The AKG P420 is a dual-diaphragm condenser microphone with cardioid, omnidirectional and figure-of-eight pickup patterns. Switch between focused solo recording, room capture and two-sided pickup as your session changes. Available from AX Store in Kuwait.
3 patterns
Cardioid / Omni / Figure-eight
1-inch
Dual-diaphragm condenser
−20 dB
Switchable pad
44–52 V
Phantom-power requirement
Choose the pickup pattern for the session
Use cardioid to prioritise a source in front of the microphone, omnidirectional for sound from around the capsule, or figure-of-eight for pickup from the front and rear.
Handle louder sources with the pad
The switchable -20dB pad raises the rated maximum sound pressure level to 155dB. A selectable 300Hz bass-cut filter reduces low-frequency content when the recording calls for it.
Connect to your recording chain
The balanced 3-pin XLR output connects to a compatible microphone preamp or audio interface. The P420 requires 44-52V phantom power; it is not a USB microphone.
Studio accessories included
A spider shock mount helps reduce mechanically transmitted vibration. The included metal carrying case keeps the microphone and accessories organised between sessions. Use familiar recordings and a consistent listening level when assessing sound with your usual audio equipment.
Build the Correct XLR Signal Path
The microphone uses Balanced 3-pin male XLR. Connect it through an appropriate XLR microphone cable to a microphone preamp, interface or mixer, then set input gain around the actual performance. A headphone output is a playback connection and does not replace a microphone input.
Provide the Specified Phantom Power
The published phantom-power requirement is 44–52V. Use an appropriate powered microphone input and an XLR cable wired for that signal path. Keep the recording level below clipping, and check the input and power settings before starting the performance or recording session.

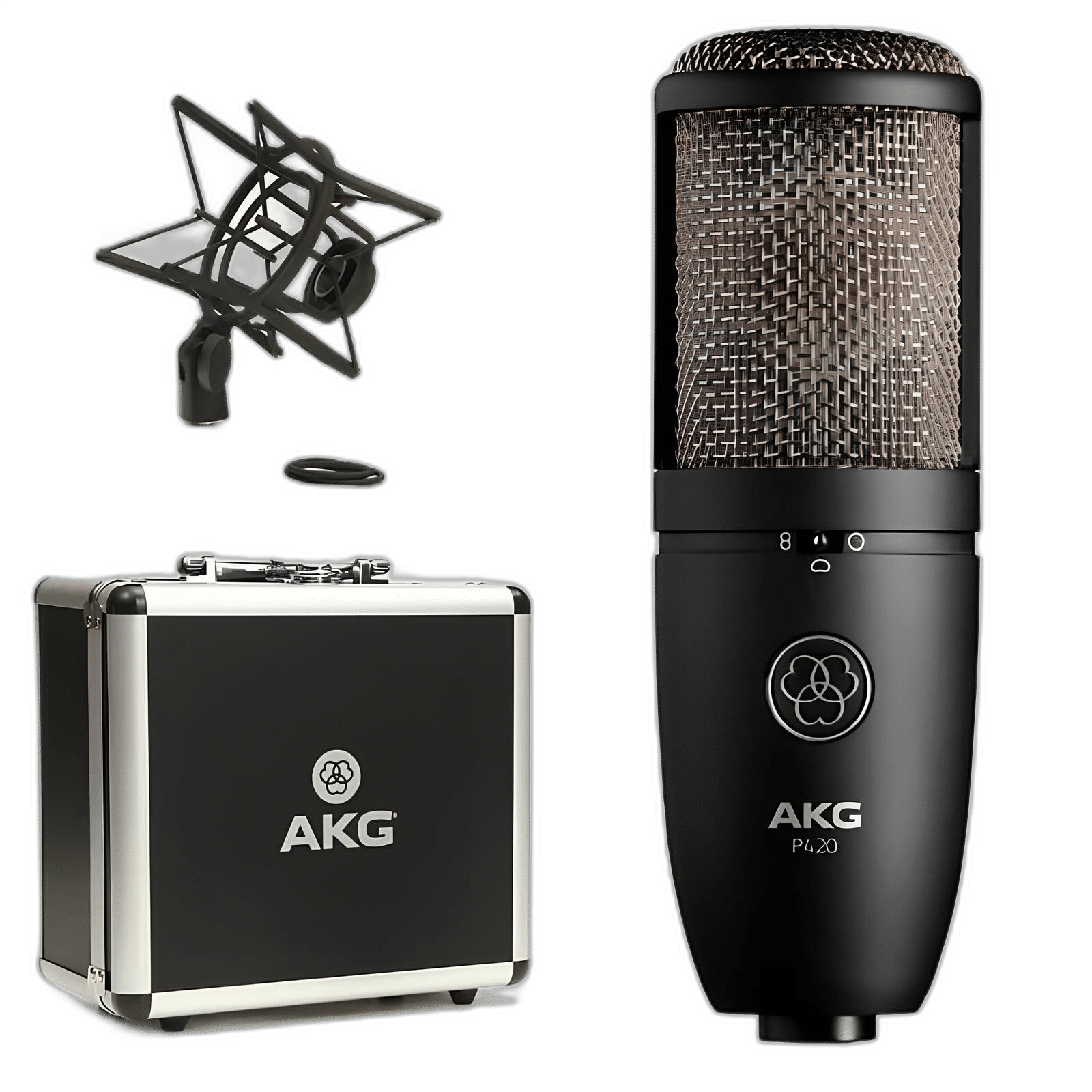

What's in the Box
- AKG P420 microphone
- Spider shock mount
- Metal carrying case
Plan the Recording Path for This Microphone
Use the output and power requirements of this exact microphone to choose the recording route. Match the microphone input, monitoring arrangement and mount before selecting an interface or mixer; accessories are separate choices. Compare related options such as RØDE PodMic Dynamic XLR Broadcast Microphone, White or SHURE MV7X Dynamic Broadcast Microphone (XLR Only), keeping the exact model and configuration in the decision. For the wider setup, explore Focusrite Scarlett 2i2 4th Gen USB Audio Interface, 120dB Dynamic Range and check the connection, size or mounting requirements before pairing accessories. Browse the AKG range at AX for more choices.
AKG P420 Setup Choices
Use the output and power requirements of this exact microphone to choose the recording route. Match the microphone input, monitoring arrangement and mount before selecting an interface or mixer; accessories are separate choices. Explore RODE RODECaster Duo Integrated Audio Production Studio, TC-Helicon GoXLR Mini USB Mixer & Audio Interface – 4 Faders, MIDAS Preamp, RØDE AI-1 USB-C Audio Interface.
Frequently Asked Questions
Which microphone connection does this use?
Balanced 3-pin male XLR. Use a suitable XLR microphone input and cable. This listing is the analogue XLR model.
Which pickup pattern is available?
Cardioid; Omnidirectional; Figure-of-eight. Choose the microphone position and, where available, pattern around the source and room.
What equipment should I connect it to?
Use a microphone preamp, audio interface or mixer with the appropriate XLR microphone input. It must provide the specified phantom power: 44–52V.
What is included?
P420 microphone; Spider shock mount; Metal carrying case. Any interface, stand, arm or cable is a separate choice unless expressly listed as included.
How heavy is the microphone?
517g. Include the weight of the mounting accessories when choosing the supporting arm or stand.
How do I set the recording level?
Connect to the microphone input, position the microphone and check the loudest expected part of the performance. Adjust gain while monitoring so normal variations in voice or instrument level do not clip the input.
When is the 155 dB maximum SPL figure applicable?
The specified 155 dB maximum is with the −20 dB pad engaged. Keep that condition with the figure rather than applying it to every pad setting.
Build Your Setup with AX Store
Explore computers, displays and accessories for your workspace at AX Store. For help choosing the right model or checking an accessory, contact AX Store.
Complete Your Setup
Explore equipment for your workspace: RØDE PSA1+ Professional Studio Microphone Boom Arm, RØDE XLR3M Premium XLR Cable, 3M Length, TC-Helicon GoXLR 4-Channel USB Streaming Mixer.
THE DETAILS
Technical specifications
Microphone
AKG
P420
1-inch dual-diaphragm true condenser
Cardioid, Omnidirectional, Figure-of-eight
20Hz–20kHz
Audio Performance
15dB-A
28mV/Pa
79dB-A
-20dB, switchable
155dB with pad engaged
300Hz, 12dB/octave
Electrical and Physical
Balanced 3-pin male XLR
200 Ohm or less
1kOhm or greater
44–52V
3mA or less
165mm
54mm
517g
Included Accessories
P420 microphone, Spider shock mount, Metal carrying case
Product identification
AKG
3101H00430
