ASUS PCE-AXE59BT WiFi 6E PCI-E Adapter
ASUS

ASUS PCE-AXE59BT WiFi 6E PCI-E Adapter

ASUS PCE-AXE59BT Wi-Fi 6E PCIe adapter with Bluetooth 5.2, OFDMA, MU-MIMO and WPA3 support. Published link rates: 6GHz up to 2402Mbps, 5GHz up to 2402Mbps and 2.4GHz up to 574Mbps. Confirm host OS and installation requirements before use.

SKU: 90IG07I0-MO0B00

Regular price 25.000 KWD

or 4 payments of 6.250 KWD with

Pay with card & save

KNET Mastercard Gateway
24.000 KWD Save 1.000 KWD

Overview

ASUS PCE-AXE59BT WI-FI 6E PCIE ADAPTER

ASUS PCE-AXE59BT Wi-Fi 6E PCIe Adapter official model reference

A Desktop Wireless Upgrade with Bluetooth 5.2

ASUS PCE-AXE59BT adds Wi-Fi 6E and Bluetooth 5.2 to a compatible desktop computer. Its PCIe design supports wireless networking alongside Bluetooth peripherals, with two external antennas with an adjustable, magnetized antenna base. Plan the installation around the available expansion slot, supported operating system and router capabilities, then configure the connections for the devices and network you use at the desk.

Wi-Fi 6E

Wireless Generation

Bluetooth 5.2

Bluetooth

PCIe x1

Host Interface

WPA3

Wi-Fi Security

Wireless Bands and Published Link Rates

The adapter supports 6GHz up to 2402Mbps, 5GHz up to 2402Mbps and 2.4GHz up to 574Mbps. The 6GHz connection requires a compatible Wi-Fi 6E network and a supported Windows 11 setup; available bands also depend on the local product configuration. These are maximum wireless link rates rather than guaranteed file-transfer or internet speeds. Actual results depend on the router, client configuration, distance, interference and network workload during use.

OFDMA and MU-MIMO Support

PCE-AXE59BT supports OFDMA and MU-MIMO to help a compatible wireless network handle communication with multiple devices. Use it with suitable router support to access those features. Consider the capabilities of both ends of the connection when upgrading the desktop, especially where several computers, phones or other wireless devices share the same network.

Bluetooth for Supported Peripherals

Bluetooth 5.2 provides a connection option for compatible wireless peripherals alongside Wi-Fi networking. Bluetooth operation also requires the internal USB connection described in the installation guide. Check the host drivers, accessory compatibility and required Bluetooth profiles before pairing. The usable peripheral functions depend on the complete computer and accessory setup, including the software used to manage the connection.

Antennas and Desktop Placement

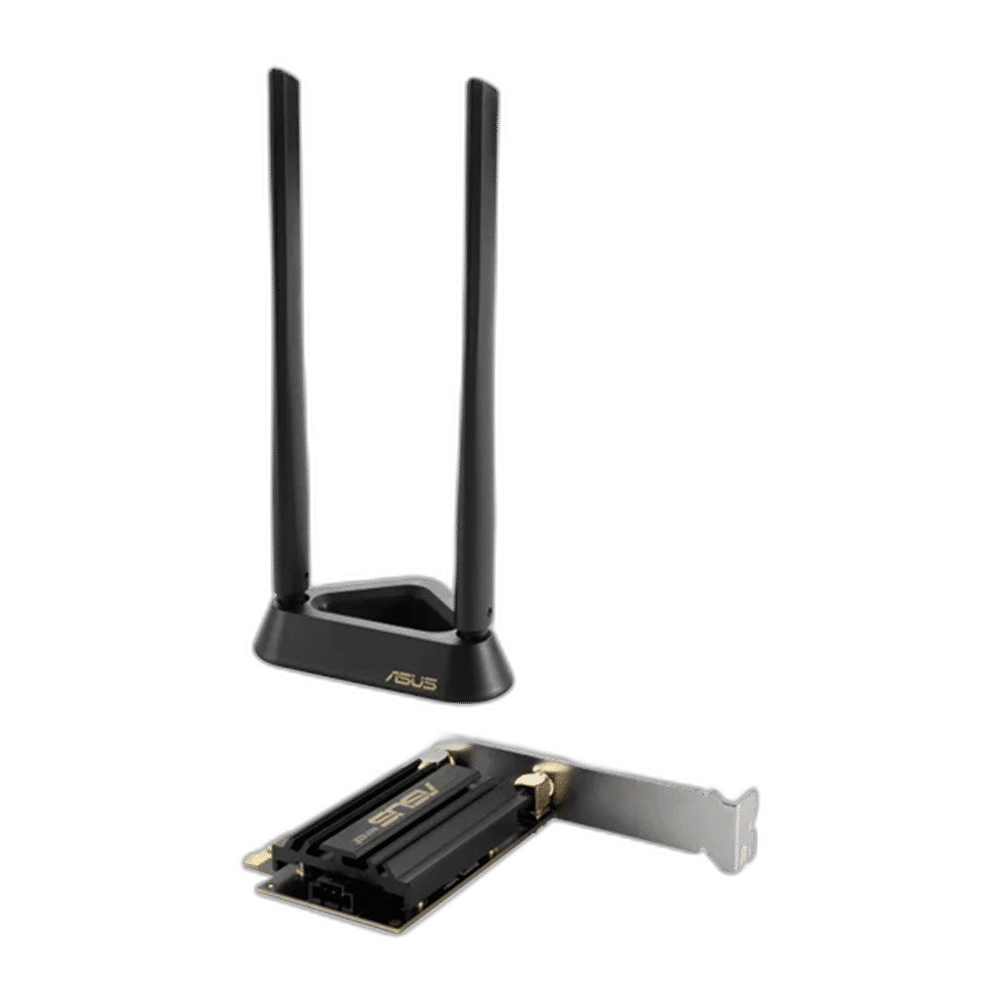

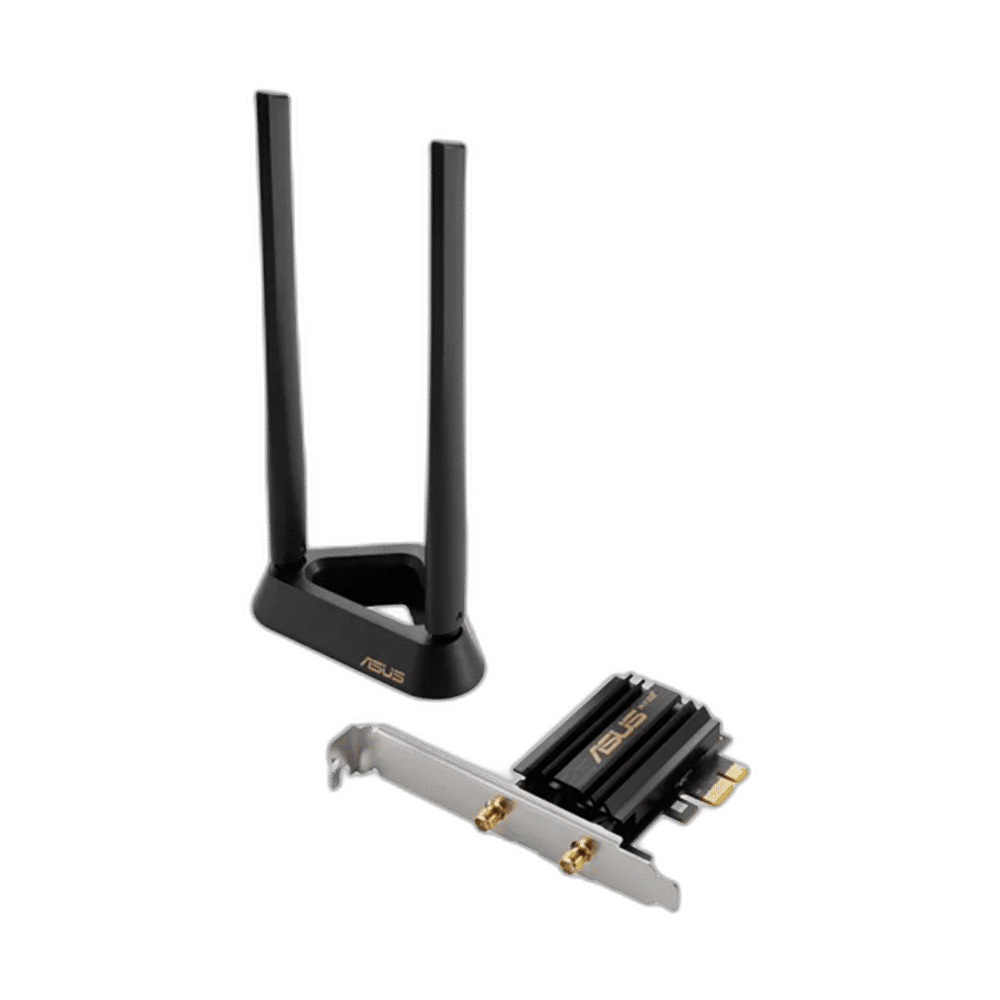

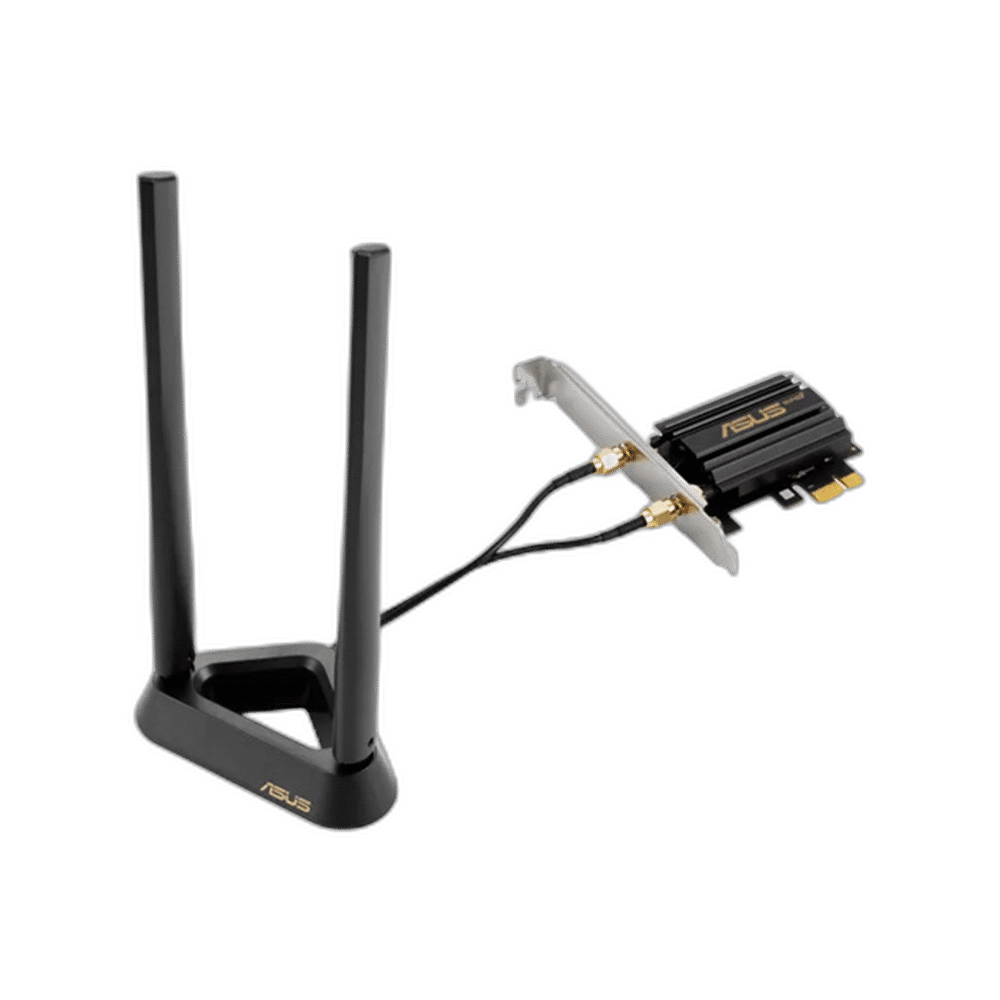

The adapter uses two external antennas with an adjustable, magnetized antenna base. Plan the computer location and antenna position around the available router coverage, leaving the antenna connections accessible. ASUS lists a weight of 78.4g and dimensions of 120.5 × 88.03 × 21.59mm. Check the expansion-slot space and installation requirements when fitting the card into the desktop system.

Published Operating-System Support

The manufacturer lists Windows 11 64-bit; Windows 10 64-bit supports the 2.4GHz and 5GHz bands only. Check the operating system and driver requirements before installation, then use the matching official driver resources for the card. Review the supported wireless bands and Bluetooth setup for that system so the intended features are available when the computer joins the network and pairs with peripherals.

PCIe Installation and WPA3 Security

The card installs through a PCI Express x1 connection. PCE-AXE59BT also supports WPA3 Wi-Fi security for compatible router and system configurations. Prepare the available expansion slot, follow the model-specific installation instructions and configure the router security settings as part of setup. Keep the network and Bluetooth driver requirements together when completing the desktop upgrade.

Complete Your Workspace

Explore Network at AX Store and choose the configuration or accessories that fit your setup.

Frequently Asked Questions

Which wireless standards are supported?

WiFi 6E (802.11ax); WiFi 6 (802.11ax); WiFi 5 (802.11ac); WiFi 4 (802.11n); Bluetooth® 5.2.

Which computer interface does this card require?

PCI Express x1.

Which operating systems and band limitations apply?

OS Support : Windows 11 64-bit; Windows 10 64-bit (support 2.4GHz & 5GHz band only).

What wireless link rates are specified?

WiFi 6E (802.11ax) (6GHz) : up to 2402 Mbps; WiFi 6 (802.11ax) (5GHz) : up to 2402 Mbps; WiFi 6 (802.11ax) (2.4GHz) : up to 574 Mbps; WiFi 5 (802.11ac) : up to 1733 Mbps; WiFi 4 (802.11n) : up to 300 Mbps; 802.11g : up to 54 Mbps; 802.11b : up to 11 Mbps; 802.11a : up to 54 Mbps. These are link-rate specifications; actual throughput depends on the router, client configuration and environment.

Does it support Bluetooth and WPA3?

Bluetooth: 5.2. Wi-Fi security: WPA3.

Build Your Setup with AX Store Kuwait

Explore computers, displays and accessories for your workspace at AX Store Kuwait. For help choosing the right model or checking an accessory, contact AX Store.

THE DETAILS

Technical specifications

Model and Configuration

Model

PCE-AXE59BT

Host interface

PCI Express x1

OFDMA / MU-MIMO

Supported with compatible router

Wi-Fi security

WPA3

Technical Specifications

Network Standard

WiFi 6E (802.11ax); WiFi 6 (802.11ax); WiFi 5 (802.11ac); WiFi 4 (802.11n); Bluetooth® 5.2

Bluetooth

5.2

Interface

PCI-Express x 1

WiFi Data Rate

WiFi 6E (802.11ax) (6GHz) : up to 2402 Mbps; WiFi 6 (802.11ax) (5GHz) : up to 2402 Mbps; WiFi 6 (802.11ax) (2.4GHz) : up to 574 Mbps; WiFi 5 (802.11ac) : up to 1733 Mbps; WiFi 4 (802.11n) : up to 300 Mbps; 802.11g : up to 54 Mbps; 802.11b : up to 11 Mbps; 802.11a : up to 54 Mbps

Antenna

External Antenna x 2

Security

WPA3

OS Support

OS Support : Windows 11 64-bit; Windows 10 64-bit (support 2.4GHz & 5GHz band only)

Package Content

ASUS PCE-AXE59BT WLAN Card x1; Low Profile Bracket x1; Motherboard USB Cable x1; Warranty Card; Antenna Base; Quick Start Guide

Product Weight (g)

78.4g

Product Dimensions

120.5 x 88.03 x 21.59 mm
