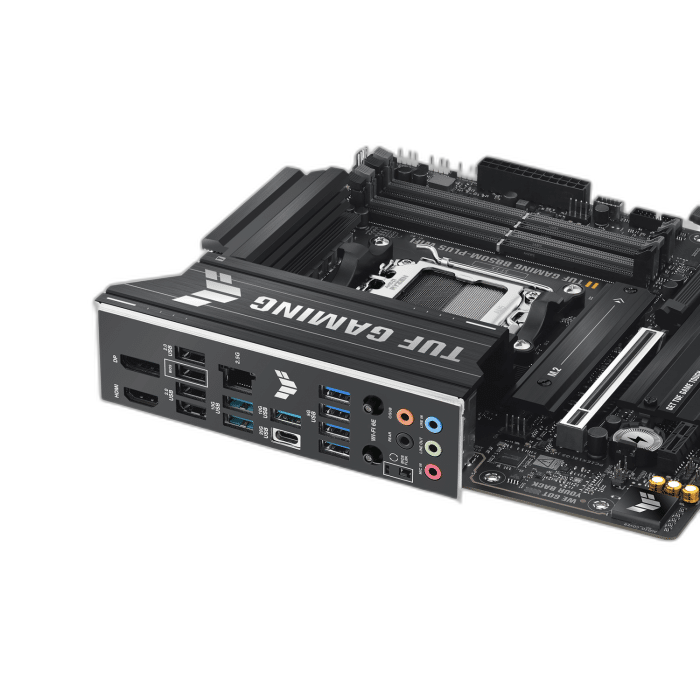

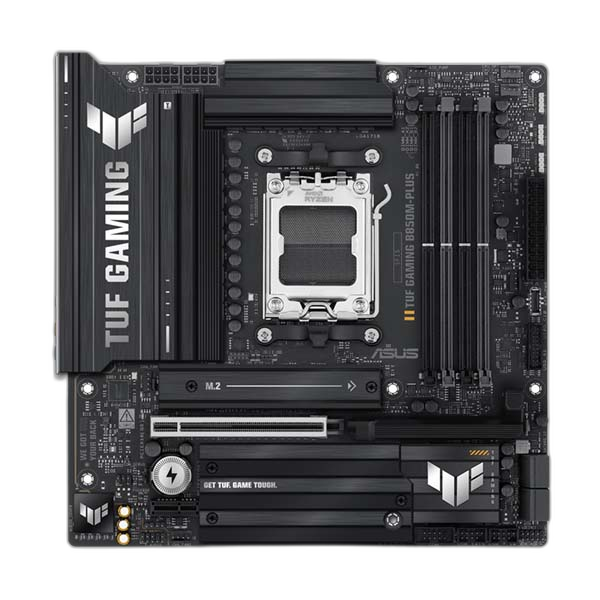

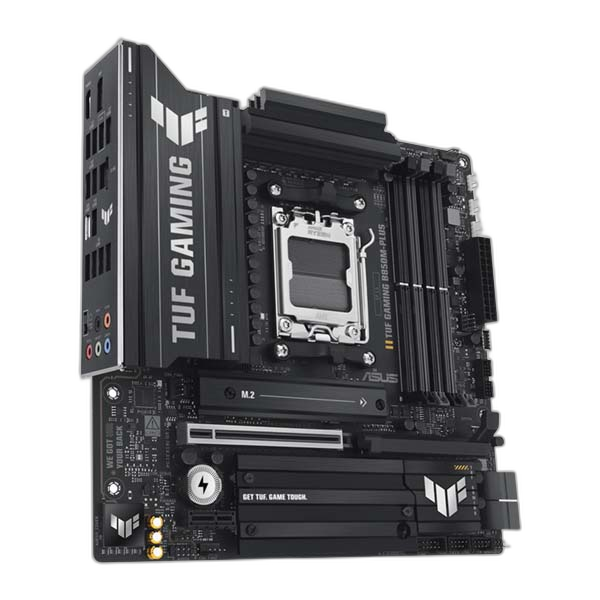

ASUS TUF GAMING B850M-PLUS WIFI DDR5 Micro-ATX Motherboard
Build a compact AMD gaming PC with the ASUS TUF GAMING B850M-PLUS WIFI. This AM5 micro-ATX board combines DDR5, three M.2 slots, Wi-Fi 6E and 2.5Gb Ethernet, with PCIe 5.0 graphics and storage support when paired with supported Ryzen 9000 or 7000 processors.
Overview
ASUS TUF GAMING B850M-PLUS WIFI DDR5 MICRO-ATX MOTHERBOARD
ASUS TUF GAMING B850M-PLUS WIFI
The ASUS TUF GAMING B850M-PLUS WIFI brings AMD Ryzen 9000, 8000 and 7000 support to a compact micro-ATX layout. DDR5 memory, three M.2 slots and wired or wireless networking give you a flexible base for a gaming or everyday performance PC. Available from AX Store in Kuwait.
AM5
Processor Socket
B850
Chipset
Micro-ATX
Board Form Factor
4 DIMMs / 256 GB
DDR5 Memory Configuration
Plan the PCIe layout around your processor
Ryzen 9000 and 7000 processors enable PCIe 5.0 on the main graphics slot and first M.2 slot. Ryzen 8000 processors use different lane configurations, so check the slot details below against your CPU.

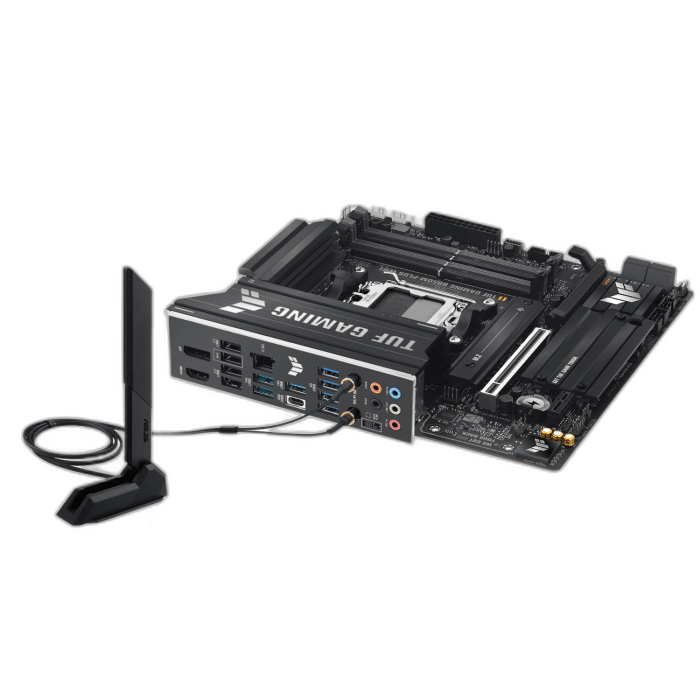

Connect by Wi-Fi or Ethernet
Wi-Fi 6E supports 2.4, 5 and 6 GHz bands alongside Realtek 2.5Gb Ethernet. Access to 6 GHz depends on regional availability, Windows 11 or later and a compatible network.
Make upgrades easier
M.2 Q-Latch, PCIe Slot Q-Release and diagnostic Q-LED indicators help with installation and troubleshooting. BIOS FlashBack adds a convenient firmware-update route; check the CPU support list and required BIOS before assembly.
Choose Firmware for the Exact Processor
Check the motherboard’s CPU support list and required BIOS before installing the processor. Keep the exact model and processor generation matched when selecting the firmware. A shared socket does not guarantee support with every installed BIOS.
Leave Room for the Complete Build
Micro-ATX is the board’s form factor. Match the case mounting points and expansion layout, then allow room for the graphics card, cooler and drive installation. Connect the required board power and front-panel headers according to the manual.
Use DDR5 in a Validated Configuration
The board provides 4 DIMMs / 256 GB of stated DDR5 memory configuration. Choose compatible unbuffered modules and check the CPU, BIOS and memory support list. Rated overclocked speeds depend on the actual kit and populated configuration rather than applying to every module automatically.
Plan the Platform Before Adding Components
Match the processor socket and supported generation, memory type, board size and storage connections. Check the exact board’s documentation before selecting components or assuming another regional version has the same features. Compare related options such as ASUS ROG Maximus Z890 Apex Motherboard – LGA1851, DDR5, WiFi 7 or ASUS ROG Strix Z890-F Gaming WiFi – DDR5, Wi-Fi 7, Thunderbolt 4, keeping the exact model and configuration in the decision. For the wider setup, explore TEAMGROUP T-FORCE DELTA RGB 32GB (2x16GB) DDR5-6000 CL30 – Black and check the connection, size or mounting requirements before pairing accessories. Browse the ASUS range at AX for more choices.
ASUS TUF GAMING B850M-PLUS WIFI Setup Choices
Match the processor socket and supported generation, memory type, board size and storage connections. Check the exact board’s documentation before selecting components or assuming another regional version has the same features. Explore AMD Ryzen 9 9950X3D – 16 Cores, 32 Threads, Up to 5.7GHz, ASUS TUF Gaming GeForce RTX 5060 Ti 16GB GDDR7 OC Edition, Corsair MP700 PRO 4TB SSD with Air Cooler.
Frequently Asked Questions
Which processor families are supported?
AMD Ryzen 9000, 8000 and 7000 desktop series; BIOS support must match CPU. Confirm the exact CPU support list and required BIOS version before installation.
Can I install DDR4 memory?
This is a DDR5 motherboard. DDR4 modules are not interchangeable with DDR5, even if a supported Intel processor also accepts DDR4 on a different board.
What should I check for the case?
Micro-ATX is the board form factor. Check case motherboard support, mounting positions, cooler clearance and access to the required power and front-panel connections.
Will motherboard display outputs work with every CPU?
Display output depends on the installed processor’s graphics support and the chosen connection. A CPU without integrated graphics needs a dedicated graphics card; the motherboard connector alone does not add graphics processing.
Does every Ryzen CPU use the same PCIe lanes?
No. Ryzen 9000 and 7000 enable the stated PCIe 5.0 graphics and first M.2 modes; Ryzen 8000 uses different PCIe 4.0 lane arrangements. Check the exact processor and slot configuration.
Build Your Setup with AX Store
Explore computers, displays and accessories for your workspace at AX Store. For help choosing the right model or checking an accessory, contact AX Store.
THE DETAILS
Technical specifications
Motherboard specifications
TUF GAMING B850M-PLUS WIFI
AMD AM5 / B850
AMD Ryzen 9000, 8000 and 7000 desktop series; BIOS support must match CPU
Micro-ATX; 244 x 244 mm
4 x DDR5 DIMM; up to 256 GB
Up to 8000+ MT/s (OC); depends on CPU, modules and configuration
Dual channel; ECC and non-ECC unbuffered DIMM
AMD EXPO; ASUS AEMP
PCIe 5.0 x16
PCIe 4.0 x8 or x4; CPU dependent
1 x PCIe 4.0 x1
3 x M.2; 4 x SATA 6Gb/s
2280; PCIe 5.0 x4 with Ryzen 9000/7000, PCIe 4.0 x4 with Ryzen 8000
2242/2260/2280; PCIe 4.0 x4 with Ryzen 9000/7000, x4 or x2 with Ryzen 8000
2280; PCIe 4.0 x4
Ryzen 9000: 0/1/5/10; Ryzen 8000: 0/1; Ryzen 7000: 0/1/10
Realtek 2.5Gb; TUF LANGuard
2x2 Wi-Fi 6E; 2.4/5/6 GHz
Country availability and Windows 11 or later
5.3; module/driver version may vary
1 x 20Gbps Type-C; 3 x 10Gbps Type-A; 4 x 5Gbps Type-A; 4 x USB 2.0
1 x 10Gbps Type-C; 2 x 5Gbps; 3 x USB 2.0 via headers
DisplayPort 1.4 up to 8K/30Hz; HDMI 2.1 up to 4K/60Hz; CPU graphics dependent
Realtek ALC1220P; 7.1 channels; 5 rear audio jacks
Up to 32-bit/192kHz; not available with 7.1 output
24-pin main; 2 x 8-pin CPU
CPU fan; CPU OPT; AIO pump; 3 chassis fan headers, all 4-pin
3 x Addressable Gen 2
256 Mb UEFI AMI; BIOS FlashBack
Windows 11; Windows 10 64-bit
2 SATA cables; WiFi Q-Antenna; M.2 rubber and screw packs; sticker; quick start guide
