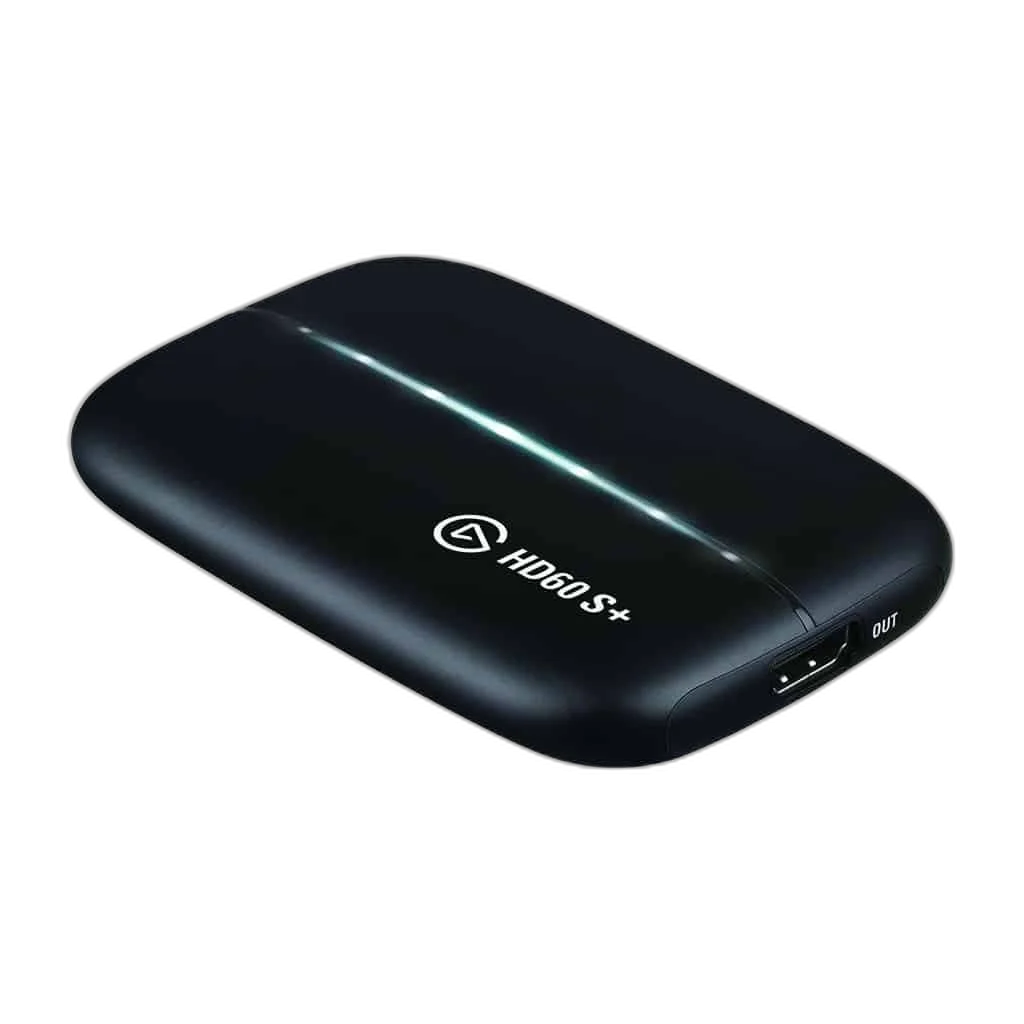

Elgato HD60 S+ Game Capture with 4K60 HDR10
Elgato HD60 S+. HD60 S+ connects an unencrypted HDMI source to your computer over USB 3.0. Pass a 4K60 HDR10 signal through to your display while capturing gameplay at supported recording resolutions.
Regular price
72.500 KWD
or 4 payments of 18.125 KWD with
Pay with card & save
69.000 KWD
Save 3.500 KWD
Overview
ELGATO HD60 S+
Elgato HD60 S+
Elgato HD60 S+: HD60 S+ connects an unencrypted HDMI source to your computer over USB 3.0. Pass a 4K60 HDR10 signal through to your display while capturing gameplay at supported recording resolutions. Explore this model at AX Store in Kuwait.
4K60 HDR10
Maximum passthrough
4K30
Maximum capture mode
1080p60
Full HD capture mode
USB 3.0
Host interface
Separate playback from recording
HDMI passthrough supports up to 2160p60 HDR10. Recording supports 1080p60 or 2160p30, so a 4K60 display signal does not mean 4K60 capture. Check the actual computer, software and selected input before the session, then make a short test recording with the intended source.
Connect game audio and video
HDMI input and output sit alongside USB-C and a stereo 3.5 mm line input. Use compatible capture software on a suitably equipped Windows PC or Mac.
Choose the Host Connection Before the Source
Connect to a suitable USB 3.0 port on the supported computer. Use the correct data connection rather than a charge-only cable, then select the capture device in compatible recording software. The computer and application must support the format actually supplied by the HDMI source.
Keep Capture and Display Routing Distinct
HDMI passthrough sends a compatible source to the gaming display while the computer captures video. The passthrough limit and capture format are separate specifications. Choose a supported combination for the source, display, cable and software instead of treating a high-resolution display signal as proof of the recording format.
Plan the Commentary Audio Separately
A compatible USB microphone provides a direct commentary input to the recording computer. HDMI source audio and microphone commentary remain separate sources to balance in the application. Use suitable monitoring headphones and a short test recording to confirm which signals the audience actually hears.
Build the Scene Around the Actual Inputs
Frame the camera or gameplay source, choose the recording format and check the complete signal path before starting the session. A Stream Deck can add supported software actions, while mounting hardware and microphones serve separate production tasks. None of those accessories replaces the capture device’s required host connection.
Build the Video and Commentary Route
Choose the source connection and computer connection for this exact capture device. Plan display routing separately where needed, and select a microphone and monitoring arrangement for your own commentary. Compare related options such as AVerMedia GC573 Live Gamer 4K Capture Card, 2160p@60Hz HDR or ASUS TUF Gaming CU4K30 USB Capture Box - 4K30 Capture / 4K60 HDR Passthrough, keeping the exact model and configuration in the decision. For the wider setup, explore HyperX QuadCast 2 USB Microphone, 24-bit Studio Recording and check the connection, size or mounting requirements before pairing accessories. Browse the Elgato range at AX for more choices.
Elgato HD60 S+ Setup Choices
Choose the source connection and computer connection for this exact capture device. Plan display routing separately where needed, and select a microphone and monitoring arrangement for your own commentary. Explore Elgato Wave 3 MK.2 USB Condenser Microphone - Wave FX / Black, Elgato Stream Deck MK.2, 15-Key Customizable Controller, Razer Key Light Chroma - All-In-One Lighting Kit.
Frequently Asked Questions
Is this an internal or external capture device?
It is an external USB capture device for a compatible Windows PC or Mac with the required USB connection.
What is the highest listed capture mode?
HD60 S+ supports 2160p30 or 1080p60 capture; its 4K60 HDR10 passthrough is a separate capability.
Can it capture protected streaming-service video?
The specified input is unencrypted HDMI. HDCP-protected content is not a supported capture source.
Are cameras, microphones and HDMI accessories included?
Use the exact package list for this product. Cameras, microphones and other scene equipment are separate purchases unless expressly included; Cam Link camera connections need the matching HDMI cable and separate camera power.
Does a microphone connect to an HDMI input?
A microphone needs its own appropriate recording connection. A suitable USB microphone can provide computer commentary alongside video capture; an HDMI input is not an XLR microphone preamp.
What should I check before going live?
Confirm the source format, device selection, recording computer requirements and commentary routing. Make a short test and review both picture and sound before the full production.
Build Your Setup with AX Store
Explore computers, displays and accessories for your workspace at AX Store. For help choosing the right model or checking an accessory, contact AX Store.
Compare Elgato Game Capture Neo Capture Device - White. Match the exact model, connection and configuration to your setup.
THE DETAILS
Technical specifications
Product specifications
Elgato
HD60 S+
USB 3.0, 5 Gbps, Type-C
HDMI 2.0; unencrypted input and passthrough output
2160p60 HDR10
2160p30, 1080p60, 1080i, 720p60, 576p, 480p
3.5 mm TRS stereo line input
USB 3.0 port; compatible Windows PC or Mac
HD60 S+, USB 3.0 Type-C cable and HDMI 2.0 cable
