MSI MPG Z790 CARBON WIFI ATX Motherboard
MSI

MSI MPG Z790 CARBON WIFI ATX Motherboard

MSI MPG Z790 CARBON WIFI combines the Z790 chipset and LGA1700 socket with DDR5 desktop memory support. Its ATX layout provides 4 DIMM slots, 5 M.2 storage positions and 6 SATA ports for a compatible desktop configuration.

SKU: 911-7D89-001

Regular price 173.500 KWD

or 4 payments of 43.375 KWD with

Pay with card & save

KNET Mastercard Gateway
165.000 KWD Save 8.500 KWD

Overview

MSI MPG Z790 CARBON WIFI

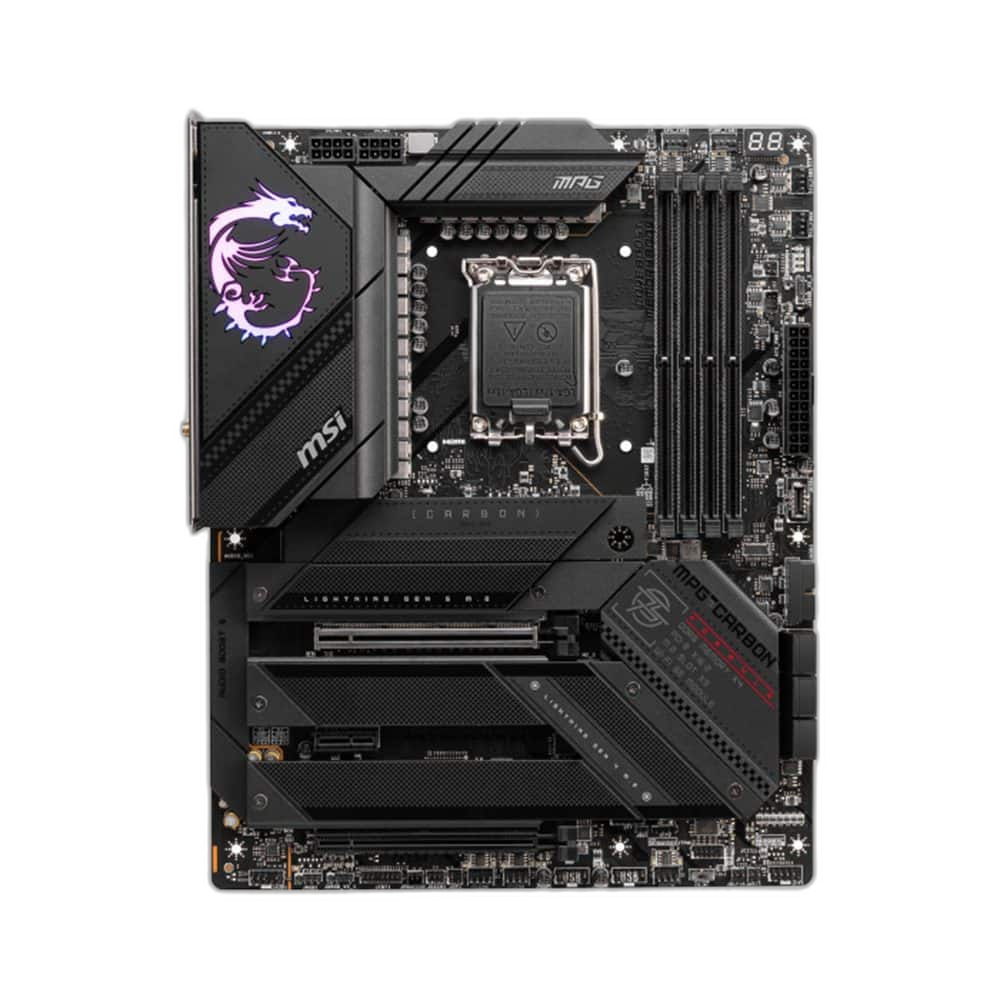

MSI MPG Z790 CARBON WIFI product view

DDR5 Desktop Platform with a LGA1700 Socket

MSI MPG Z790 CARBON WIFI combines the Z790 chipset and LGA1700 socket with DDR5 desktop memory support. Its ATX layout provides 4 DIMM slots, 5 M.2 storage positions and 6 SATA ports for a compatible desktop configuration.

LGA1700

CPU socket

DDR5

Memory generation

4 DIMMs

Memory slots

5 M.2

Physical storage positions

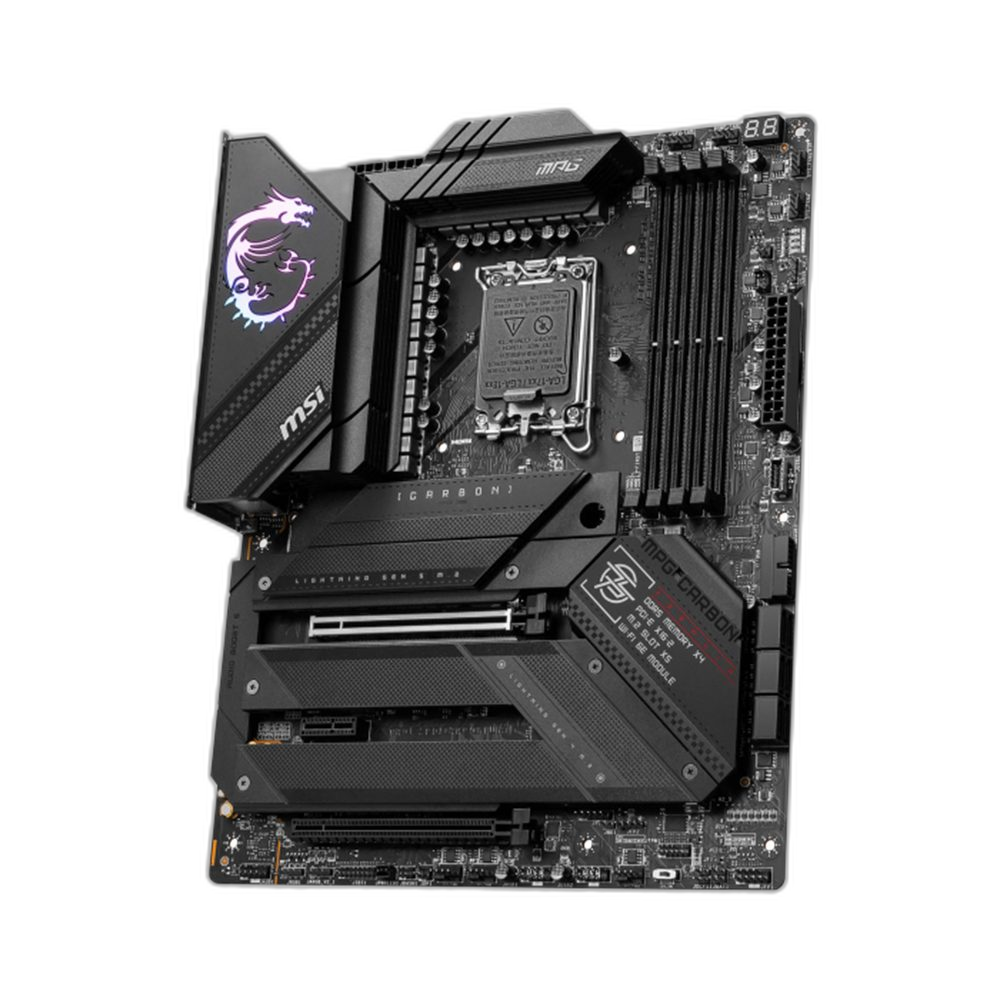

MSI MPG Z790 CARBON WIFI product view

Match the Processor and BIOS

The board supports compatible 12th, 13th and 14th Generation Intel Core processors, subject to the exact CPU-support list and required BIOS. Check the exact processor entry and required BIOS version before installation, especially when updating an existing system. The primary slot supports up to PCIe 5.0 x16, with the M2_2 sharing condition. Additional connections provide PCIe 4.0 x4 and PCIe 3.0 x1. Plan the graphics card and other expansion devices around those connections, keeping the processor’s capabilities and the motherboard’s physical slot layout together as one platform.

4 Slots for DDR5 Memory

The board uses 4 DDR5 DIMM slots with dual-channel support. Select a compatible kit from the manufacturer’s memory guidance and fit the modules in the recommended positions. Memory profiles and attainable speed depend on the CPU, installed BIOS and module arrangement; a kit’s advertised profile does not guarantee the same operating speed with every system configuration.

Plan the Storage Positions

M2_1 supports PCIe 4.0 x4; M2_2 supports PCIe 5.0 x4; M2_3, M2_4 and M2_5 support PCIe 4.0 x4, with SATA M.2 support also provided by M2_5. Installing an M.2 PCIe SSD in M2_2 reduces PCI_E1 to x8. SATA_A1 and SATA_A2 do not support RAID. The board also provides 6 SATA 6Gb/s ports. Check the slot-sharing conditions before choosing the positions for the boot SSD, additional storage and expansion cards. The number of physical connectors should be considered alongside any shared lanes or processor-generation requirements in the board’s supported configuration.

Network Connections for the Desk

Intel 2.5Gbps LAN provides the wired network connection. Wi-Fi 6E and Bluetooth are included; 6 GHz operation requires compatible operating-system, router and local regulatory support. The available connection speed also depends on the surrounding network, connected router or switch, operating system and driver support. Choose the network path around the system’s intended use, leaving access to the rear connectors and any wireless antennas in the completed desk arrangement.

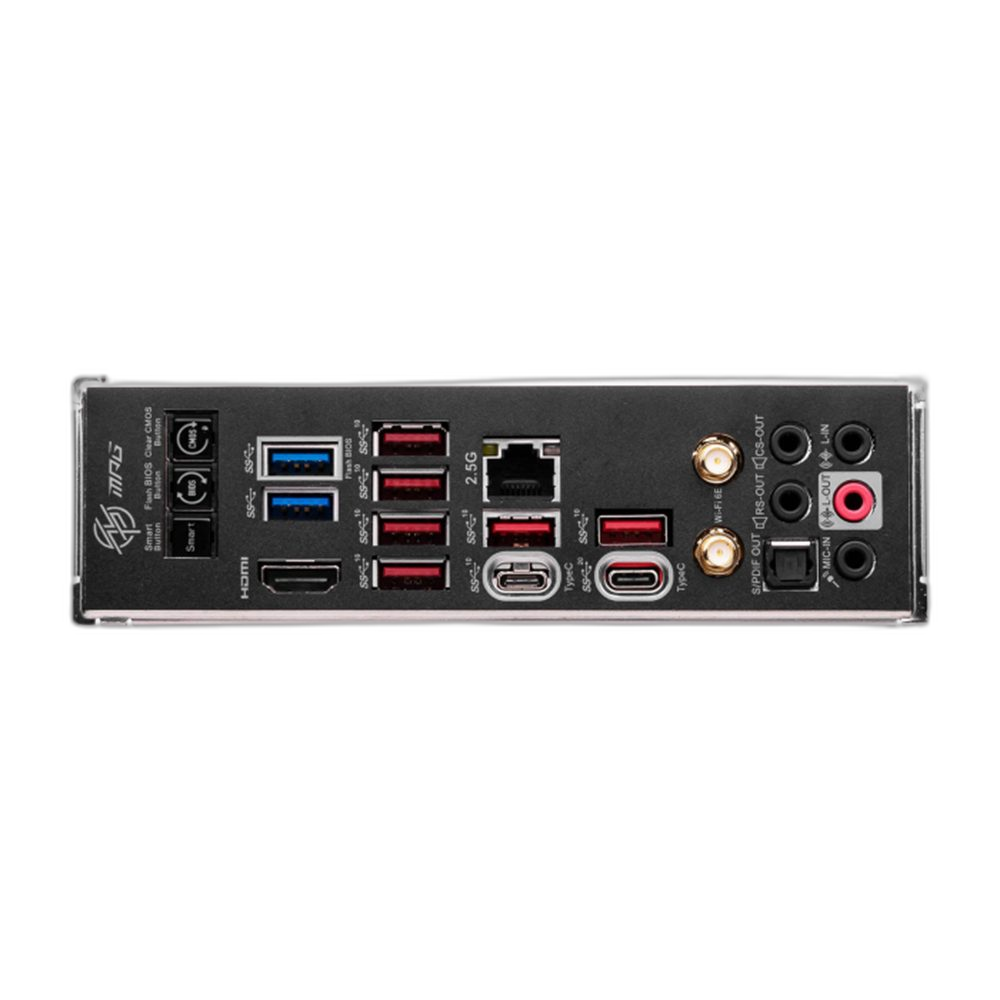

Display, USB and Audio Connections

The board provides HDMI 2.1. The motherboard display outputs require a supported processor with integrated graphics. 2 × USB 5Gbps Type-A, 6 × USB 10Gbps Type-A, 1 × USB 10Gbps Type-C and 1 × USB 20Gbps Type-C are available on the rear panel. Realtek ALC4080 with optical S/PDIF supplies onboard audio. Match each external device with the port’s supported function, including the display cable, audio connection and data interface needed for the equipment being used.

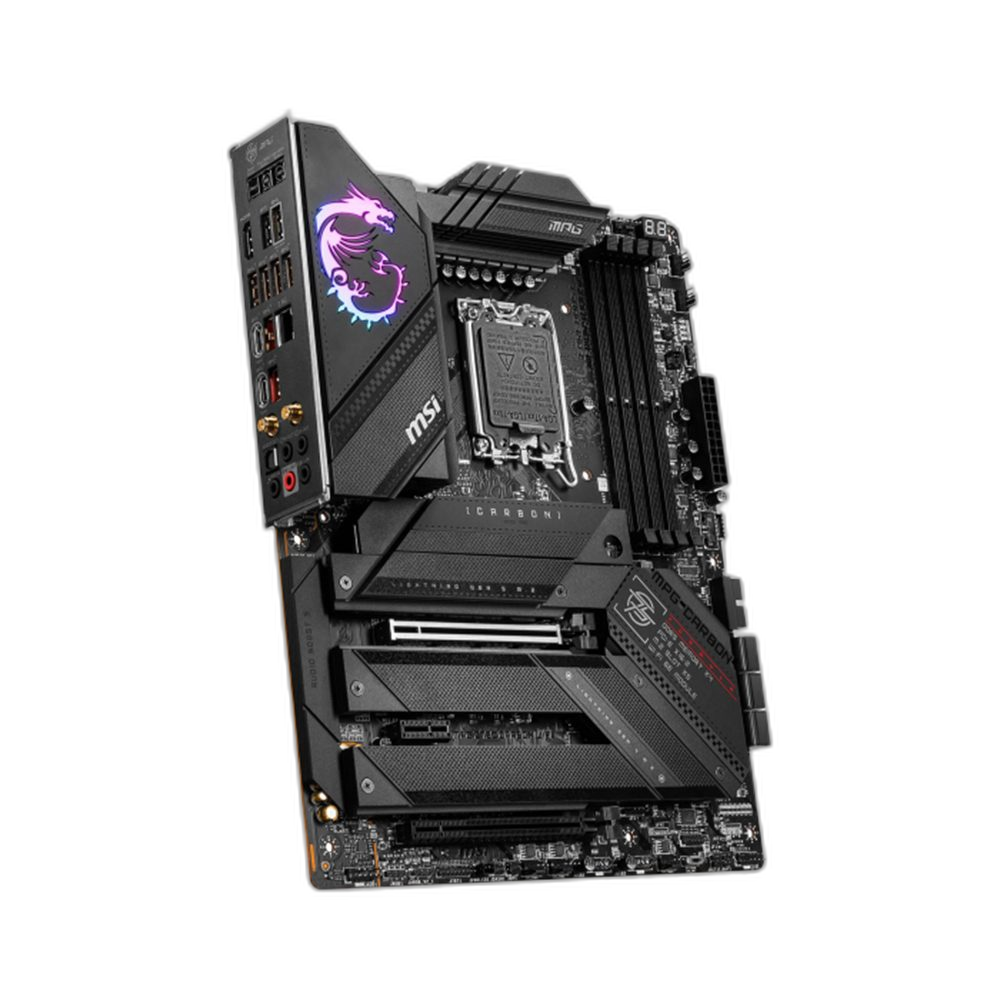

MSI MPG Z790 CARBON WIFI product view

Motherboard

MSI MPG Z790 CARBON WIFI

Chipset

Z790

CPU socket

LGA1700

A ATX Board for the Case

The ATX board measures 305 × 244 mm. Flash BIOS, Clear CMOS, a Smart button, two-digit debug display and EZ Debug LEDs support setup. Check the case mounting positions, power connections and cooling layout before assembly. Follow the board’s front-panel and fan-header instructions when connecting the case, and leave the intended airflow routes clear around the processor, memory and installed expansion cards.

Complete Your Workspace

Explore Motherboards to compare suitable options and complete your setup.

Frequently Asked Questions

Which processors can be installed?

compatible 12th, 13th and 14th Generation Intel Core processors, subject to the exact CPU-support list and required BIOS. Check the exact CPU-support list and required BIOS.

Which memory generation is required?

DDR5 desktop DIMMs, with 4 slots and dual-channel support. The kit must be compatible with the CPU and motherboard.

How is M.2 storage configured?

M2_1 supports PCIe 4.0 x4; M2_2 supports PCIe 5.0 x4; M2_3, M2_4 and M2_5 support PCIe 4.0 x4, with SATA M.2 support also provided by M2_5. Installing an M.2 PCIe SSD in M2_2 reduces PCI_E1 to x8. SATA_A1 and SATA_A2 do not support RAID.

What network connections are included?

Intel 2.5Gbps LAN. Wi-Fi 6E and Bluetooth are included; 6 GHz operation requires compatible operating-system, router and local regulatory support.

Can every supported CPU use the display outputs?

No. The motherboard’s display outputs require a supported CPU with integrated graphics.

Build Your Setup with AX Store Kuwait

Explore computers, displays and accessories for your workspace at AX Store Kuwait. For help choosing the right model or checking an accessory, contact AX Store.

THE DETAILS

Technical specifications

Motherboard Specifications

Motherboard

MSI MPG Z790 CARBON WIFI

Chipset

Z790

CPU socket

LGA1700

Processor support

compatible 12th, 13th and 14th Generation Intel Core processors, subject to the exact CPU-support list and required BIOS

Form factor

ATX

Memory slots

4 × DDR5 DIMM; dual channel

M.2 storage positions

5

SATA ports

6 × SATA 6Gb/s

Storage configuration

M2_1 supports PCIe 4.0 x4; M2_2 supports PCIe 5.0 x4; M2_3, M2_4 and M2_5 support PCIe 4.0 x4, with SATA M.2 support also provided by M2_5. Installing an M.2 PCIe SSD in M2_2 reduces PCI_E1 to x8. SATA_A1 and SATA_A2 do not support RAID.

Expansion configuration

The primary slot supports up to PCIe 5.0 x16, with the M2_2 sharing condition. Additional connections provide PCIe 4.0 x4 and PCIe 3.0 x1.

Ethernet

Intel 2.5Gbps LAN

Wireless connectivity

Wi-Fi 6E and Bluetooth are included; 6 GHz operation requires compatible operating-system, router and local regulatory support.

Audio

Realtek ALC4080 with optical S/PDIF

Display outputs

HDMI 2.1; require CPU integrated graphics

Rear data connections

2 × USB 5Gbps Type-A, 6 × USB 10Gbps Type-A, 1 × USB 10Gbps Type-C and 1 × USB 20Gbps Type-C

Physical layout

The ATX board measures 305 × 244 mm.

Setup and diagnostic features

Flash BIOS, Clear CMOS, a Smart button, two-digit debug display and EZ Debug LEDs support setup.

Memory profiles

Intel XMP 3.0

Front USB-C header

USB 20Gbps

Power connectors

24-pin ATX plus 2 × 8-pin CPU power
