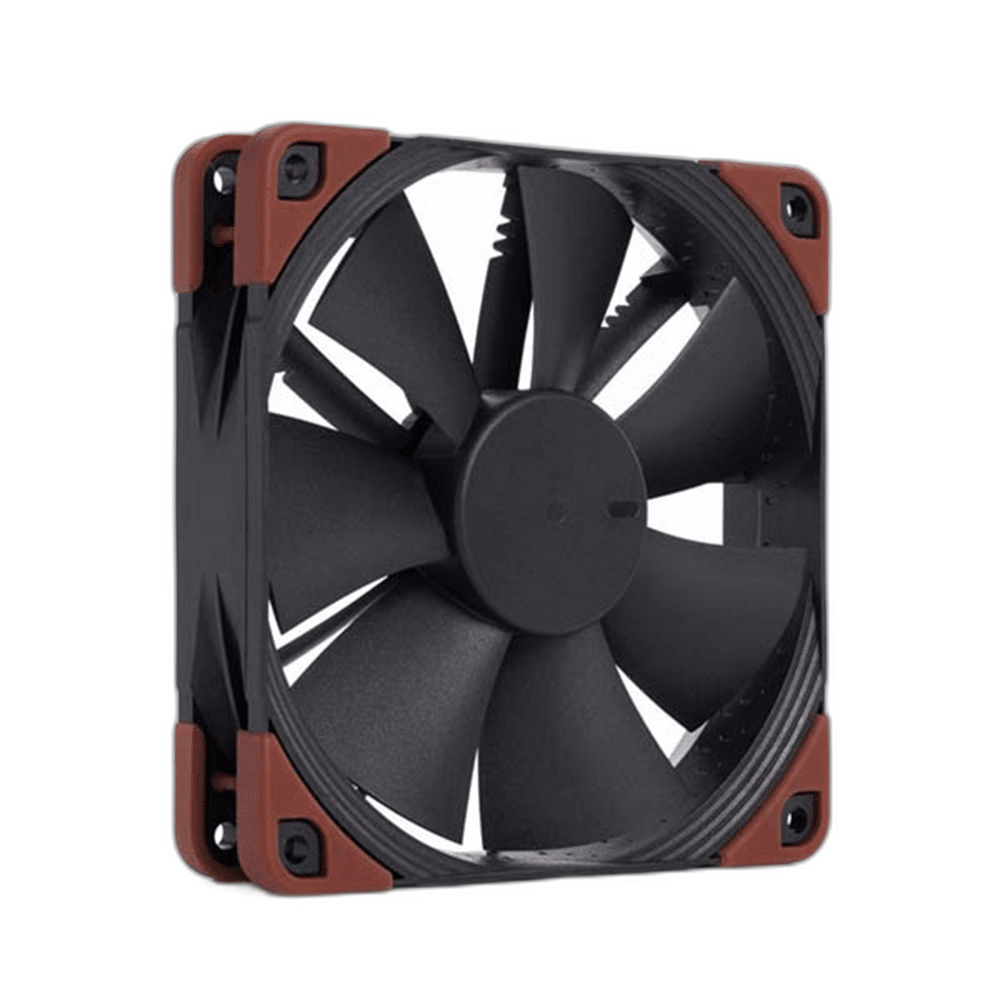

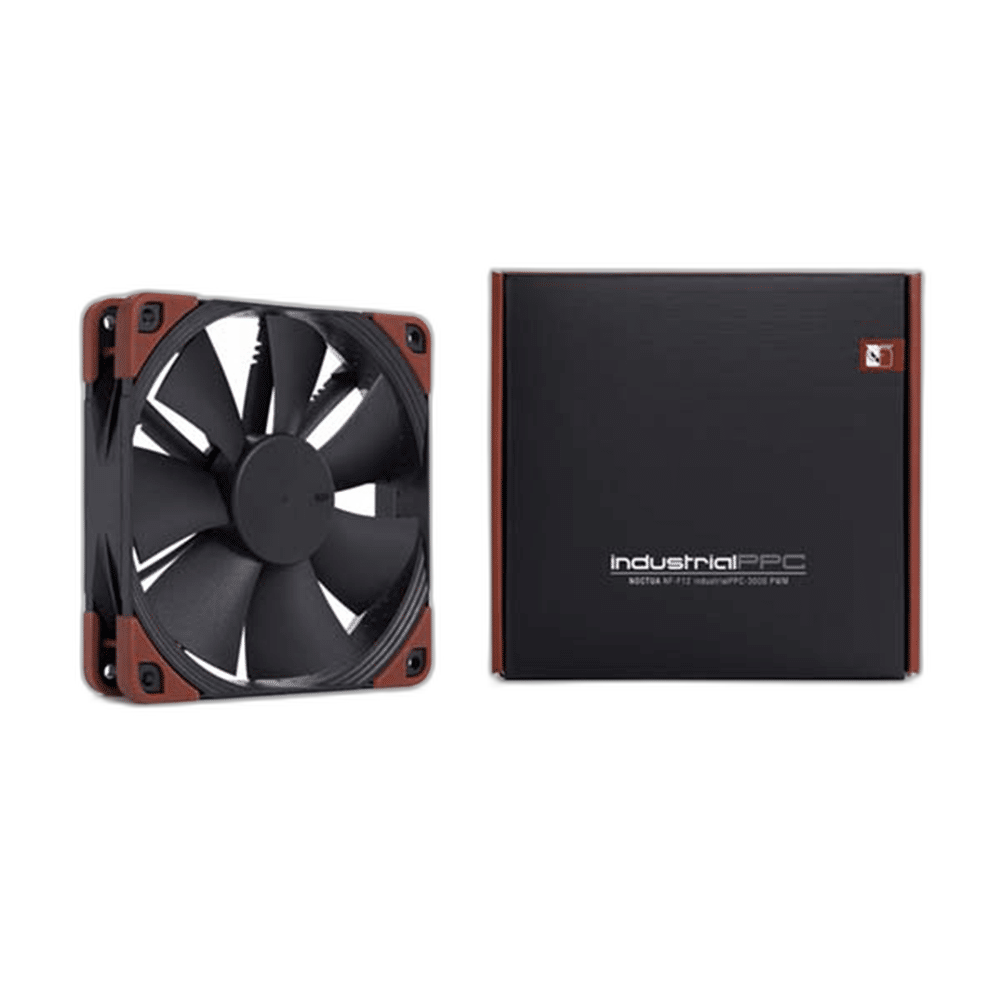

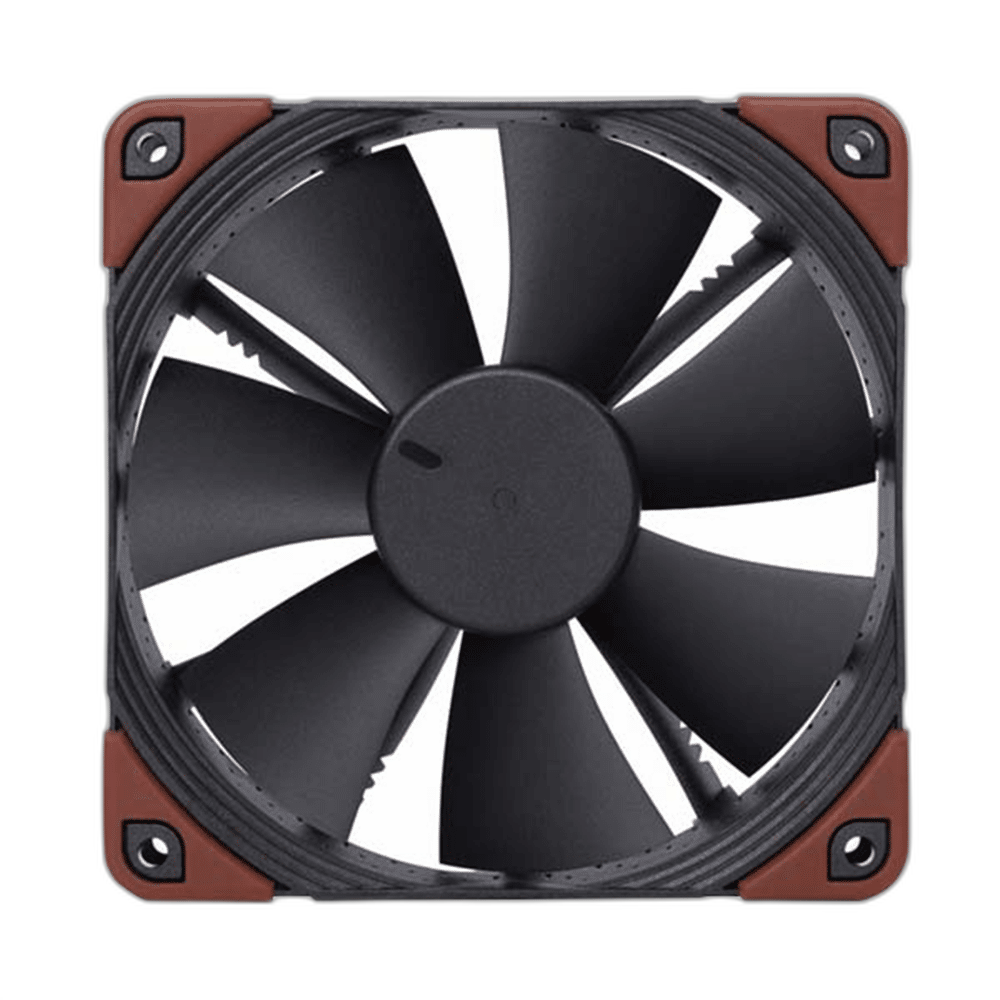

Noctua NF-F12 Industrial PPC-3000 PWM Fan, 120mm - Black
Noctua NF-F12 industrialPPC-3000 PWM is a 120 mm four-pin PWM fan rated for operation up to 3000 RPM. The industrialPPC design is built for demanding airflow and pressure requirements. Its SSO2 bearing and 12 V connection support a compatible case or radiator cooling position.
Regular price
9.500 KWD
or 4 payments of 2.375 KWD with
Pay with card & save
9.000 KWD
Save 0.500 KWD
Overview
NOCTUA NF-F12 INDUSTRIALPPC-3000 PWM
Noctua NF-F12 industrialPPC-3000 PWM
Noctua NF-F12 industrialPPC-3000 PWM is a 120 mm four-pin PWM fan rated for operation up to 3000 RPM. The industrialPPC design is built for demanding airflow and pressure requirements. Its SSO2 bearing and 12 V connection support a compatible case or radiator cooling position. Explore this model at AX Store in Kuwait.
120 mm
Fan size
3000 RPM
Maximum speed
PWM
Speed control
1
Fan in pack
120 mm Mounting Format
The fan measures 120 × 120 × 25 mm, with standard 105 × 105 mm mounting-hole spacing. Check the available case, radiator or heatsink mount before fitting it. Leave additional room for the cable and any vibration pads used by the selected mounting arrangement.
Controlled Speed up to 3000 RPM
The four-pin PWM interface supports adjustment through a compatible motherboard header or fan controller. Maximum rotational speed is 3000 RPM. Set the fan curve for the cooling load and the acoustic preference of the system, rather than running at the maximum continuously when the workload does not need it.
Airflow and Static Pressure
Maximum airflow is 186.7 m³/h / 109.89 CFM, with static pressure rated up to 7.63 mm H₂O. These ratings describe the fan under the manufacturer’s measurement conditions. Consider the restriction of dust filters, radiator fins and case grilles when choosing where to place the fan and how to arrange the complete airflow path.
SSO2 Bearing Design
The fan uses Noctua’s SSO2 bearing design. The industrialPPC design is built for demanding airflow and pressure requirements. Secure the frame correctly and keep the blades clear of cables. The bearing and motor work together across the selected speed range, while the installed mounting arrangement affects how vibration is transmitted into the case.
A 12 V Fan Connection
Use the fan’s four-pin connector with a suitable 12 V fan header or controller. The typical input power is 3.17 W. Check the combined electrical load before placing several fans on a splitter or controller channel, and choose a cable route that leaves the airflow path clear.
Maximum airflow
186.7 m³/h / 109.89 CFM
Maximum static pressure
7.63 mm H₂O
Rated voltage
12 V
Choose the Cooling and Noise Balance
The maximum acoustic rating is 43.5 dB(A). The operating sound will depend on the selected speed and surrounding case structure. Use PWM adjustment to match the fan to the workload, with the case arranged to let air enter and leave through suitable openings.
Check Fan Size and the Control Connection
Match the fan size, mounting position and power or lighting connector to the system. Check the controller or hub requirements before mixing fans from different ranges. Compare related options such as LIAN LI UNI FAN TL LCD FLEX Reverse Blade Wireless 120mm ARGB Fan - 1 Pack or LIAN LI UNI FAN TL LCD FLEX Wireless 120mm ARGB Fans - 3 Pack, keeping the exact model and configuration in the decision. For the wider setup, explore NZXT Kraken X53 RGB 240mm Liquid Cooler, White and check the connection, size or mounting requirements before pairing accessories. Browse the Noctua range at AX for more choices.
Noctua NF-F12 industrialPPC-3000 PWM Setup Choices
Match the fan size, mounting position and power or lighting connector to the system. Check the controller or hub requirements before mixing fans from different ranges.
Frequently Asked Questions
How many fans are included?
One Noctua NF-F12 industrialPPC-3000 PWM fan.
Which size does it use?
120 × 120 × 25 mm, with 105 × 105 mm mounting-hole spacing.
How is speed controlled?
Through a suitable four-pin PWM motherboard header or fan controller.
What voltage does it use?
12 V.
What are its maximum airflow and noise ratings?
186.7 m³/h / 109.89 CFM and 43.5 dB(A), respectively.
Build Your Setup with AX Store
Explore computers, displays and accessories for your workspace at AX Store. For help choosing the right model or checking an accessory, contact AX Store.
THE DETAILS
Technical specifications
Fan Hardware
Noctua NF-F12 industrialPPC-3000 PWM
120 × 120 × 25 mm
105 × 105 mm
1 fan
3000 RPM
186.7 m³/h / 109.89 CFM
7.63 mm H₂O
43.5 dB(A)
SSO2
12 V
3.17 W
4-pin PWM
400 mm
3.6 W
