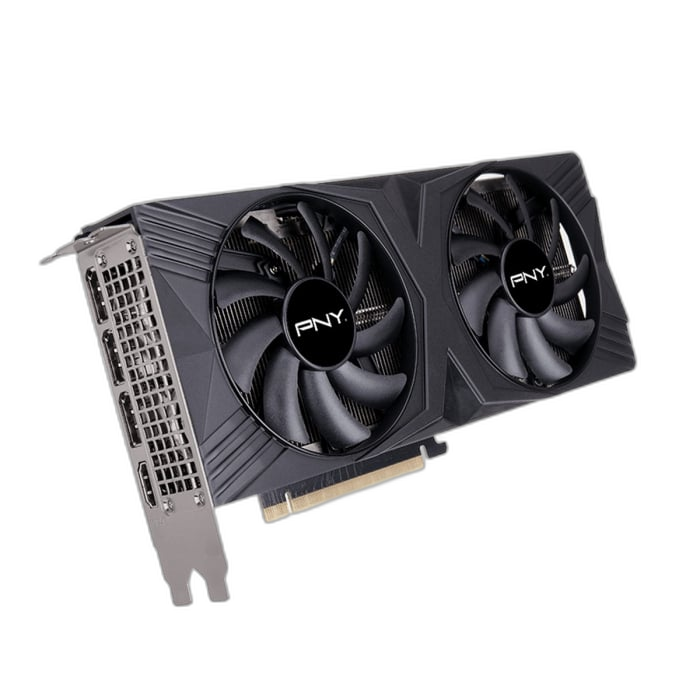

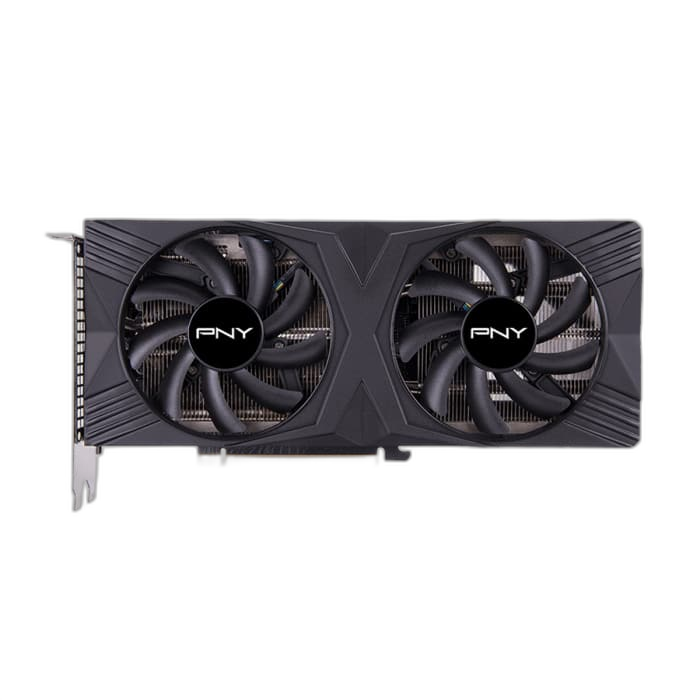

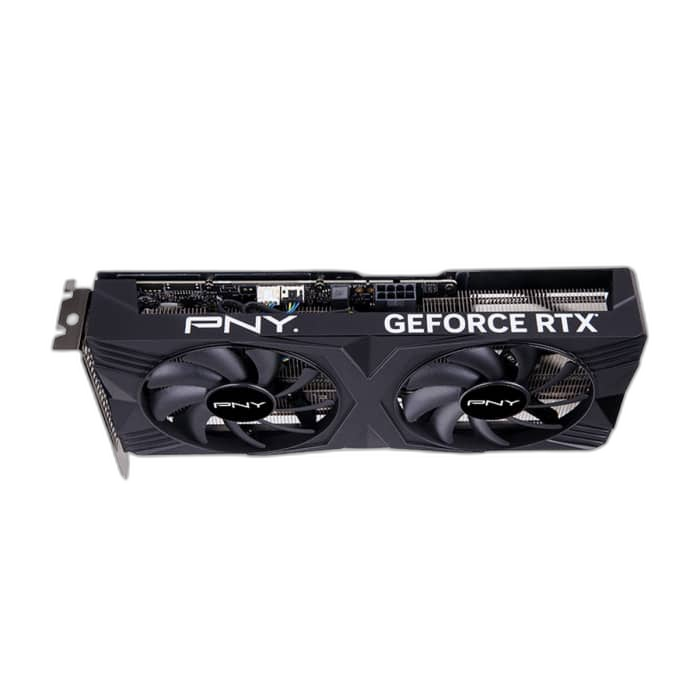

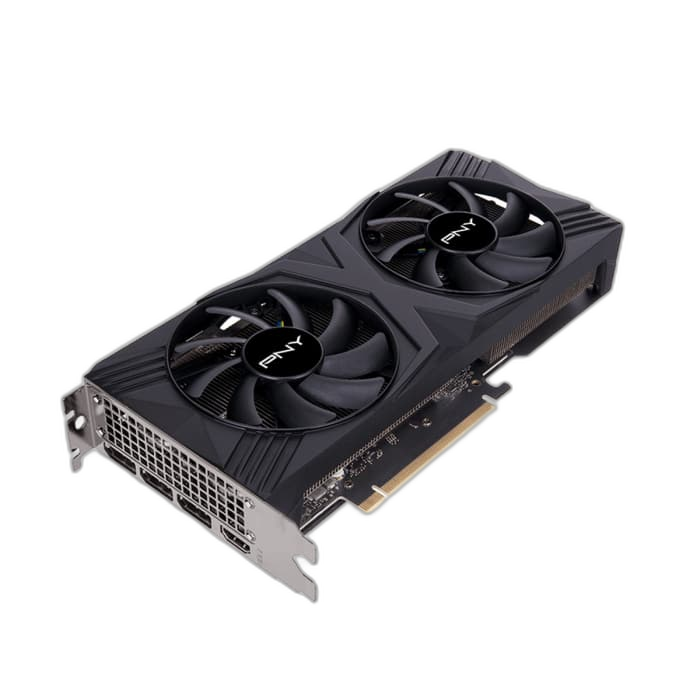

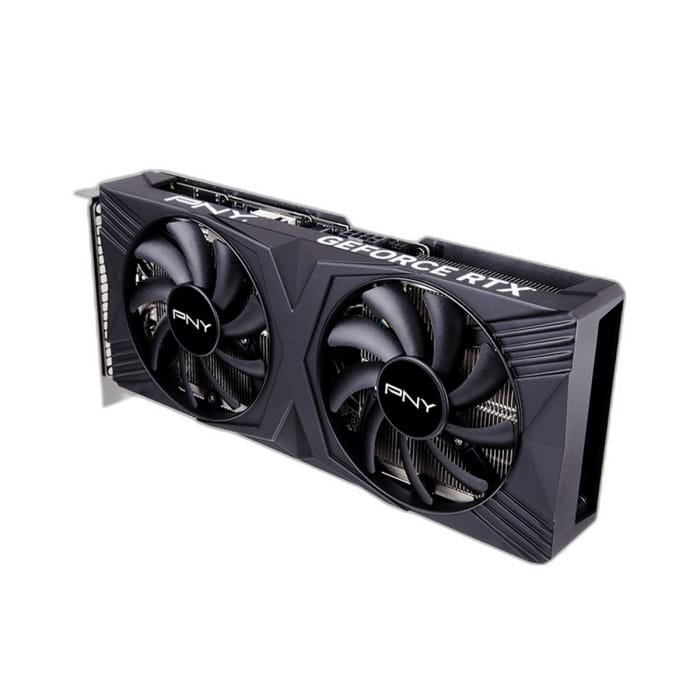

PNY GeForce RTX 4060Ti 16GB Verto Dual Fan GDDR6

Graphics memory

CUDA cores

Memory interface

Listed boost clock

Dedicated RTX 4060 Ti Graphics

The NVIDIA RTX 4060 Ti GPU provides 4352 CUDA cores for supported graphics and computing work. Use the card with compatible drivers and applications, choosing the rendering, display and graphics settings around the work being done. The final experience also depends on the processor, memory and software in the complete computer; core count alone does not describe every application’s performance.

16 GB GDDR6 Graphics Memory

This model has 16 GB GDDR6 on a 128-bit memory interface, with a listed memory data rate of 18 Gbps. Dedicated graphics memory holds the data used by the GPU during supported workloads. Choose application settings and project requirements around the card’s actual memory capacity, especially when comparing different capacities within the same GPU family.

A Model-Specific Boost Specification

The listed boost clock is 2535 MHz. This value belongs to the specific card model and should be distinguished from the reference GPU specification or another factory-overclocked edition. A clock specification is not a frame-rate guarantee: workload, temperature, power configuration and the rest of the system affect the result achieved in use.

Connect the Displays to the Card

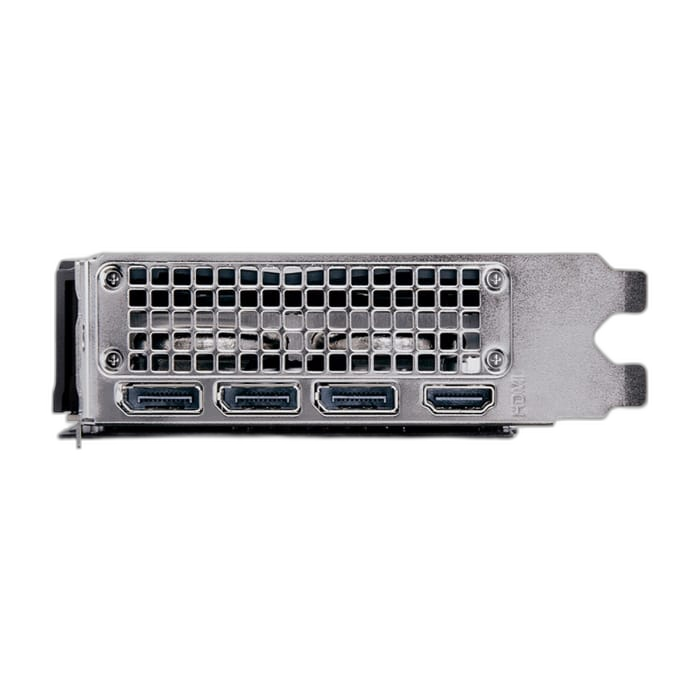

3 × DisplayPort 1.4a and 1 × HDMI 2.1a. 4 simultaneous displays are supported within the card’s display capabilities. Connect the monitors directly to the graphics card and check the display mode, cable and monitor requirements together. Port specifications describe supported output capabilities; they do not promise that a game will render at the same frame rate as a display’s maximum refresh setting.

Physical Size and Installation

The card’s physical specification is Dual-slot, full-height. The VERTO design uses dual-fan air cooling. Check the case’s graphics-card space and nearby expansion slots before fitting it, allowing room for the complete card and its power connector. The host interface is PCI Express 4.0 x16 physical; x8 active. Install the card in a suitable motherboard graphics slot and follow the case and card mounting guidance.

Graphics card

PNY GeForce RTX 4060 Ti 16GB VERTO Dual Fan

GPU

NVIDIA RTX 4060 Ti

Graphics memory

16 GB GDDR6

Which GPU and memory does this card use?

NVIDIA RTX 4060 Ti with 16 GB GDDR6.

What boost clock is specified?

2535 MHz. Actual operating clocks depend on workload and operating conditions.

What physical space does it require?

Dual-slot, full-height. Allow additional space for the power connection and follow the case’s installation guidance.

Which power connections are needed?

Choose the system power supply around the complete computer and the card’s requirements. The card’s listed power figure is 165 W. Its supplementary connection is 1 × 8-pin PCIe.

How can displays be connected?

3 × DisplayPort 1.4a and 1 × HDMI 2.1a. Up to 4 displays can be used within supported display configurations.
