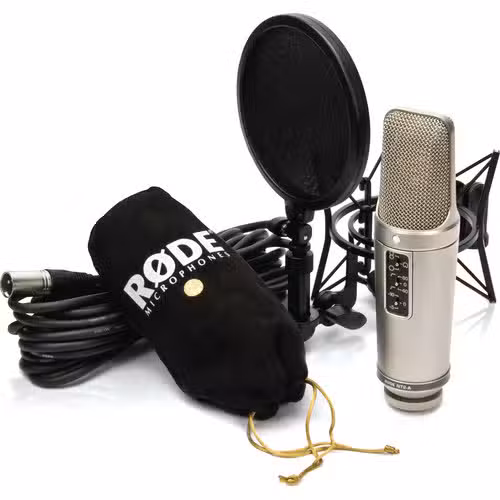

RODE NT2-A Large-Diaphragm Studio Microphone, XLR

Cardioid / Omni / Figure-eight

Condenser capsule

Pad and high-pass switches

Analogue output

Choose your recording pattern

Select cardioid, omnidirectional or figure-8 pickup to suit a solo voice, the room or a two-sided recording setup. Aim the microphone toward the performer and listen to the actual recording while adjusting distance and angle for the voice, instrument and room.

Adapt to the source

Switch the pad between 0, −5 and −10 dB, and the high-pass filter between flat, 40 Hz and 80 Hz. Internal capsule shock mounting helps isolate mechanical vibration.

Three Patterns for Different Recording Positions

Cardioid, omnidirectional and figure-eight pickup provide different ways to work with the performer and room. Cardioid concentrates the main pickup toward the front; figure-eight captures from opposing sides, and omnidirectional capture includes sound around the microphone. Choose the pattern while listening to the actual source.

A Side-Address One-Inch Studio Capsule

The NT2-A uses a 1-inch condenser capsule and a side-address recording position. Aim the front of the microphone toward the performer for the chosen pattern. The microphone’s controls let you shape the capture arrangement before the signal reaches the connected recording equipment.

Power the XLR Microphone Input Correctly

The microphone requires 24 V or 48 V phantom power from a suitable XLR microphone input. Use an appropriate XLR-to-XLR cable and set input gain around the performance. This model does not include a USB recording interface; computer recording requires an external interface or mixer.

How does this exact microphone connect?

The microphone connects through its analogue XLR output to a suitable external microphone input.

Which pickup pattern does it offer?

Cardioid, omnidirectional and figure-eight are selectable.

What recording equipment is required?

For XLR recording, use a suitable external microphone preamp, interface or mixer and the correct microphone cable.

Where should I address the microphone?

Use the front side of the grille for this side-address condenser. Keep the selected pattern and recording position in view.

What frequency range is specified?

20Hz - 20kHz.

Are all recommended products required?

The recommendations are alternative recording and monitoring setups. Choose the supporting arm, headphone output and recording connection for the actual session rather than buying every listed interface or headphone model.

What power arrangement is specified?

P24 and P48. Use the connection and microphone input appropriate for this model.
