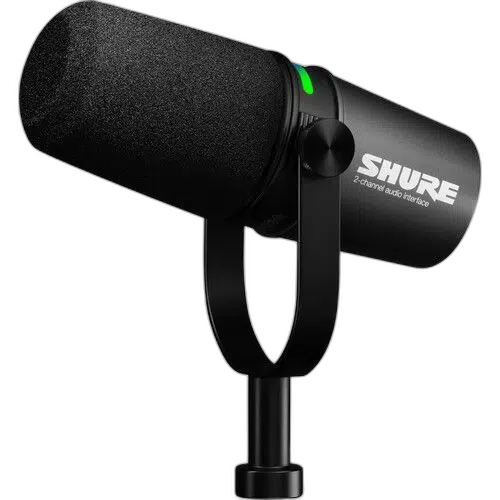

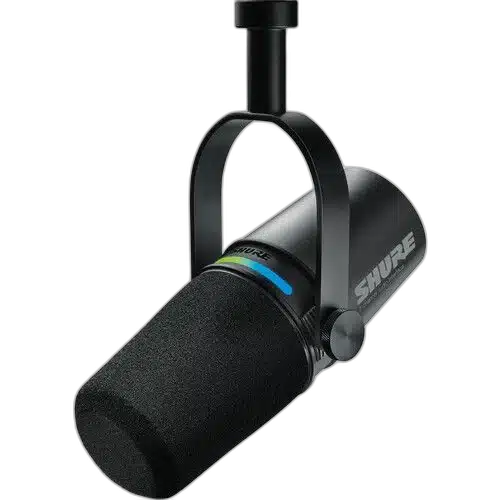

SHURE MV7I Smart Microphone + Interface for Podcasts
Shure MV7i dynamic USB-C microphone with a built-in two-channel interface, combo XLR/1/4-inch input, up to 60 dB input gain, 48 V phantom power for an external mic, onboard DSP and 3.5 mm monitoring.
Overview
SHURE MV7I
Two Recording Channels in One USB Microphone
The Shure MV7i combines a dynamic cardioid microphone with a built-in interface for a second microphone or instrument. Connect the MV7i to a compatible computer or mobile device through USB-C, then use its rear combo input for the additional source. MOTIV software and onboard processing give you a compact route to a two-source podcast or recording session.
Dynamic
Microphone Type
Cardioid
Polar Pattern
50 Hz–16 kHz
Frequency Range
USB-C
Two-Channel Audio Interface
Your Voice and a Second Source
The MV7i records its own microphone alongside an external source connected to the rear input. Use that arrangement for a two-person conversation, or combine a voice with a suitable instrument connection. The built-in interface puts the two sources into one USB device, helping reduce the number of separate components needed around a small recording desk.

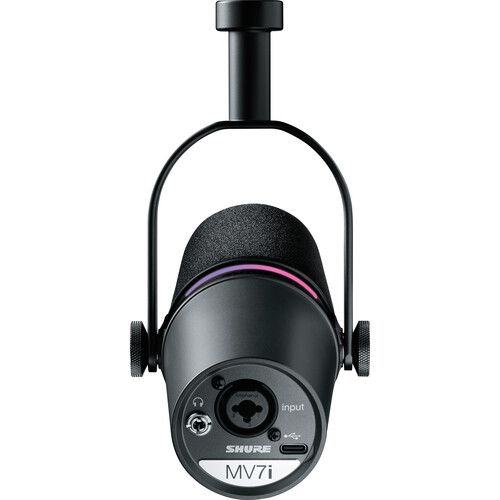

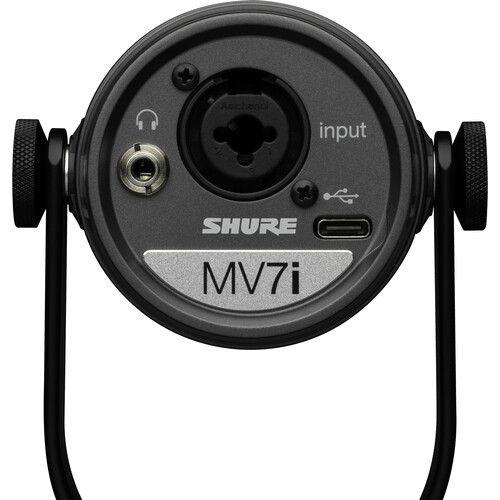

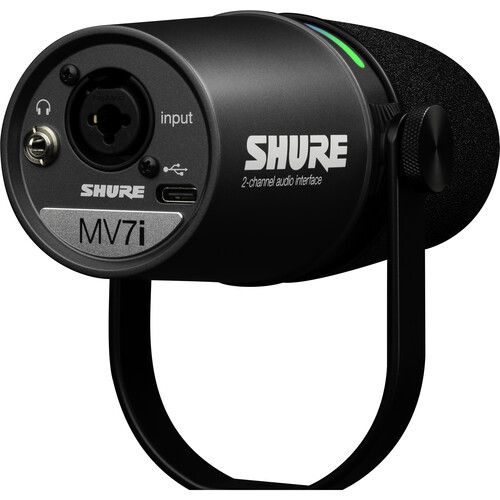

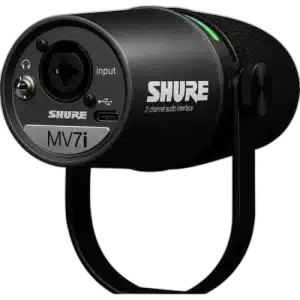

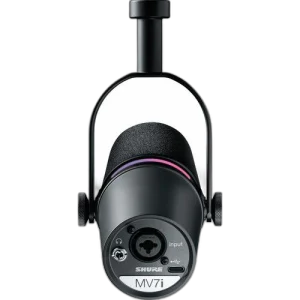

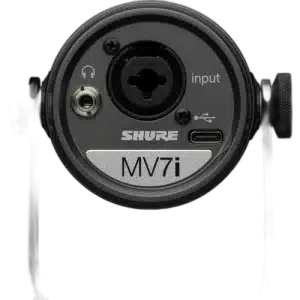

A Combo XLR and Instrument Input
The rear socket accepts an XLR microphone or a compatible 1/4-inch TS/TRS source. The external input offers up to 60 dB gain in mixdown and multitrack modes, with switchable 48 V phantom power for a microphone that needs it. This socket is an input for the additional source; the MV7i sends its recording to the computer through USB-C.
Auto Level with SmartGate
Auto Level with SmartGate is designed to manage gain as speaking level, distance and room conditions change. The published DSP set also includes Real-time Denoiser, Digital Popper Stopper, a tone slider, reverb, compression, limiting and a high-pass filter. Configure the supported processing in MOTIV software to suit the microphone, connected source and type of recording.
Monitor Both Sources through Headphones
The built-in 3.5 mm headphone output provides a convenient monitoring point for the recording setup. Connect headphones and use the supported MOTIV controls to manage the microphone and external input. The system records at 24-bit/48 kHz, with the guide also listing an iOS-compatible 16-bit/44.1 kHz mode for supported mobile use.

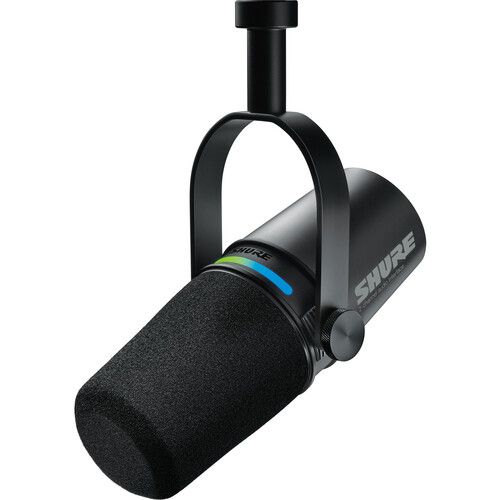

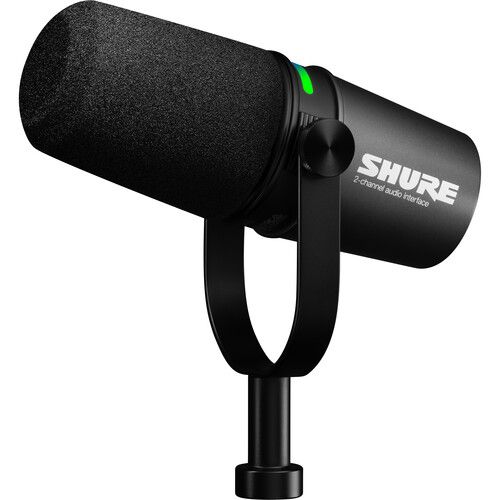

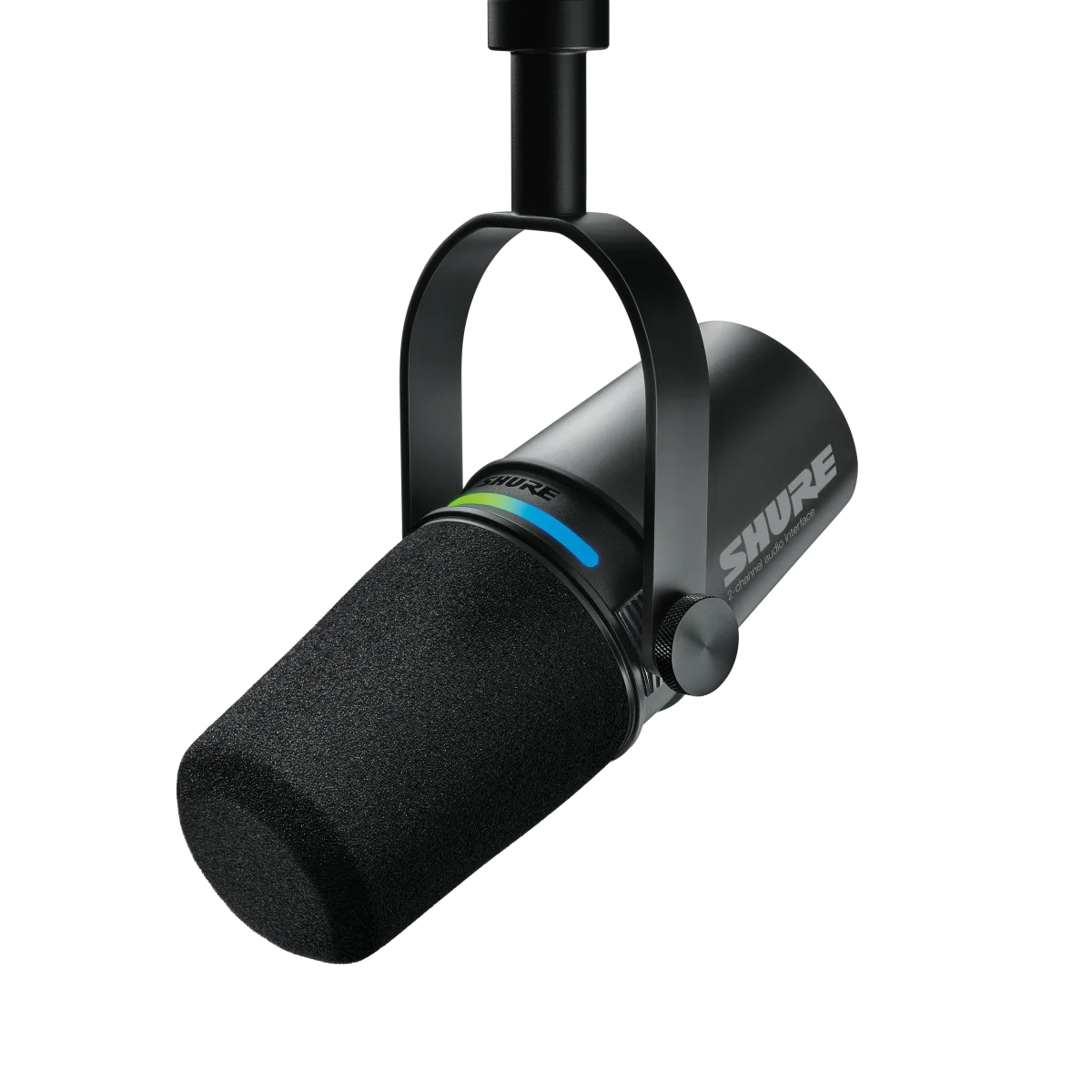

A Dynamic Capsule and Adjustable Yoke
The built-in microphone uses a moving-coil dynamic capsule with a cardioid pattern and a published 50 Hz to 16 kHz response. A diecast aluminum housing and adjustable yoke let you position it on a suitable stand or arm. The net weight is 567 g, and the mounting connection is a standard 5/8-27 thread.
USB-C for Desktop and Mobile Recording
A 3 m USB-C to USB-C cable is included. The published connection uses USB Audio Class 2 with USB bus power, and software support includes MOTIV Mix on desktop and MOTIV Audio on compatible iOS and Android devices. Choose a supported USB-C device for mobile use; Lightning-port iOS devices are not included in the MV7i compatibility list.
Complete Your Workspace
Explore Microphones at AX Store and choose the configuration or accessories that fit your setup.
Frequently Asked Questions
How does this microphone connect?
Computer/Mobile Output: USB-C; built-in two-channel audio interface. Input Socket: Combo XLR and 1/4-inch TS/TRS input. XLR Function: External input; not an XLR output for the built-in microphone.
What pickup pattern does it use?
This microphone uses a cardioid polar pattern.
What frequency range is specified?
50 Hz–16 kHz.
What power or interface setup is needed?
USB Requirements: UAC2; USB-C bus power, USB 2.0 or higher. Phantom Power for External Mic: 48 V DC, switchable.
Which mobile devices can be used?
Compatible USB-C devices; not compatible with Lightning-port iOS devices.
What digital recording format does it support?
24-bit / 48 kHz; iOS also supports 16-bit / 44.1 kHz.
Is the XLR connector an output for a mixer?
The combo XLR/instrument connector is an input for a second microphone or instrument. MV7i sends its digital recording channels through USB-C. It does not provide an XLR microphone output to an external mixer.
Build Your Setup with AX Store Kuwait
Explore computers, displays and accessories for your workspace at AX Store Kuwait. For help choosing the right model or checking an accessory, contact AX Store.
THE DETAILS
Technical specifications
Microphone
Dynamic, moving coil
Cardioid
50 Hz–16 kHz
All-metal construction
5/8-27 thread with adjustable yoke
128 dB SPL, minimum gain
−33 dBV/Pa at 1 kHz, minimum gain
0 to +36 dB
−118 dBFS, 20 Hz–20 kHz A-weighted, Auto Level/Real-time Denoiser enabled
External Input
Combo XLR and 1/4-inch TS/TRS input
5.8 kΩ
1 MΩ
0 to +60 dB
0 to +40 dB
−14 dBV
7 dBV
−118 dBFS with Auto Level/Real-time Denoiser enabled
−97 dBFS at 10 dB gain
48 V DC, switchable
System
USB-C; built-in two-channel audio interface
External input; not an XLR output for the built-in microphone
24-bit / 48 kHz; iOS also supports 16-bit / 44.1 kHz
Auto Level with SmartGate, Digital Popper Stopper, Real-time Denoiser, Tone Slider, Reverb, Compressor, Limiter, High-Pass Filter
3.5 mm
UAC2; USB-C bus power, USB 2.0 or higher
MOTIV Mix desktop; MOTIV Audio iOS/Android
567 g
164 mm H × 207 mm L × 90 mm D, mic/yoke at 90°
3 m USB-C to USB-C
Compatible USB-C devices; not compatible with Lightning-port iOS devices
In the Box
MV7i
USB-C to USB-C cable
Quick Start Guide
