Universal Audio Volt 276 USB-C Audio Interface
Universal Audio

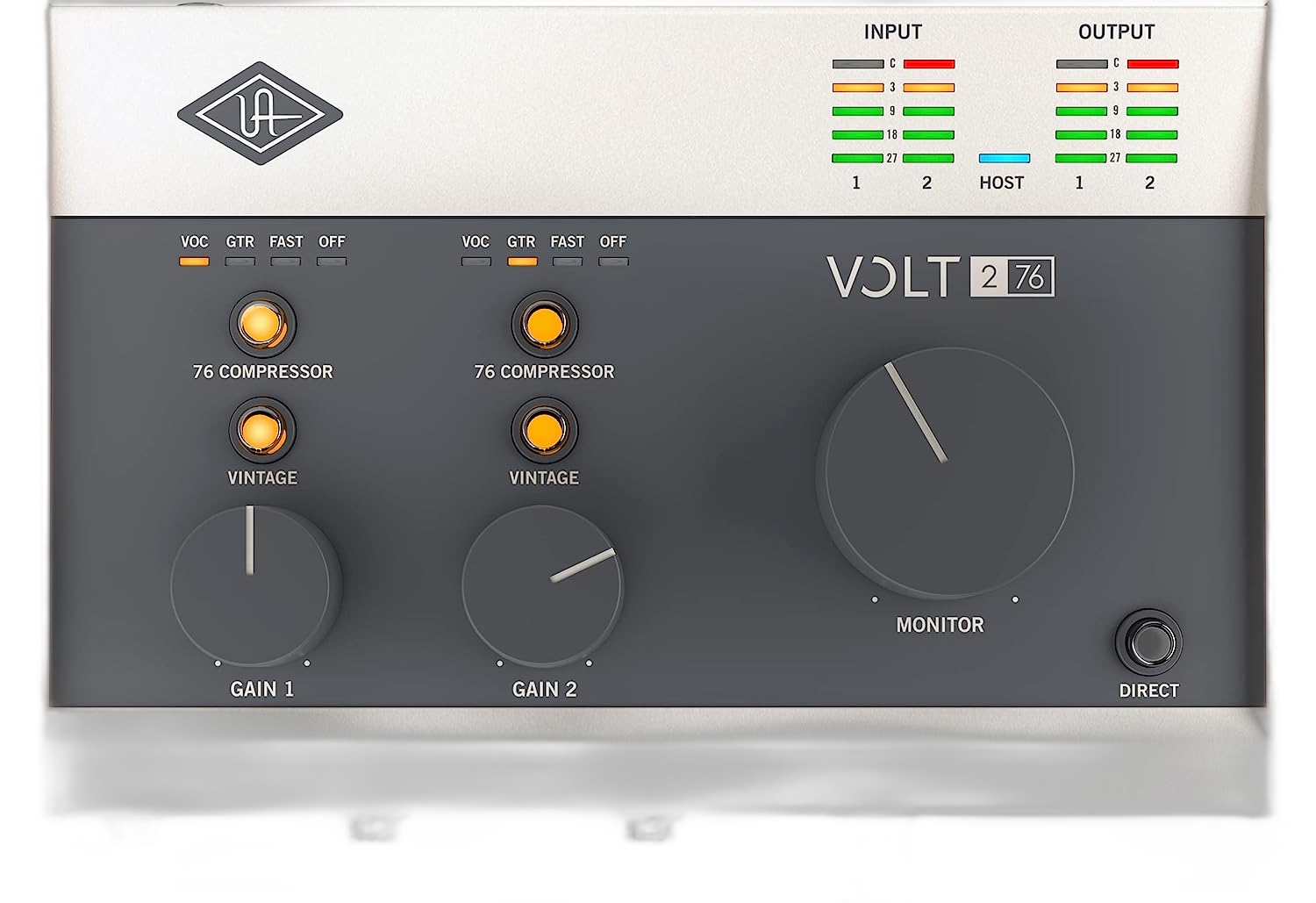

Universal Audio Volt 276 USB-C Audio Interface

Universal Audio Volt 276 is a 2-in/2-out USB audio interface with 2 mic preamps, Vintage mode and 24-bit/192kHz conversion. Its analog 76 Compressor offers VOC, GTR and FAST presets for shaping recordings.

SKU: VOLT276

Regular price 115.500 KWD

or 4 payments of 28.875 KWD with

Pay with card & save

KNET Mastercard Gateway
110.000 KWD Save 5.500 KWD

Overview

UNIVERSAL AUDIO VOLT 276 USB-C AUDIO INTERFACE

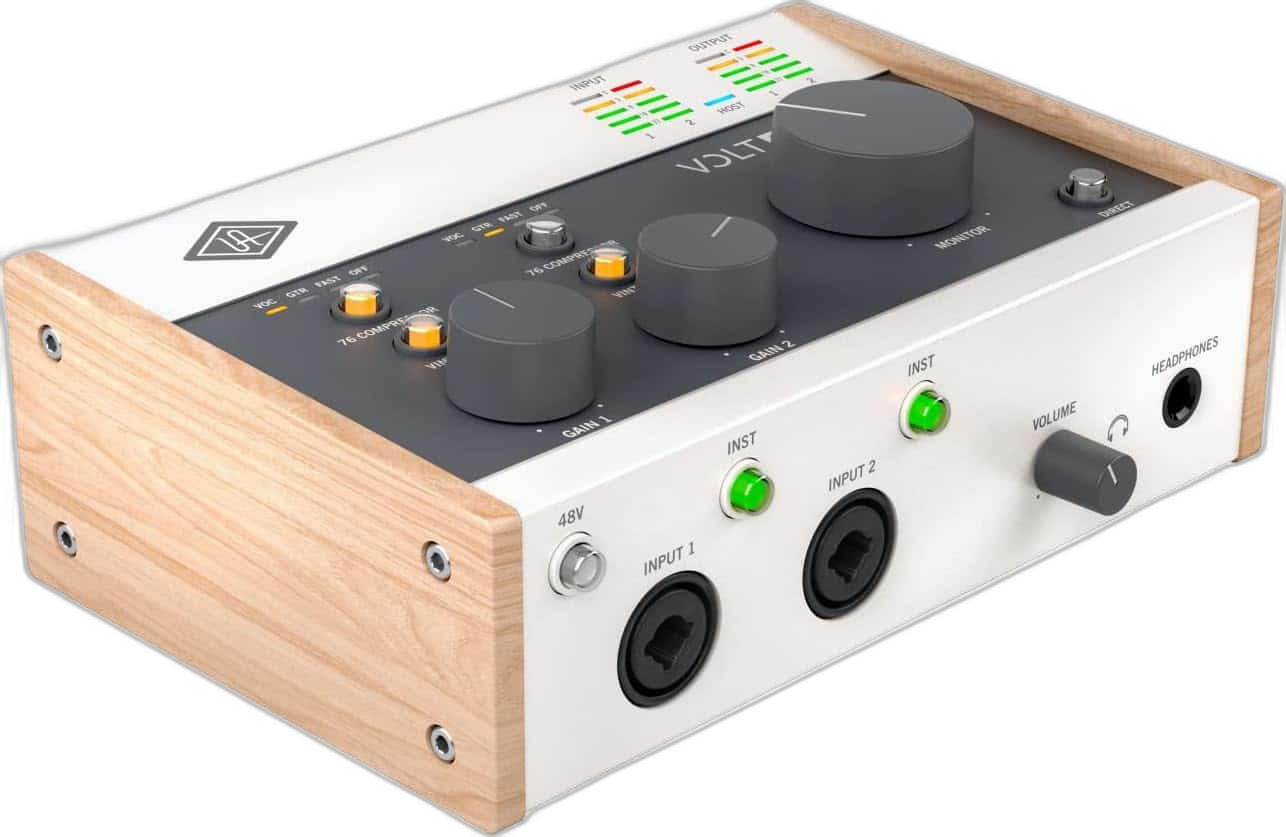

Universal Audio Volt 276 audio interface

Shape your sound as you record

Universal Audio Volt 276 is a 2-in/2-out USB audio interface with 2 mic preamps, Vintage mode and 24-bit/192kHz conversion. Its analog 76 Compressor offers VOC, GTR and FAST presets for shaping recordings.

2

Analogue Recording Channels

2

Microphone Preamps

Up to 24-bit / 192 kHz

Maximum Recording Format

USB-C

Interface USB Connector

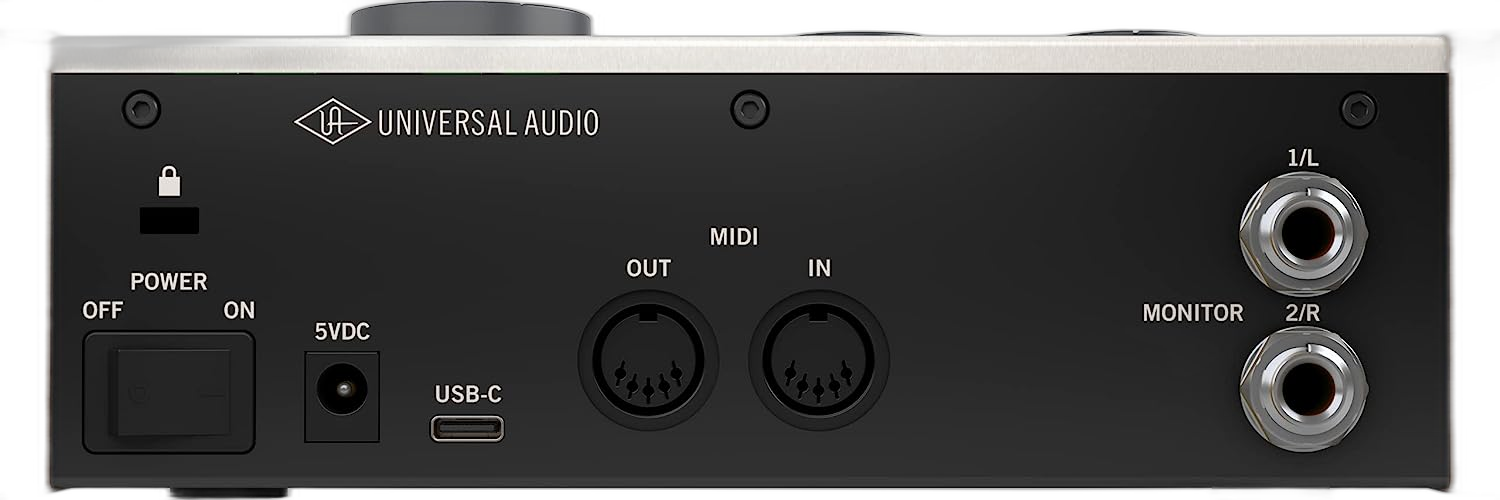

Universal Audio Volt 276 rear connections and controls

Choose the inputs your recording needs

Record two microphones, a voice and instrument, or a stereo line source through two independent combo inputs. Select the instrument setting when connecting a guitar or bass directly.

Add analogue character

Vintage mode uses an analog circuit inspired by UA's 610 preamp to add tonal colour to microphone, line or instrument signals. The built-in 76 Compressor adds three preset responses—VOC, GTR and FAST—so you can shape dynamics before the signal reaches your recording software.

Monitor while you record

Direct monitoring routes the input to your headphones and monitors without the delay introduced by software buffers. Separate headphone and monitor level controls let you set listening levels, while MIDI input and output connect compatible controllers and instruments.

Connect to your recording system

The USB-C connector carries USB 2.0 audio. Use a compatible Mac, Windows computer, iPad or iPhone; mobile adapters and external power may be required. Recording software and bundled software can have separate operating-system and account requirements.

Plan the Session Around the Actual Inputs

Two microphone/line/instrument input paths provide two analogue recording channels. Choose the input mode for each source; a combo connector’s different plug options do not multiply the available channels. Assign the live sources before recording and choose the appropriate microphone, instrument or line setting for the connection you use.

Supply the Host Power the Interface Needs

The power arrangement is USB bus power; external +5V DC input when required. Use the specified cable and adequate host or external power. Check a mobile setup separately, as a matching USB connector does not guarantee the connected device supplies the required current.

Complete Your Workspace

Explore Audio-Technica AT2020 XLR microphone, ATH-M40x closed-back headphones, Compare audio interfaces and mixers, Browse microphones, Explore studio headphones for your setup. Suggested products are sold separately. Check the number of analogue recording channels, microphone preamps, digital expansion, MIDI, mobile support and supplied accessories when comparing interfaces. An Audio-Technica AT2020 XLR microphone requires 48 V phantom power; a Shure SM58 is a separate dynamic microphone choice. Use the correct XLR cable and microphone input. Beyerdynamic and Audio-Technica headphones provide listening alternatives, and Elgato controls complement a supported computer workflow. iD14 MKII desktop and ADAT functions do not include iD4 MKII’s supported iOS use. Mobile setups may require an adapter and external power. Choose the actual cables and recording software for the selected host.

Frequently Asked Questions

How many physical recording channels does it provide?

Two microphone/line/instrument input paths provide two analogue recording channels. Choose the input mode for each source; a combo connector’s different plug options do not multiply the available channels.

Which USB format and power should I plan for?

USB-C is the stated connection family. USB bus power; external +5V DC input when required. Check the required cable, host power and current driver support.

Which microphone connection should I use?

Connect an analogue XLR microphone to the supported microphone input. Use switchable 48 V phantom power only for a microphone or active accessory that requires it. USB microphones connect to their supported host separately.

Which recording format is supported?

Up to 24-bit / 192 kHz. Select a compatible sample rate and bit depth in the application; the stated maximum does not replace input-gain setup or guarantee an unclippable recording.

Can I use a supported iPad or iPhone?

Supported mobile operation needs the correct USB connection and adequate power. An appropriate adapter or powered hub may be required; desktop control software and bundled applications have separate system requirements.

Does this Volt model include the 76 Compressor?

Yes. VOC, GTR and FAST presets are provided.

Build Your Setup with AX Store Kuwait

Explore computers, displays and accessories for your workspace at AX Store Kuwait. For help choosing the right model or checking an accessory, contact AX Store.

Compare Universal Audio Volt 1 USB Audio Interface. Match the exact model, connection and configuration to your setup.

THE DETAILS

Technical specifications

Interface and connections

Model

Volt 276 (original generation)

Simultaneous audio I/O

2 inputs / 2 outputs

Mic/line/instrument inputs

2 × XLR / 6.35 mm combo

Monitor outputs

2 × 6.35 mm TRS (stereo pair)

Headphone output

1 × 6.35 mm stereo

USB

USB 2.0 via USB-C connector

MIDI

5-pin DIN input and output

Bit depth

24-bit

Sample rates

44.1 / 48 / 88.2 / 96 / 176.4 / 192 kHz

Vintage mode

Analog preamp emulation inspired by UA 610

76 Compressor

Yes; VOC / GTR / FAST presets

Direct monitoring

Yes

Microphone input performance

Available gain

55 dB

Phantom power

Switchable +48 V

Frequency response

20 Hz–20 kHz, ±0.1 dB

Dynamic range (A-weighted)

112 dB

THD+N (1 kHz, -1 dBFS)

-103 dB (0.0007%)

Equivalent input noise (150Ω, A-weighted)

-127 dBu

Maximum input level

9 dBu

Input impedance

3 kΩ

Instrument and line inputs

Instrument input impedance

1 MΩ

Instrument maximum level

12.5 dBu

Instrument dynamic range (A-weighted)

111 dB

Line input impedance (preamp inputs)

15 kΩ

Line maximum level (preamp inputs)

22 dBu

Line dynamic range (preamp inputs, A-weighted)

111 dB

Instrument and line frequency response

20 Hz–20 kHz, ±0.05 dB

Monitor and headphone outputs

Monitor dynamic range (A-weighted)

110 dB

Monitor maximum output level

15 dBu

Monitor output impedance

100 Ω

Monitor frequency response

20 Hz–20 kHz, ±0.1 dB

Headphone output at 32Ω

84 mW per channel

Headphone output at 300Ω

22 mW per channel

Headphone output at 600Ω

12 mW per channel

Headphone THD+N (1kHz, -1dBFS, 300Ω)

-100 dB (0.001%)

Power and physical details

Power

USB bus power; external +5V DC input when required

DC polarity

Centre positive

Power consumption

3.5 W typical / 5.0 W maximum

Chassis including controls

18.4 × 13.0 × 6.6 cm

Unit weight

0.79 kg

Operating temperature

0–40°C

Included cables

USB-A to USB-C; USB-A to DC barrel
