Zoom H6 All Black Portable Handy Recorder, 6-Input

External Combo Inputs

Included Capsule

Standard Physical Recording

Manual-Gain H6 All Black

Capture a room and close microphones together

Use the included X/Y capsule for a stereo picture of a performance or location, while the four combo inputs capture individual microphones or line sources. Each external input has its own gain knob and pad switch so you can set levels for different sources.

Choose the capsule for the job

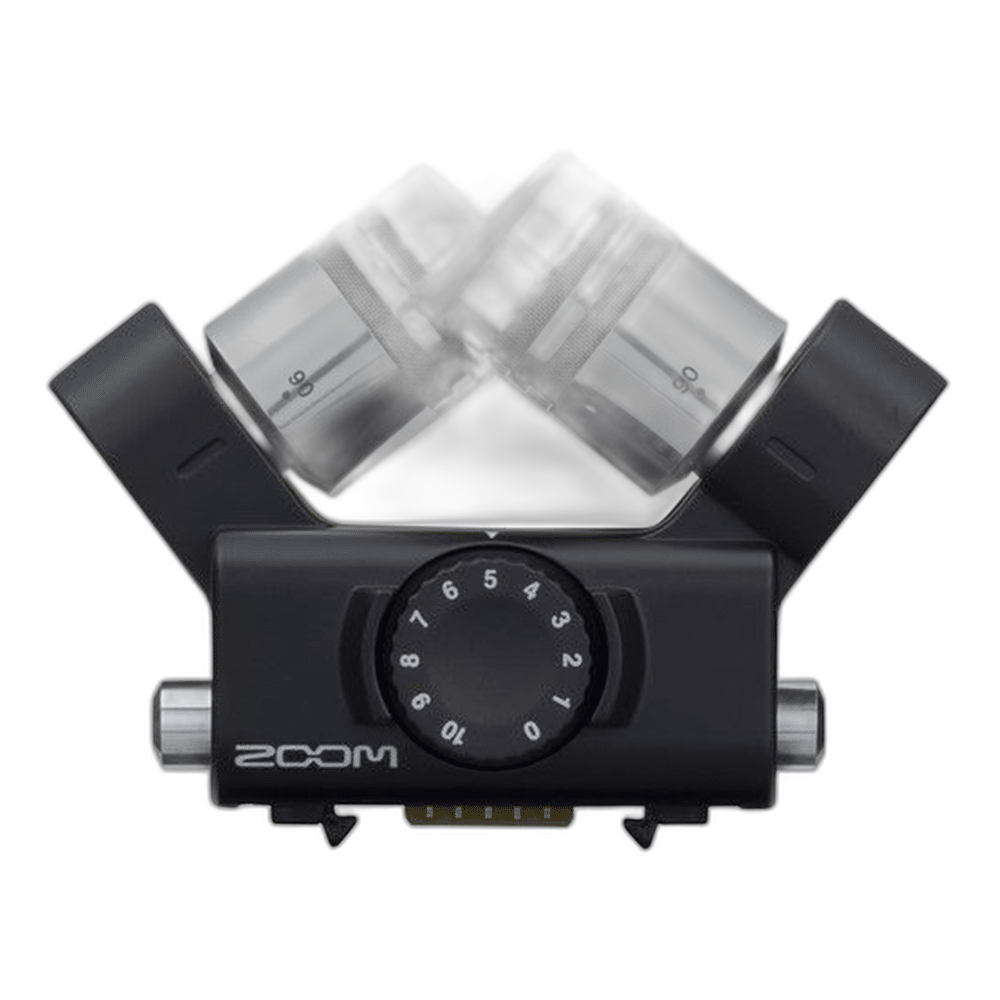

The included XYH-6 capsule provides adjustable 90° or 120° stereo pickup. Compatible optional Zoom capsules let you change the recording approach, including shotgun capture or two additional XLR/TRS inputs. The additional capsules are sold separately.

Set levels and keep a backup

The H6 All Black records 16-bit or 24-bit WAV files at up to 96 kHz. Its optional L/R backup records the capsule signal 12 dB lower for additional protection against unexpected peaks. This model uses manual gain setting; it does not record 32-bit float files.

Record on location or connect to a computer

Four AA batteries power location recording, while USB power and the optional AD-17 adapter support longer sessions. Separate headphone and line outputs handle monitoring and a camera or other destination. In multitrack USB mode, the H6 provides six inputs and two outputs at up to 24-bit/96 kHz.

Keep the Exact Model and Signal Path Clear

H6 All Black uses manual input gain and records up to 24-bit/96 kHz. Its six physical channels include the stereo capsule; backup L/R files do not add inputs. This model does not record 32-bit float like H6essential.

Which signal path and version should I plan for?

H6 All Black uses manual input gain and records up to 24-bit/96 kHz. Its six physical channels include the stereo capsule; backup L/R files do not add inputs. This model does not record 32-bit float like H6essential.

Does the headline track count mean that many microphone sockets?

H6 All Black uses manual input gain and records up to 24-bit/96 kHz. Its six physical channels include the stereo capsule; backup L/R files do not add inputs. This model does not record 32-bit float like H6essential.

What should I check for portable power?

4 × AA. USB bus power or optional AD-17, 5 V / 1 A. Check the recording format, phantom power, monitoring and conditions when planning runtime.

Can 32-bit float prevent every overload?

This model’s stated recording formats apply to its exact generation. Set the analogue input level and gain according to the recorder instructions rather than assuming features from a newer essential model.
