ZOTAC Gaming GeForce RTX 4060 Twin Edge 8GB GDDR6

Graphics memory

CUDA cores

Memory interface

Listed boost clock

Dedicated RTX 4060 Graphics

The NVIDIA RTX 4060 GPU provides 3072 CUDA cores for supported graphics and computing work. Use the card with compatible drivers and applications, choosing the rendering, display and graphics settings around the work being done. The final experience also depends on the processor, memory and software in the complete computer; core count alone does not describe every application’s performance.

8 GB GDDR6 Graphics Memory

This model has 8 GB GDDR6 on a 128-bit memory interface, with a listed memory data rate of 17 Gbps. Dedicated graphics memory holds the data used by the GPU during supported workloads. Choose application settings and project requirements around the card’s actual memory capacity, especially when comparing different capacities within the same GPU family.

A Model-Specific Boost Specification

The listed boost clock is 2460 MHz. This value belongs to the specific card model and should be distinguished from the reference GPU specification or another factory-overclocked edition. A clock specification is not a frame-rate guarantee: workload, temperature, power configuration and the rest of the system affect the result achieved in use.

Connect the Displays to the Card

3 × DisplayPort 1.4a and 1 × HDMI 2.1a. 4 simultaneous displays are supported within the card’s display capabilities. Connect the monitors directly to the graphics card and check the display mode, cable and monitor requirements together. Port specifications describe supported output capabilities; they do not promise that a game will render at the same frame rate as a display’s maximum refresh setting.

Physical Size and Installation

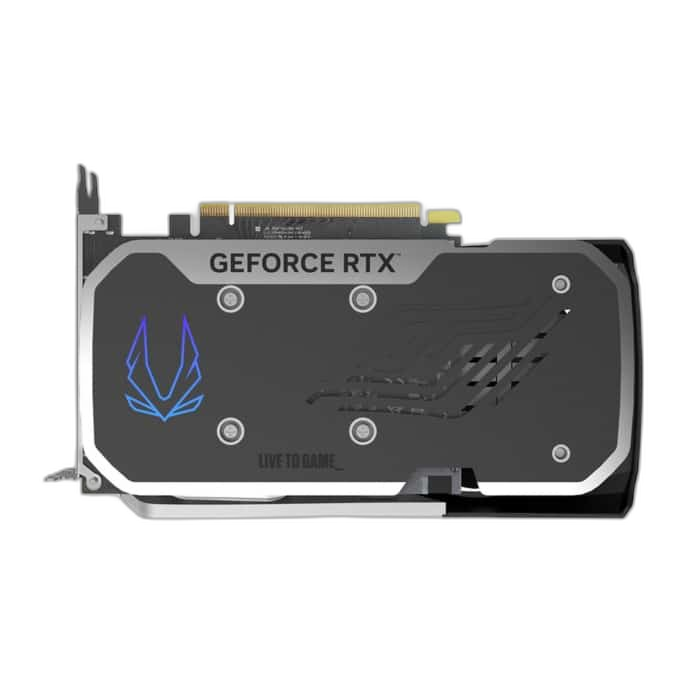

The card’s physical specification is 221.4 × 122.7 × 43.1 mm; manufacturer 2-slot designation. FREEZE fan stop and a metal backplate are listed for the compact Twin Edge design. Check the case’s graphics-card space and nearby expansion slots before fitting it, allowing room for the complete card and its power connector. The host interface is PCI Express 4.0 x8. Install the card in a suitable motherboard graphics slot and follow the case and card mounting guidance.

Graphics card

ZOTAC GAMING GeForce RTX 4060 8GB Twin Edge

GPU

NVIDIA RTX 4060

Graphics memory

8 GB GDDR6

Which GPU and memory does this card use?

NVIDIA RTX 4060 with 8 GB GDDR6.

What boost clock is specified?

2460 MHz. Actual operating clocks depend on workload and operating conditions.

What physical space does it require?

221.4 × 122.7 × 43.1 mm; manufacturer 2-slot designation. Allow additional space for the power connection and follow the case’s installation guidance.

Which power connections are needed?

The manufacturer recommends a 500 W system power supply. The card’s listed power figure is 115–120 W. Its supplementary connection is 1 × 8-pin PCIe.

How can displays be connected?

3 × DisplayPort 1.4a and 1 × HDMI 2.1a. Up to 4 displays can be used within supported display configurations.
