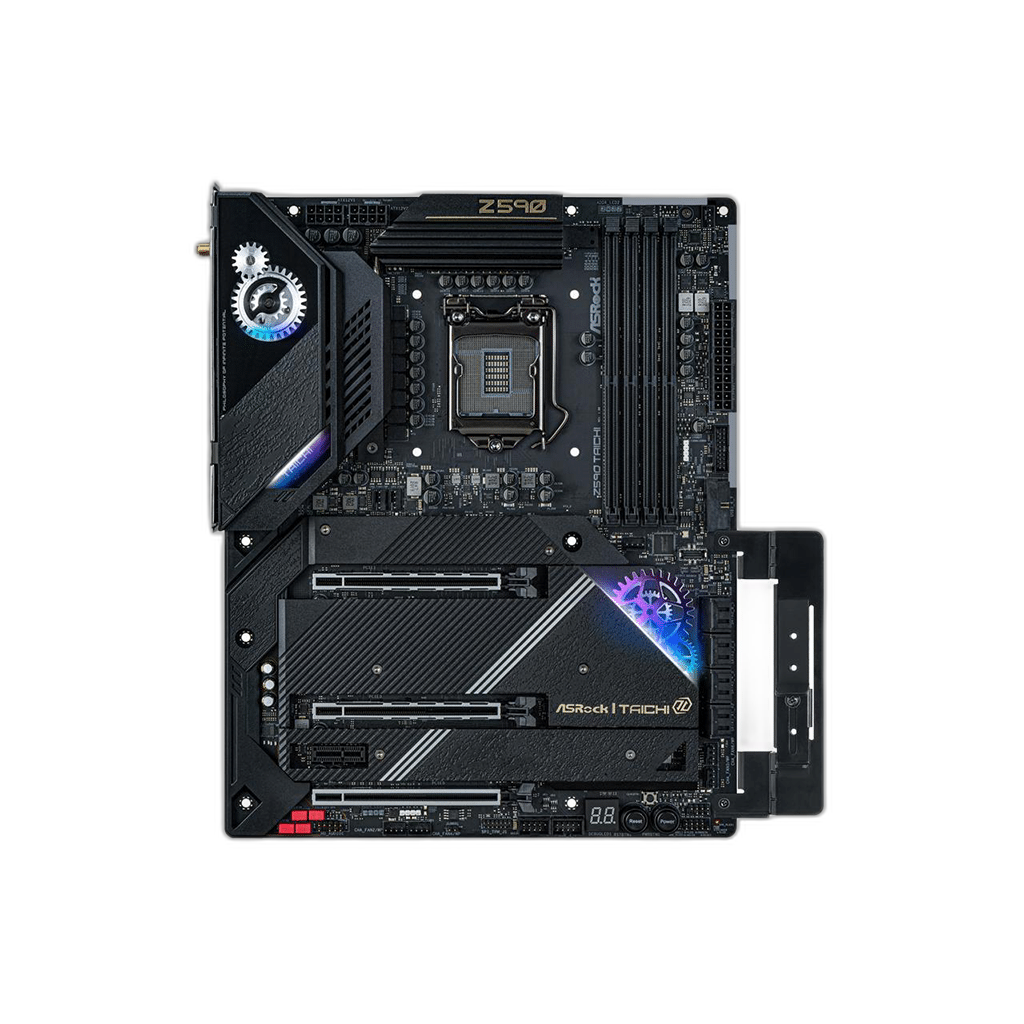

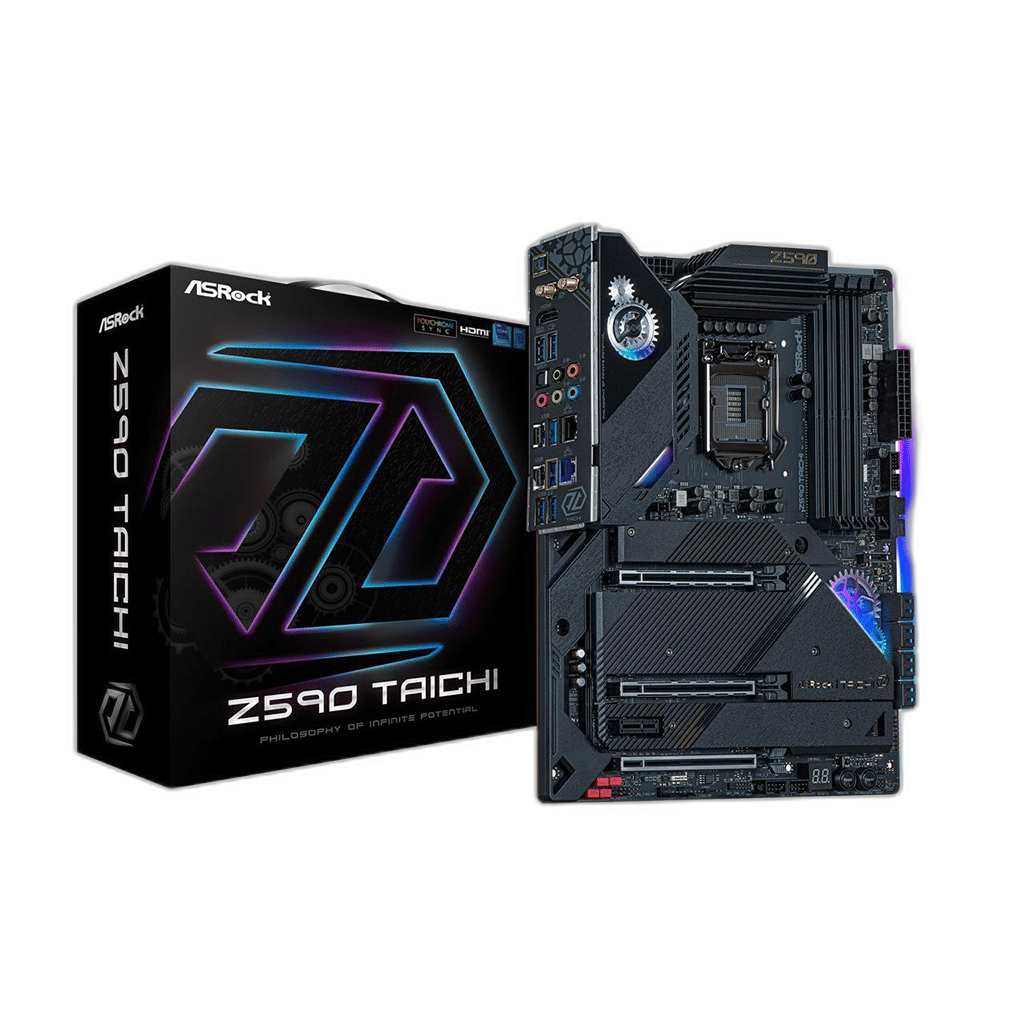

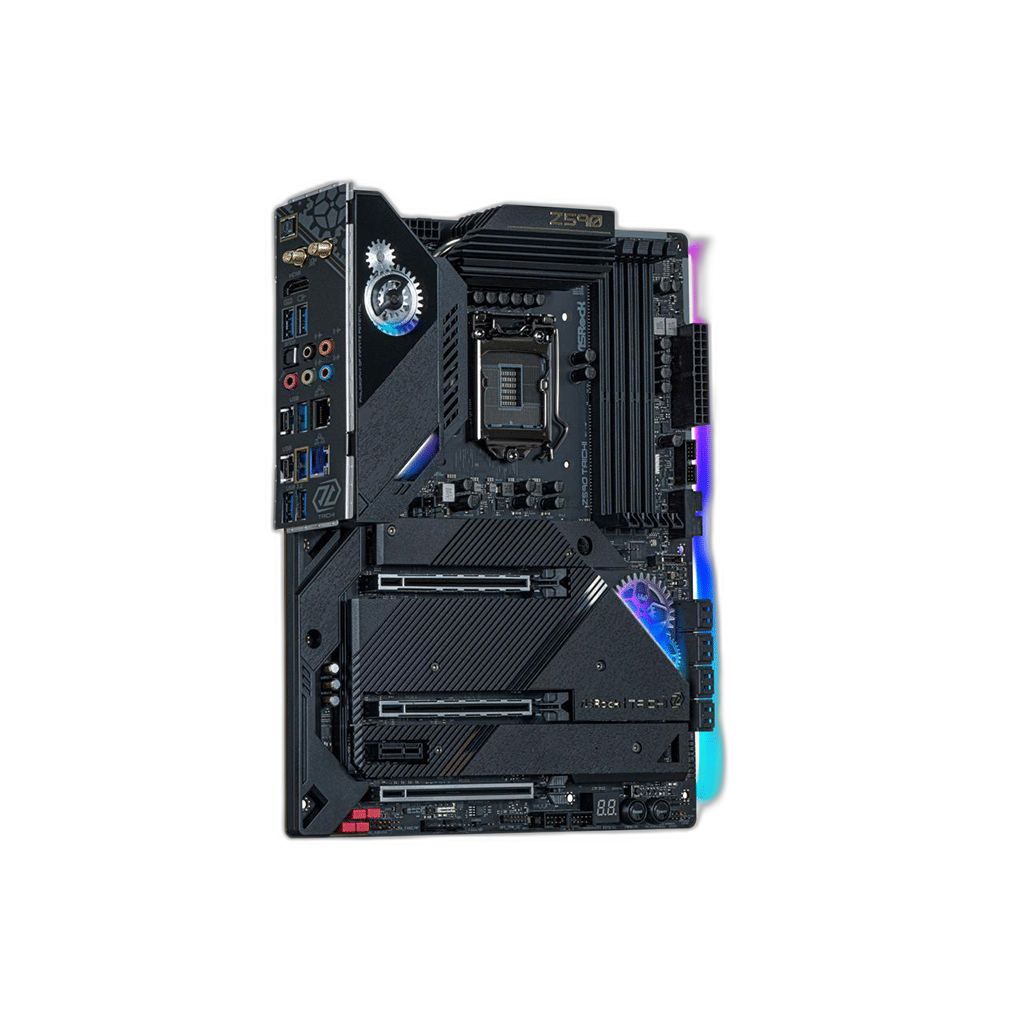

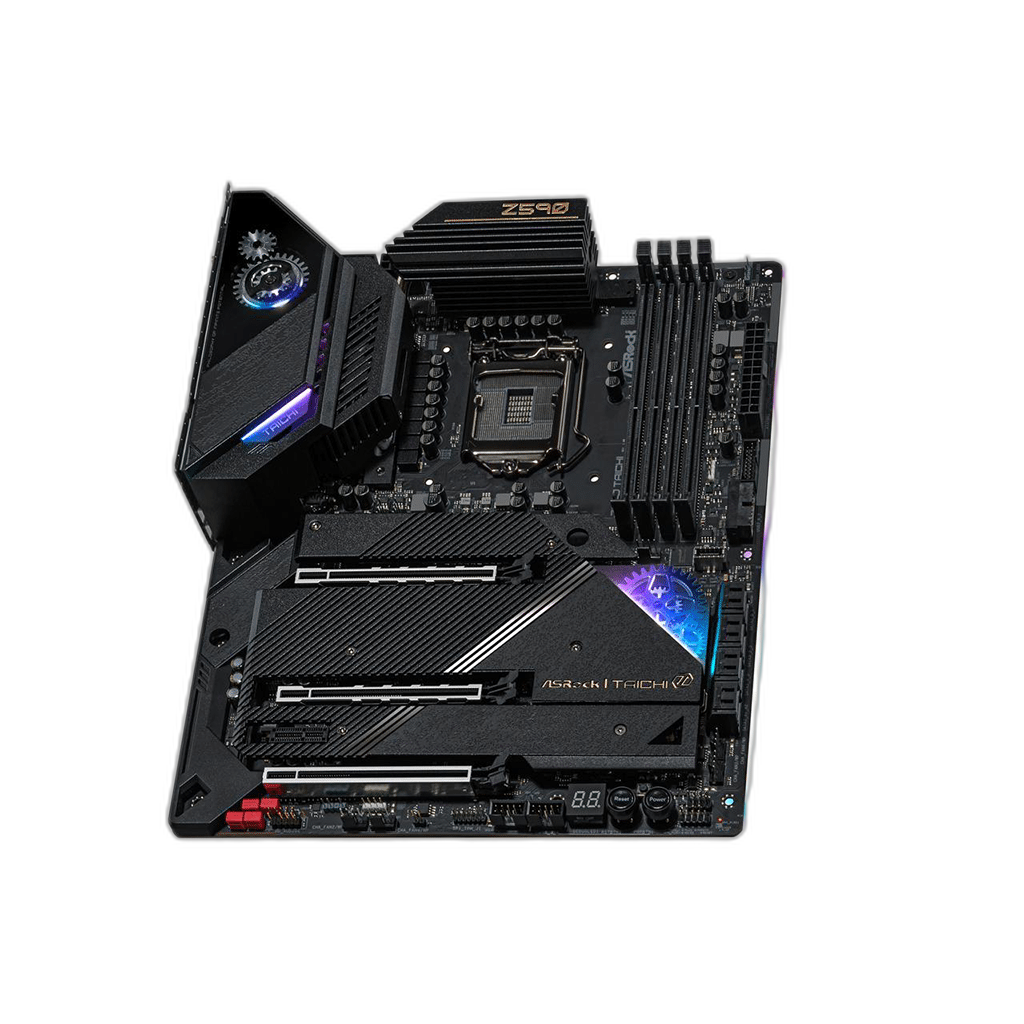

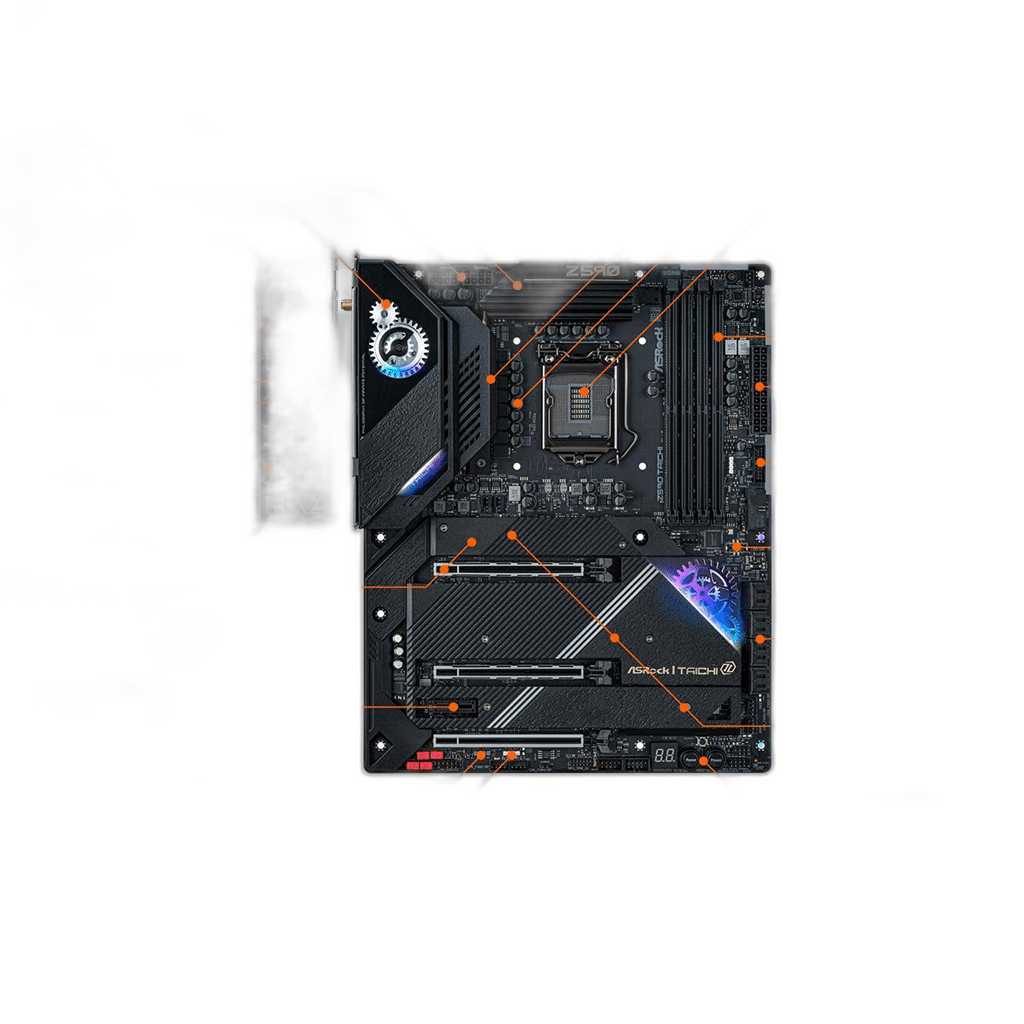

ASRock Z590 TAICHI LGA 1200 Motherboard

CPU socket

Memory generation

Memory slots

Physical storage positions

Match the Processor and BIOS

The board supports compatible 10th and 11th Generation Intel Core processors, plus supported Pentium Gold and Celeron models, subject to the CPU-support list. Check the exact processor entry and required BIOS version before installation, especially when updating an existing system. Three physical x16 slots support CPU-dependent primary and secondary lane arrangements: up to Gen4 x16 or x8/x8 with 11th Gen, and Gen3 with 10th Gen. A PCIe 3.0 x1 slot is also provided. Plan the graphics card and other expansion devices around those connections, keeping the processor’s capabilities and the motherboard’s physical slot layout together as one platform.

4 Slots for DDR4 Memory

The board uses 4 DDR4 DIMM slots with dual-channel support. Select a compatible kit from the manufacturer’s memory guidance and fit the modules in the recommended positions. Memory profiles and attainable speed depend on the CPU, installed BIOS and module arrangement; a kit’s advertised profile does not guarantee the same operating speed with every system configuration.

Plan the Storage Positions

M2_1 supports PCIe 4.0 x4 with an 11th Generation CPU or PCIe 3.0 x4 with a 10th Generation CPU. M2_2 and M2_3 support PCIe 3.0 x4 or SATA M.2 drives. M2_2 shares lanes with SATA3_0 and SATA3_1; M2_3 shares lanes with SATA3_4, SATA3_5 and PCIE4. Follow the manual’s mutually exclusive device combinations. The board also provides 8 SATA 6Gb/s ports. Check the slot-sharing conditions before choosing the positions for the boot SSD, additional storage and expansion cards. The number of physical connectors should be considered alongside any shared lanes or processor-generation requirements in the board’s supported configuration.

Network Connections for the Desk

Killer E3100G 2.5Gbps LAN plus Intel I219V Gigabit LAN provides the wired network connection. Wi-Fi 6E and Bluetooth are included; 6 GHz operation requires compatible operating-system, router and local regulatory support. The available connection speed also depends on the surrounding network, connected router or switch, operating system and driver support. Choose the network path around the system’s intended use, leaving access to the rear connectors and any wireless antennas in the completed desk arrangement.

Display, USB and Audio Connections

The board provides HDMI and display-capable Thunderbolt 4 Type-C. The motherboard display outputs require a supported processor with integrated graphics. 2 × Thunderbolt 4 / USB4 Type-C, 2 × USB 10Gbps Type-A and 4 × USB 5Gbps Type-A are available on the rear panel. Realtek ALC1220, front-panel ESS SABRE9218 DAC and optical S/PDIF supplies onboard audio. Match each external device with the port’s supported function, including the display cable, audio connection and data interface needed for the equipment being used.

Motherboard

ASRock Z590 Taichi

Chipset

Z590

CPU socket

LGA1200

Which processors can be installed?

compatible 10th and 11th Generation Intel Core processors, plus supported Pentium Gold and Celeron models, subject to the CPU-support list. Check the exact CPU-support list and required BIOS.

Which memory generation is required?

DDR4 desktop DIMMs, with 4 slots and dual-channel support. The kit must be compatible with the CPU and motherboard.

How is M.2 storage configured?

M2_1 supports PCIe 4.0 x4 with an 11th Generation CPU or PCIe 3.0 x4 with a 10th Generation CPU. M2_2 and M2_3 support PCIe 3.0 x4 or SATA M.2 drives. M2_2 shares lanes with SATA3_0 and SATA3_1; M2_3 shares lanes with SATA3_4, SATA3_5 and PCIE4. Follow the manual’s mutually exclusive device combinations.

What network connections are included?

Killer E3100G 2.5Gbps LAN plus Intel I219V Gigabit LAN. Wi-Fi 6E and Bluetooth are included; 6 GHz operation requires compatible operating-system, router and local regulatory support.

Can every supported CPU use the display outputs?

No. The motherboard’s display outputs require a supported CPU with integrated graphics.
