Elgato Game Capture 4K X USB Capture Card, 4K144 with HDR10
Elgato Game Capture 4K X. Connect your console or gaming PC to your display and recording system with a compact external capture card built for high frame rates.
Regular price
95.500 KWD
or 4 payments of 23.875 KWD with
Pay with card & save
91.000 KWD
Save 4.500 KWD
Overview

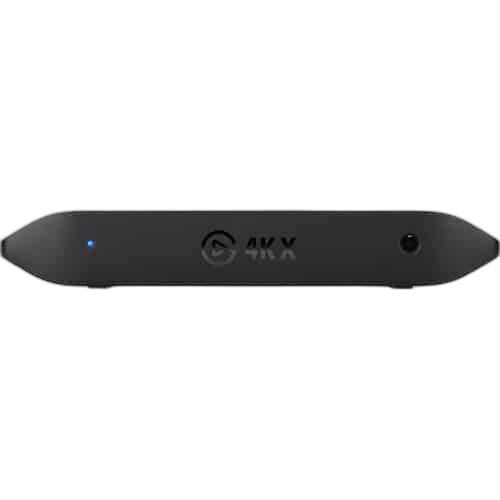

ELGATO GAME CAPTURE 4K X

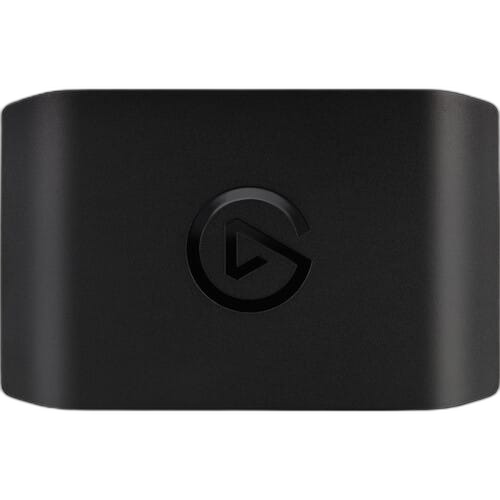

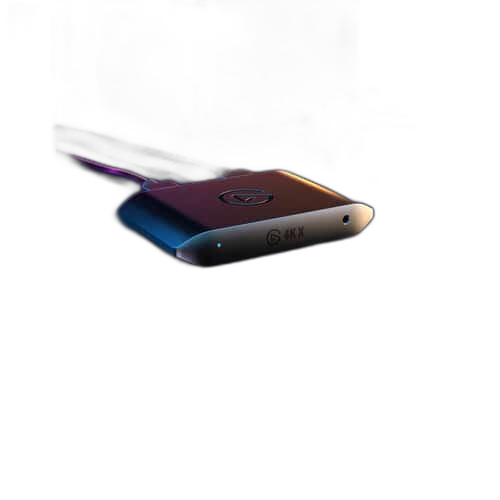

Elgato Game Capture 4K X
Elgato Game Capture 4K X: Connect your console or gaming PC to your display and recording system with a compact external capture card built for high frame rates. Explore this model at AX Store in Kuwait.
4K144 SDR
Maximum UHD capture mode
10 Gbps USB
For maximum performance
HDMI 2.1
Input and passthrough
Windows
HDR capture platform
Built for fast gameplay
HDMI 2.1 passthrough supports VRR and HDR10 on compatible displays. Maximum resolution and frame rate depend on your source, screen and connection. Check the actual computer, software and selected input before the session, then make a short test recording with the intended source.
Record across your setup
Use supported capture software on Windows, Mac or compatible iPad hardware. USB 3.2 Gen 2 at 10Gbps is required for maximum performance. Check the actual computer, software and selected input before the session, then make a short test recording with the intended source.
Choose the Host Connection Before the Source
For maximum performance, use the specified USB 3.2 Gen 2 connection at 10 Gbps. USB-C describes the connector shape, rather than a guarantee of port speed. Match the source, display, cable and software to the selected SDR or HDR recording mode before starting capture.

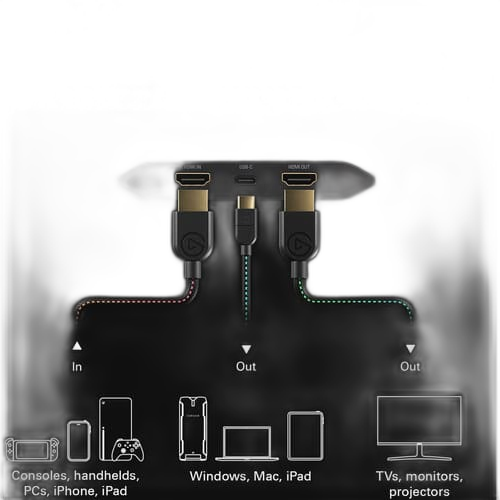

Keep Capture and Display Routing Distinct
HDMI passthrough sends a compatible source to the gaming display while the computer captures video. The passthrough limit and capture format are separate specifications. Choose a supported combination for the source, display, cable and software instead of treating a high-resolution display signal as proof of the recording format.
Plan the Commentary Audio Separately
A compatible USB microphone provides a direct commentary input to the recording computer. HDMI source audio and microphone commentary remain separate sources to balance in the application. Use suitable monitoring headphones and a short test recording to confirm which signals the audience actually hears.
Build the Scene Around the Actual Inputs
Frame the camera or gameplay source, choose the recording format and check the complete signal path before starting the session. A Stream Deck can add supported software actions, while mounting hardware and microphones serve separate production tasks. None of those accessories replaces the capture device’s required host connection.
Build the Video and Commentary Route
Choose the source connection and computer connection for this exact capture device. Plan display routing separately where needed, and select a microphone and monitoring arrangement for your own commentary. Compare related options such as RØDE RCV-G RODECASTER Video and Audio Console or AVerMedia Live Gamer Portable 2 PLUS Capture Device, keeping the exact model and configuration in the decision. For the wider setup, explore Elgato Wave 3 MK.2 USB Condenser Microphone - Wave FX / Black and check the connection, size or mounting requirements before pairing accessories. Browse the Elgato range at AX for more choices.
Elgato Game Capture 4K X Setup Choices
Choose the source connection and computer connection for this exact capture device. Plan display routing separately where needed, and select a microphone and monitoring arrangement for your own commentary. Explore Elgato Stream Deck MK.2, 15-Key Customizable Controller, Razer Key Light Chroma - All-In-One Lighting Kit, Elgato Mini Mount Desktop Stand | Compact & Versatile.
Frequently Asked Questions
Does recording need a computer?
This is an external USB capture device. Use a supported computer or specifically compatible capture host, with the port speed required for the selected mode.
Which capture and passthrough limits apply?
4K X supports high-rate SDR capture including 2160p144. The listed HDR capture maxima differ, and HDR capture is Windows only. Maximum performance requires 10 Gbps USB and a supported complete setup.
Can it capture protected streaming-service video?
The specified input is unencrypted HDMI. HDCP-protected content is not a supported capture source.

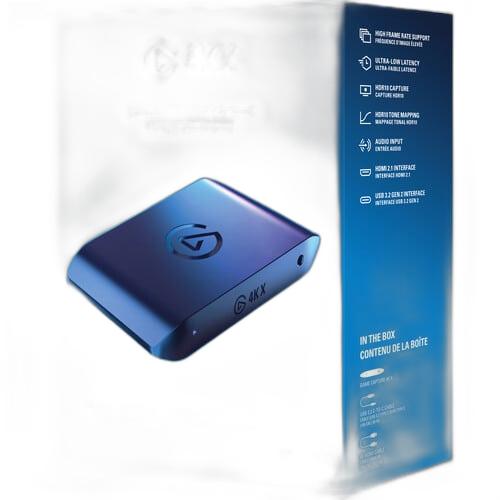

What is listed in the capture package?
4K X, a 1.5 m USB 3.2 C-to-C cable and a 2 m 8K HDMI cable.
Does a microphone connect to an HDMI input?
A microphone needs its own appropriate recording connection. A suitable USB microphone can provide computer commentary alongside video capture; an HDMI input is not an XLR microphone preamp.
What should I check before going live?
Confirm the source format, device selection, recording computer requirements and commentary routing. Make a short test and review both picture and sound before the full production.
Build Your Setup with AX Store
Explore computers, displays and accessories for your workspace at AX Store. For help choosing the right model or checking an accessory, contact AX Store.
THE DETAILS
Technical specifications

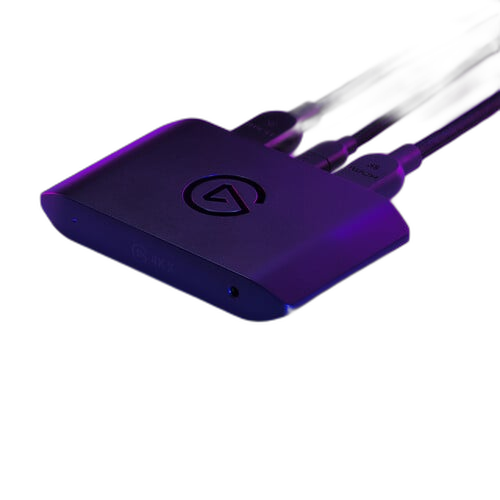

Connections
USB 3.2 Gen 2 Type-C, 10Gbps
HDMI 2.1, unencrypted
HDMI 2.1 passthrough
3.5 mm TRS stereo line-in
Capture and passthrough
2160p144; 1440p144; 1080p240
2160p30; 1440p60; 1080p120
Windows only
Up to 2160p144, 1440p240, 1080p240; VRR and HDR10
Up to 4K120 passthrough on displays using Display Stream Compression
USB 3.2 Gen 2 10Gbps; compatible source, display and software
Physical and included items
112 × 72 × 18 mm
91 g
Game Capture 4K X, USB 3.2 C-to-C cable (1.5 m), 8K HDMI cable (2 m)
