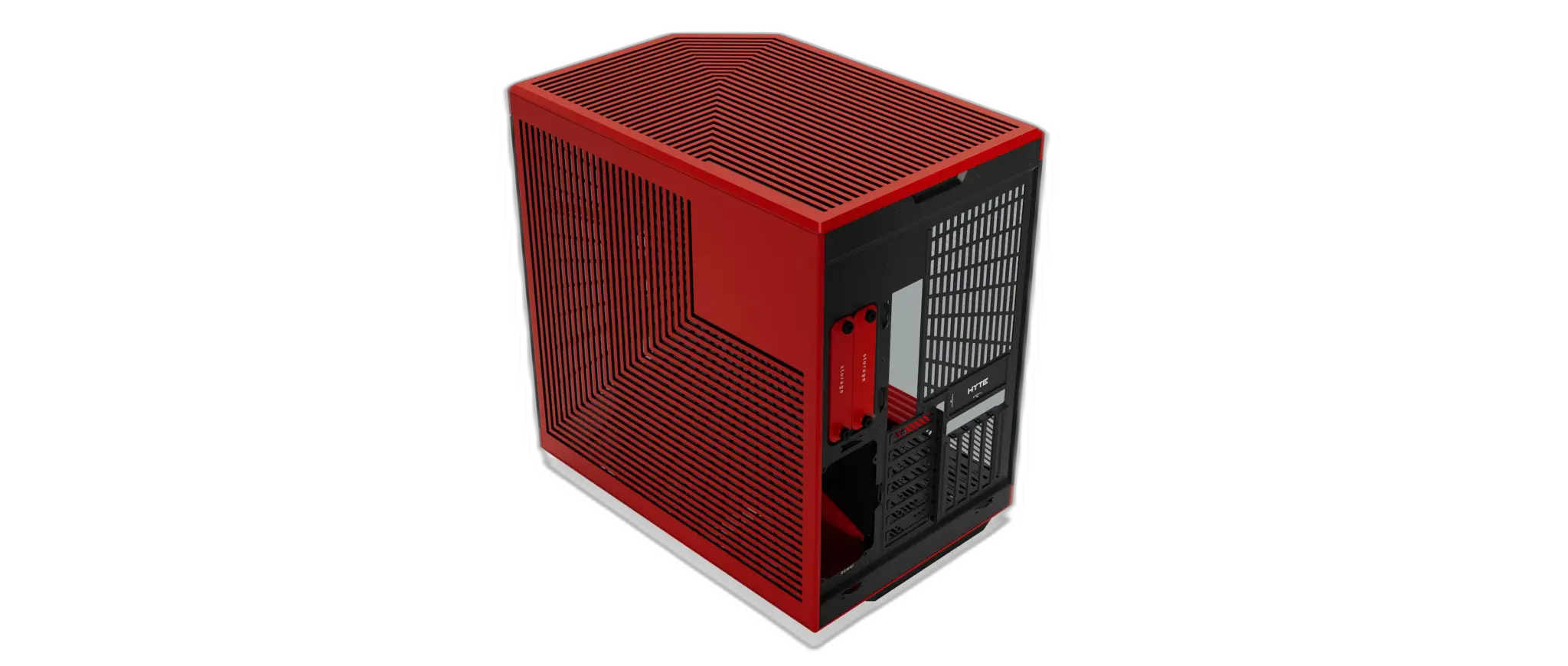

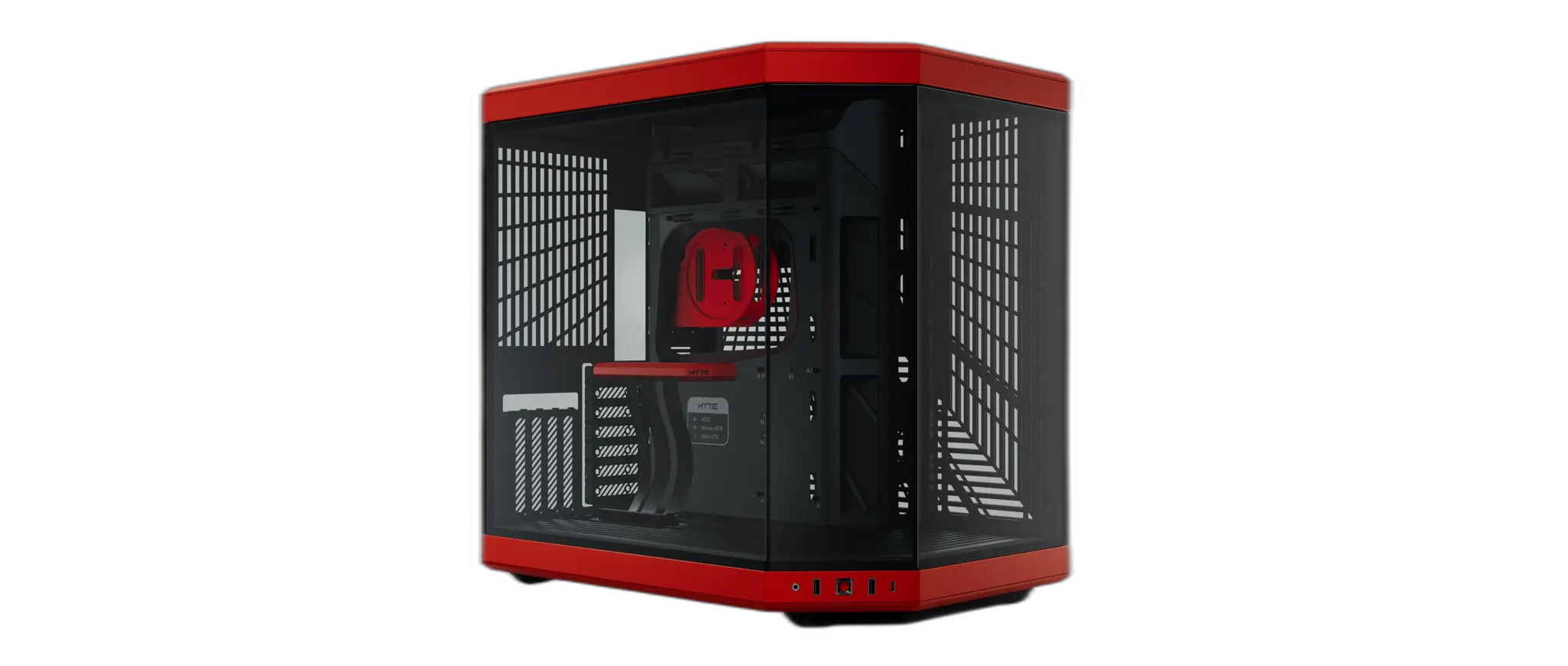

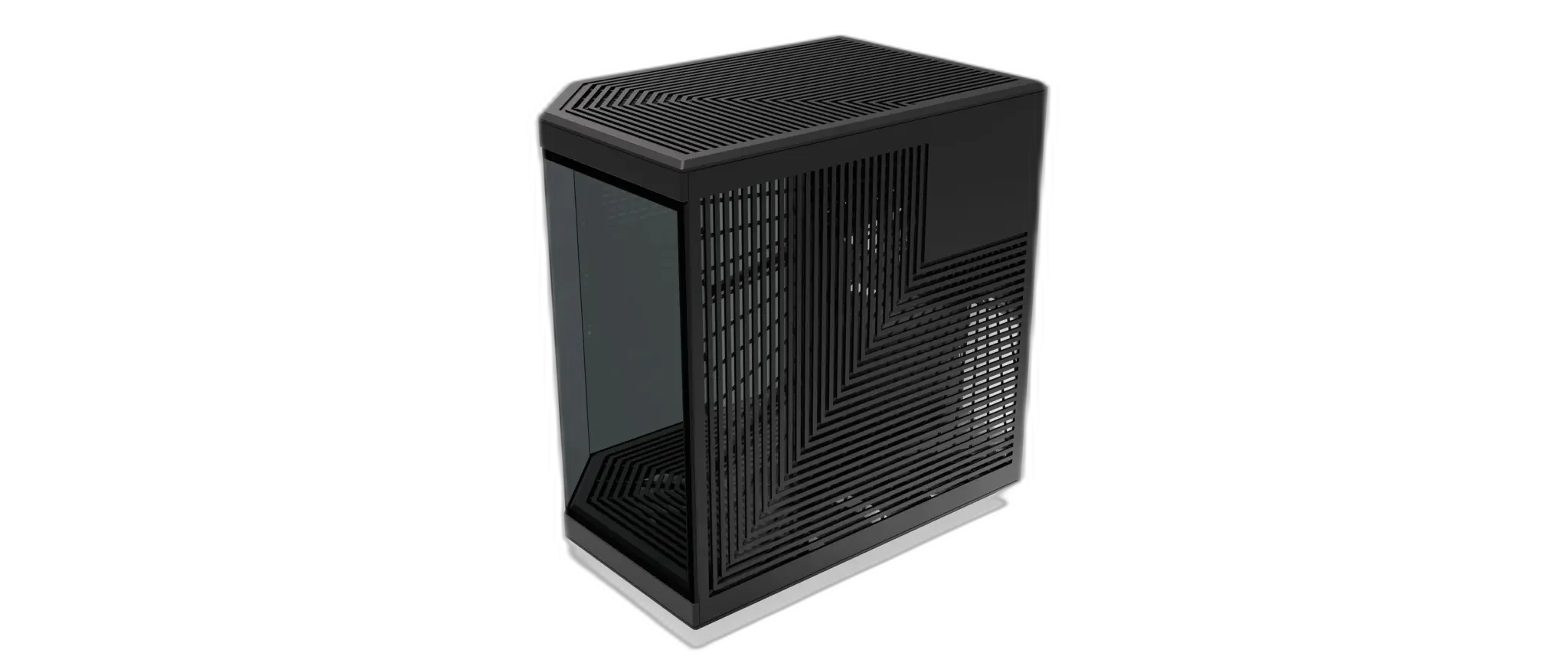

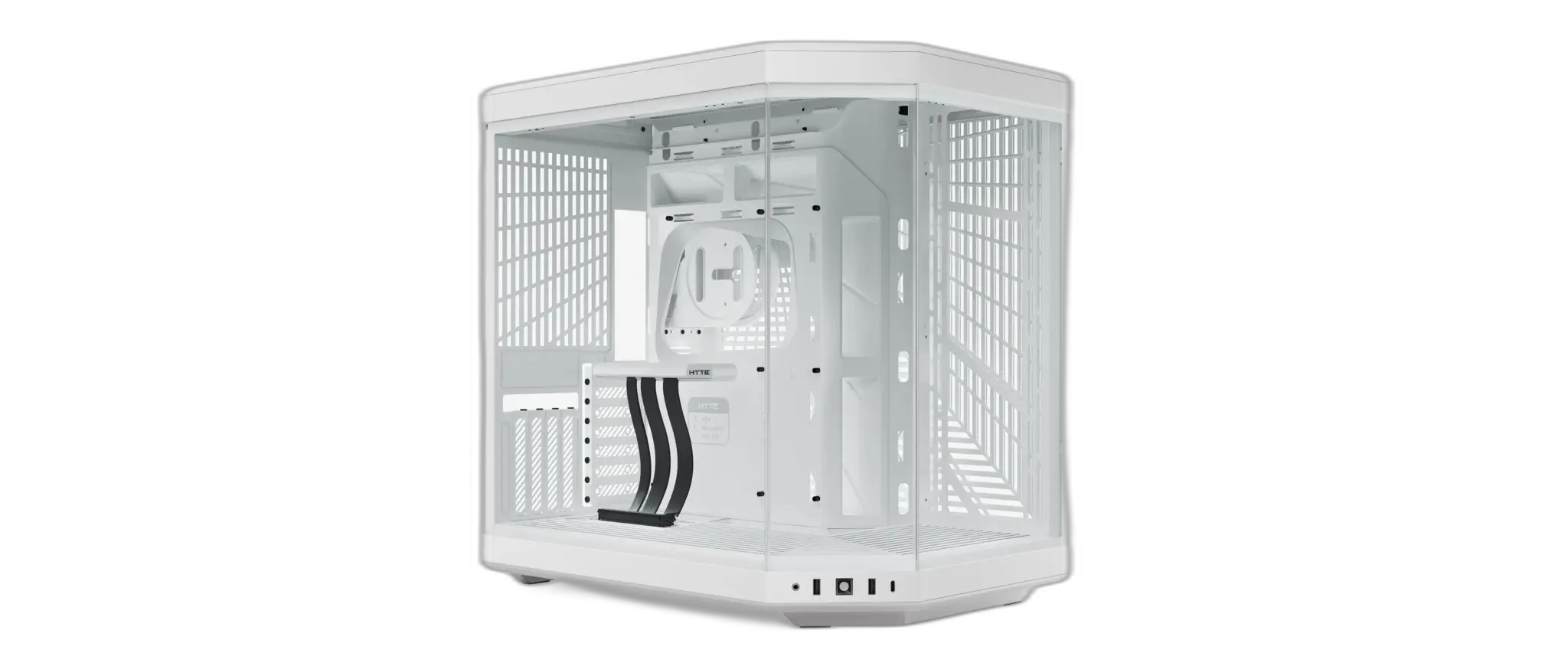

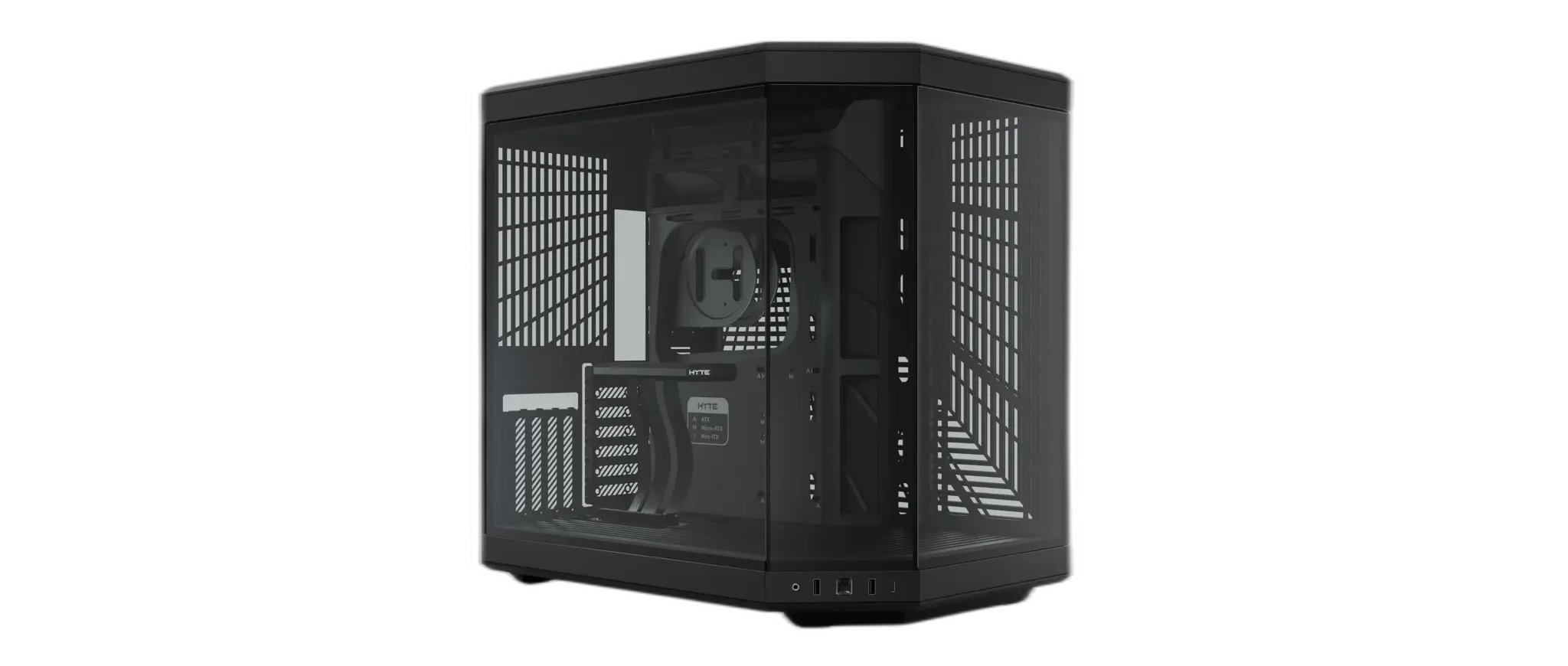

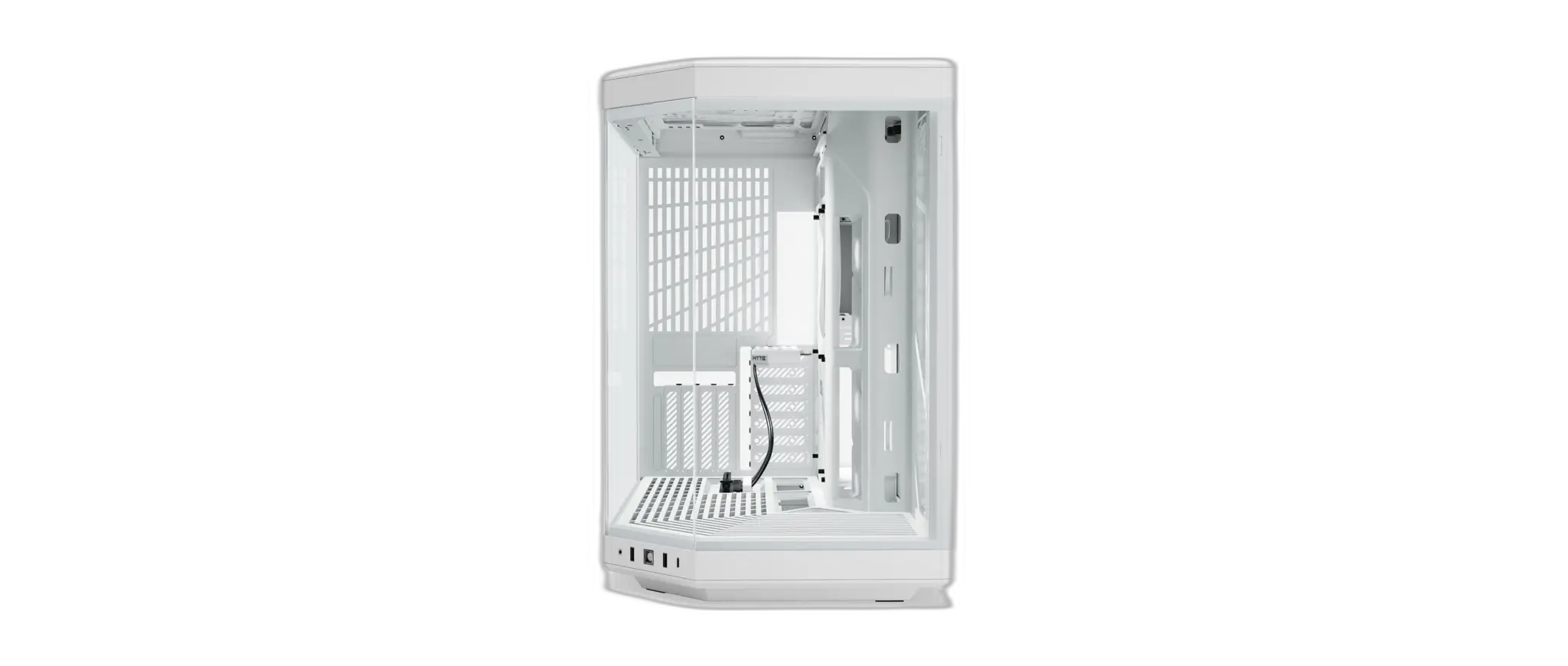

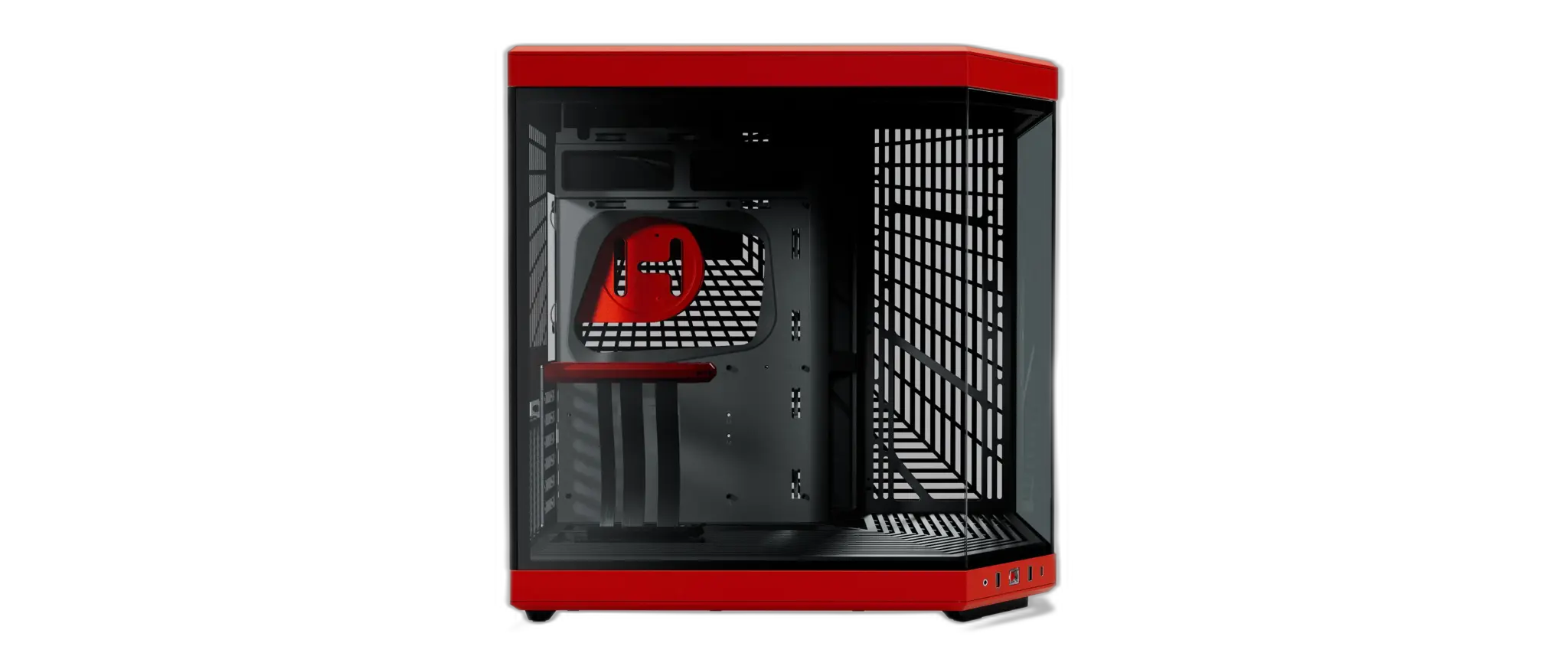

HYTE Y70 Modern Aesthetic Mid-Tower with Tempered Glass
HYTE Y70 combines panoramic glass with a four-slot vertical graphics-card position and a supplied PCIe 4.0 x16 riser. The separate rear chamber organises power, storage and cables, while large top and side radiator positions support the cooling layout.
Color
Regular price
71.500 KWD
or 4 payments of 17.875 KWD with
Pay with card & save
67.900 KWD
Save 3.600 KWD
Overview
HYTE Y70
HYTE Y70
HYTE Y70 combines panoramic glass with a four-slot vertical graphics-card position and a supplied PCIe 4.0 x16 riser. The separate rear chamber organises power, storage and cables, while large top and side radiator positions support the cooling layout. Explore this model at AX Store in Kuwait.
4-slot vertical
GPU presentation
PCIe 4.0 x16
Riser included
422 mm
GPU length clearance
Dual chamber
Interior layout
The Case Design
Three-piece panoramic glass keeps the main hardware visible across the case’s open display corner. The dual-chamber body measures 470 × 320 × 470 mm, with power, storage and cable routing behind the motherboard area. Tool-free top and side access makes the installation areas reachable during assembly.
Supplied Cooling and Lighting
The lower cooling area supports three 120 mm or two 140 mm fans up to 32 mm thick, directing intake toward the vertical graphics card. Additional side, top and rear fan positions let the cooling layout follow the hardware. Select the required fans and their control arrangement separately.
Radiator and Fan Mounting
The side supports a radiator up to 360 mm within the documented 125 mm clearance, while the adjustable top bracket supports a 360 mm radiator within its 68 mm allowance. Check the full radiator-and-fan assemblies and adjacent components together. Lower fan positions and a rear 120/140 mm position complete the available airflow arrangement.
Component Clearance
The case supports E-ATX, ATX, Micro-ATX and Mini-ITX motherboards. GPU length clearance reaches 422 mm and thickness reaches 105 mm, with 180 mm CPU-cooler height clearance. The supplied PCIe 4.0 x16 riser serves the vertical card position, while additional expansion positions are intended for half-height cards.
Access, Storage and Routing
The rear chamber supports an ATX PSU up to 235 mm long and storage arranged as two 3.5-inch drives or four 2.5-inch SSDs. Rear-ejecting storage sleds provide drive access, while grommets, routing channels, fastening points and straps guide the cables behind the visible hardware and away from the cooling components.
Exterior dimensions
470 × 320 × 470 mm
Volume
70.7 L
Included riser
PCIe 4.0 x16
Connections and Control
Front I/O provides two USB-A 3.2 Gen 1 ports, USB-C 3.2 Gen 2 and a combined audio connection. Top, side and bottom filtering supports cleaning around the intake paths. Match the internal leads to suitable motherboard headers and leave access around the floating drive sleds and removable case panels.
Plan the Component Clearances
Check motherboard format, graphics-card length, cooler height and radiator positions together. Allow space for the power supply and cable routing before selecting the rest of the build. Compare related options such as LIAN LI O11 Dynamic EVO XL Full Tower Case or XIGMATEK Aquarius S Mid Tower Case, keeping the exact model and configuration in the decision. For the wider setup, explore LIAN LI UNI FAN TL LCD FLEX Reverse Blade Wireless 120mm ARGB Fan - 1 Pack and check the connection, size or mounting requirements before pairing accessories. Browse the Hyte range at AX for more choices.
HYTE Y70 Setup Choices
Check motherboard format, graphics-card length, cooler height and radiator positions together. Allow space for the power supply and cable routing before selecting the rest of the build. Explore Corsair RMe Series RM750e Fully Modular Low-Noise Power Supply, Corsair iCUE SP120 RGB ELITE Performance 120mm Triple Fan Pack.
Frequently Asked Questions
Which motherboard formats fit?
E-ATX / ATX / Micro-ATX / Mini-ITX.
What graphics-card length is supported?
422 mm.
What graphics-card thickness is supported?
105 mm.
What CPU-cooler height is supported?
180 mm.
Is a PCIe riser supplied?
PCIe 4.0 x16.
Which top radiator sizes fit?
Up to 360 mm; check specified 68 mm allowance against complete assembly.
Which front connections are available?
2 × USB-A 3.2 Gen 1; USB-C 3.2 Gen 2; combined audio.
Build Your Setup with AX Store
Explore computers, displays and accessories for your workspace at AX Store. For help choosing the right model or checking an accessory, contact AX Store.
Compare HYTE Y70 TOUCH INFINITE 14.5 Inch IPS Touchscreen Case. Match the exact model, connection and configuration to your setup.
THE DETAILS
Technical specifications
Case Hardware
HYTE Y70
Mid Tower
E-ATX / ATX / Micro-ATX / Mini-ITX
470 × 320 × 470 mm
70.7 L
PCIe 4.0 x16
4 full-height vertical slots; additional half-height card positions
422 mm
105 mm
180 mm
235 mm
Up to 360 mm; check specified 68 mm allowance against complete assembly
Up to 360 mm; check specified 125 mm allowance against complete assembly
3 × 120 mm or 2 × 140 mm; up to 32 mm thick
2 × 3.5-inch HDD or 4 × 2.5-inch SSD
2 × USB-A 3.2 Gen 1; USB-C 3.2 Gen 2; combined audio
